The FU20F can also be mounted using
one of the optional quick-removal adapters
(/NSS, /NTI, /BSS or /BTI). For a detailed
description of these adapters see Sections
4 and 7 of this Instruction Manual.
1 Apply Teflon tape to the threaded end of
this adapter;
2 Install the adapter in the process
connection. Tighten the adapter using a
wrench on the adapter flats.
Note: DO NOT over tighten the adapter to
prevent damage;
3 Apply Teflon tape to the appropriate
threaded end of the sensor;
4 Place the O-ring and screw the mating
part of the adapter on the sensor;
5 Mount the sensor in the adapter, making
sure that the O-ring seals properly;
6 Hand-tighten the adapter nut.
Other mounting examples of the FU20F are
given in Figure 7 and Figure 8.
1 2
3
4
5 6

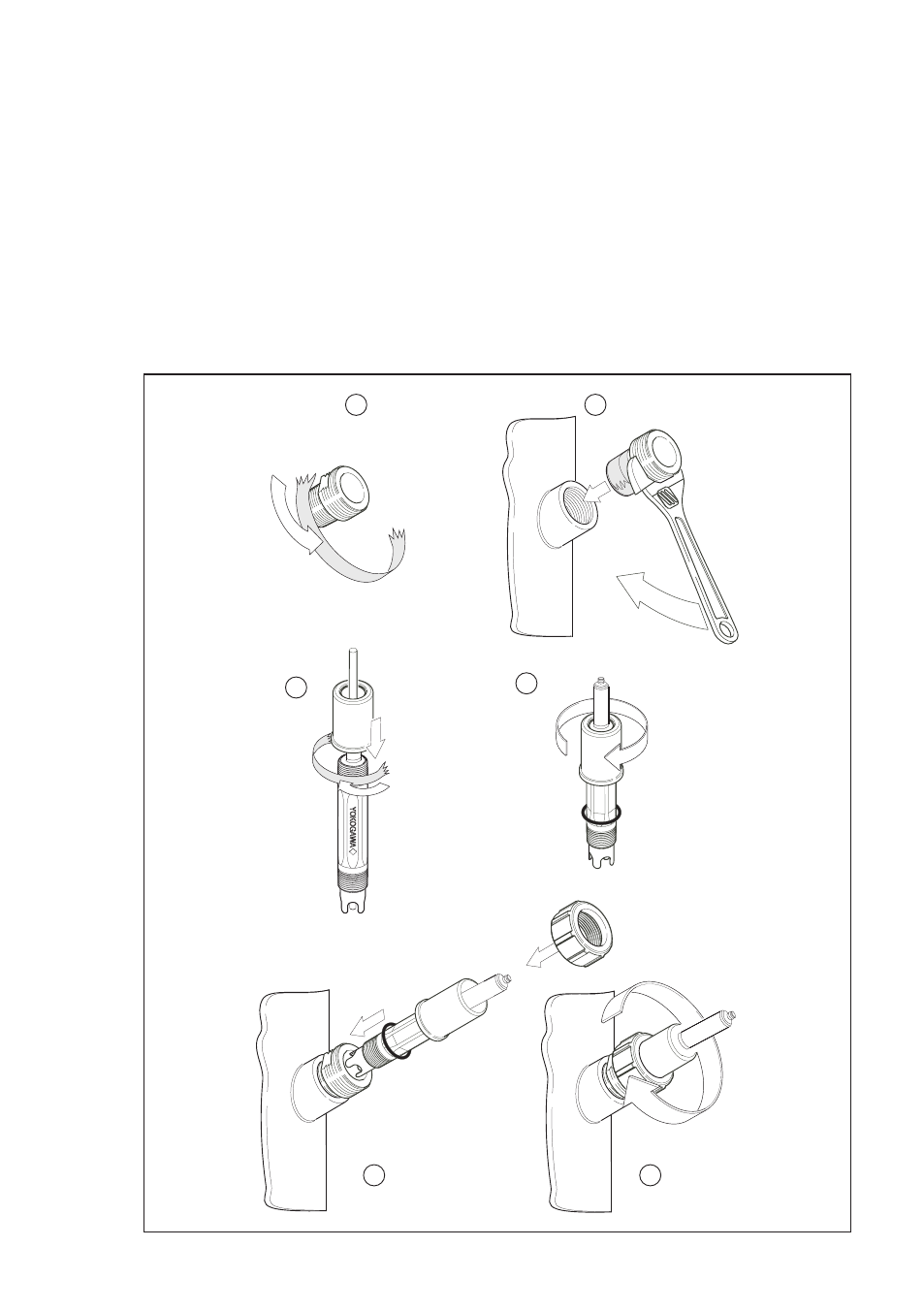

Figure 6: Mounting of sensor with option /NSS, /NTI, /BSS or /BTI
