Aquatic AI31AIR6636TO - Manual

SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;
Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324

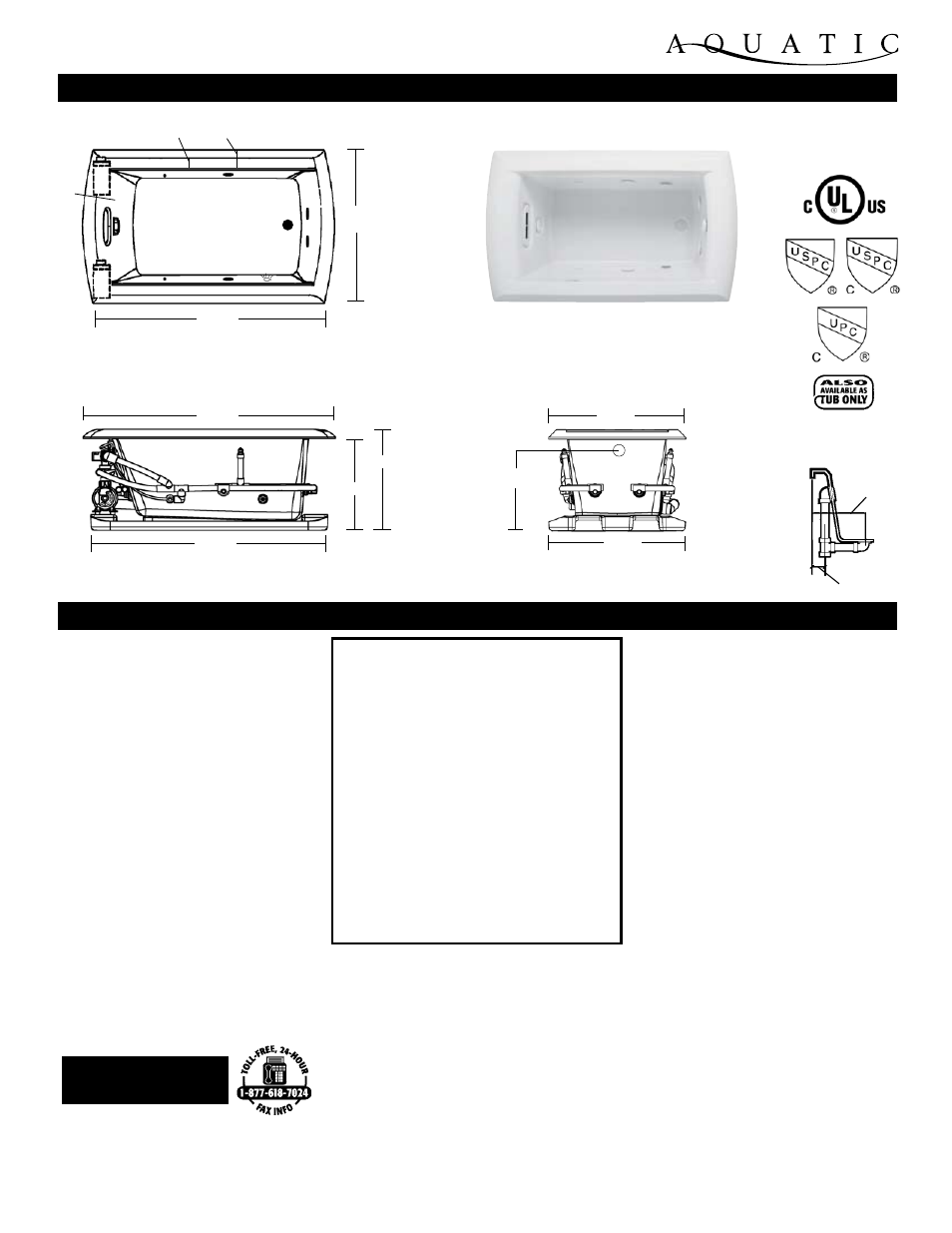

Rough-In Plumbing
Measurements
CENTury SErIES
Model # AI6636RC49 / AI31AIR6636To (Tub only)
CENTury 49 MOTIF
GeneRal SPecIfIcatIonS:
Tub Size 66 1/2” x 36 3/4” x 25”
169 cm x 93.3 cm x 63.5 cm
Bathing Well 40” long
19 1/2” wide
23” interior depth
Maximum Water Depth 18”
Shipping Weight
208 lbs. / 94 kg
Tub Weight Filled 779 lbs. / 353 kg
Tub Only Weight 102 lbs. / 44 kg
Weight w/Equipment 146 lbs. / 66 kg
Gallons to Overflow 76 gal. / 288 L
Gallons to Operate 57 gal. / 216 L
electRIcal SPecIfIcatIonS:
Pump 2 HP; 11 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Inline Heater 1.5 kW; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
•
Comfort Pillow -- Oval or Rectangle
•
Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Bolt-On Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel, or Oil Rubbed Bronze
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color
Matched (Bone, White and Biscuit only)
• Hand Held Jet - Chrome or Polished Brass
•
Optional Pump Location
• Remote Pump Location
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
8 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 Pressure Plus Hydrotherapy Jets
- 1 Recessed Rotary Massage Jets
- 1 Recessed Fan Jet
aquatic quality features:
- 2 HP, 3-Speed Run-Dry Pump
- Bath-side Electronic Control Panel
- Chromatherapy LED Lighting
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”
anti-Vibration Pump mount for Quiet Pump operation
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent rigid PVC Piping for optimum sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
fax-on-demand
document # 1290
36 3/4”
5 1/2”
13 1/2”
Deck Width
2 1/2”
Total
Width 5”
Back
Angle
19˚
20 1/2”
66 1/2” 36 3/4”
22 1/4”
25”
62 1/4”
January 2008
63 1/2” 33 3/4”
