INSTALLATION INSTRUCTIONS
Installation:
1. Remove front cover of enclosure.
2. Drill holes through back of enclosure for mounting hardware using the pre-molded pattern. (If
needed, create a suitable pattern for drilling). After holes are drilled, use them as a template for
holes in mounting surface and drill accordingly. .
3. A wiring access hole must be added to the enclosure anywhere along the top, bottom, back or sides
of the rear enclosure section. If conduit is to be used, use a chassis punch to match the required
fitting size.
4. Remove any chips and burrs from enclosure.
5. Secure enclosure to mounting surface
6. Wire unit as shown in fig.1.
WARNING: To prevent fire or shock hazard turn off supply
power sources before making connections. Comply with all local building codes and
ordinances.
7. Re-install front cover of enclosure
Please contact your local representative or TOXALERT INTERNATIONAL, INC.
for servicing.
Ordering information:
Part # Description
ODRAP – 24 Remote Alarm Panel for 24vdc input alarm signal (with purge switch).

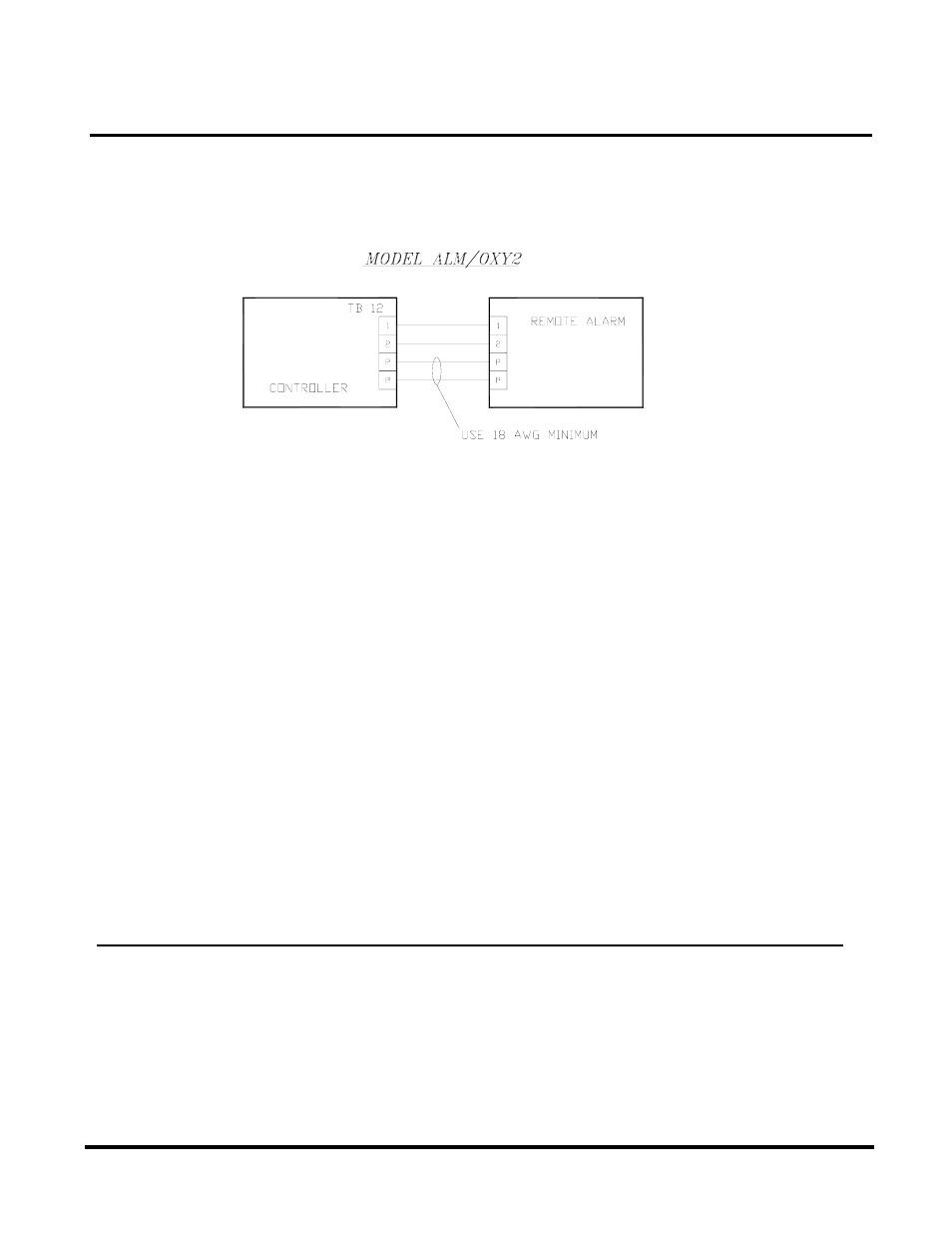

TYPICAL WIRING DIAGRAM
Fig. 1
