OXYGEN DEPLETION REMOTE ALARM PANEL MODEL ODRAP – 24

USED IN TYPICAL APPLICATIONS SUCH AS:

GENERAL DESCRIPTION:
TOXALERT’S Oxygen Depletion Remote Alarm Panel, when used in conjunction with an oxygen
depletion or other monitoring system, can provide alarm signaling (audible alarm with visual indication)
in separate areas where remote alarm indication is needed. It provides warning of possible problem
situations, such as leakage of refrigerant or other gases, and oxygen depletion. It is therefore also useful
in preventing entry into or occupancy of an area where a hazardous condition may exist, and allows for
remote actuation of a purge fan. The Oxygen Depletion Remote Alarm Panel can be used in conjunction
with systems furnished by TOXALERT INTERNATIONAL, Inc., or integrated into any other control
system.

TOXALERT INTERNATIONAL, INC., P.O. BOX 159, MOUND, MINNESOTA 55364 ● 952/472-4541 ● FAX 952/472-4960

Visit our website @ www.toxalert.com

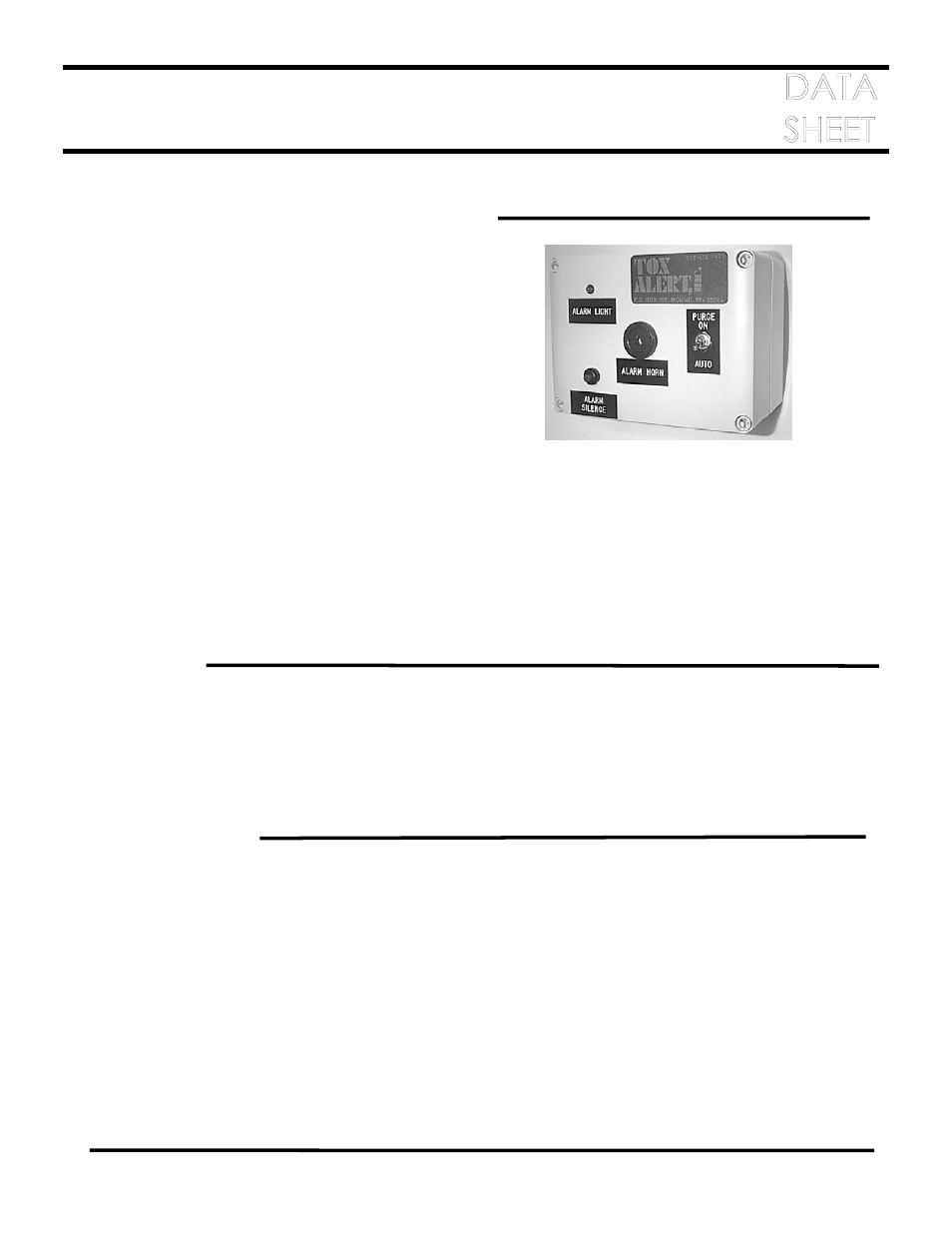

FEATURES:
Compact Nema 1 Enclosure

Audible

Alarm

Visual Indicator
Resettable pushbutton silence
Purge Switch

SPECIFICATIONS:
Alarm functions:

Mechanical Rooms
Industrial Chemical Plants
Compressed Gas Storage
Refrigerated Warehouses
Confined Spaces
Medical Facilities

Alarm horn with push button silence, 3.5kHz tone @ 95 dB, red LED indicator,

Purge switch for remote ventilation control.
Input Power:
24 VDC signal from controller, 12.5mA max
Operating:
Temperature: -68°F to 140°F (-56°C to +60°C)

Relative Humidity: 5 to 95% non-condensing

Enclosure:

Dimensions - 6.63” x4.67” x 3.64” (168.4mm x 118.5mm x 92.4mm)

Weight:

2.2

lbs

Type - Nema 1

Material - Gray polycarbonate

TOXALERT

™
