INSTALLATION INSTRUCTIONS

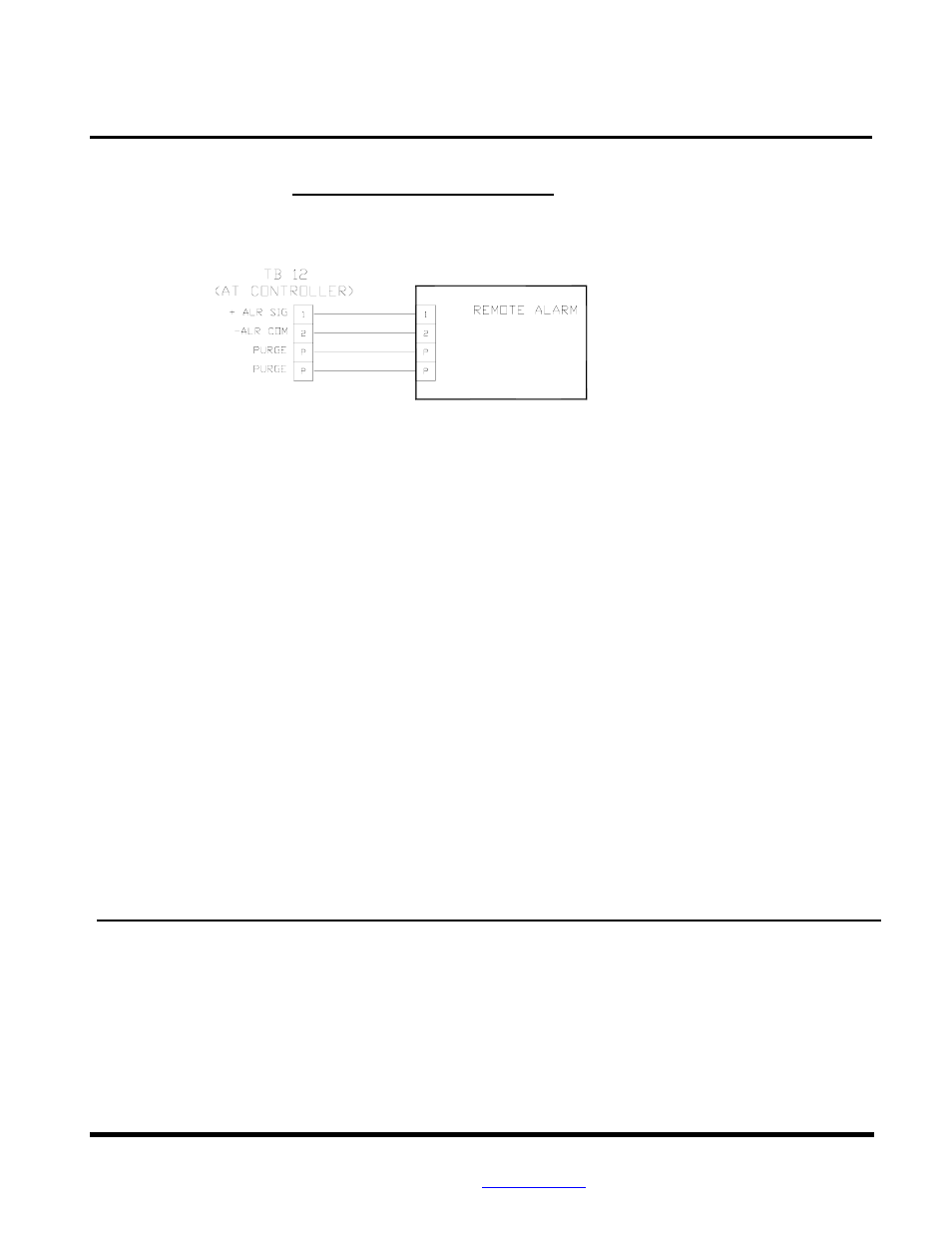

TYPICAL WIRING DIAGRAM

RRAP Revised 3/06

Installation:
1. Remove front cover of enclosure.
2. Drill holes through back of enclosure for mounting hardware (not included) using the pre-molded

pattern. (If needed, create a suitable pattern for drilling). After holes are drilled, use them as a
template for holes in mounting surface and drill accordingly. .

3. A wiring access hole must be added to the enclosure anywhere along the top, bottom, back or sides

of the rear enclosure section. If conduit is to be used, use a chassis punch to match the required
fitting size.

4. Remove any chips and burrs from enclosure.
5. Secure enclosure to mounting surface
6. Wire unit as shown in fig.1.

WARNING:

To prevent fire or shock hazard turn off supply

power sources before making connections. Comply with all local building codes and
ordinances.

7. Re-install front cover of enclosure

Please contact your local representative or TOXALERT INTERNATIONAL, INC.
for servicing.

Part #

Description

RRAP – 24

Remote Alarm Panel for 24vdc input alarm signal.

Fig. 1
