• Input Power: 12 VDC; 360 mA
(provided from control unit).
• Sensor Output: 0 to 5 VDC (non linear);
on at a nominal 4 VDC and off at 0 VDC.
• Environmental: Operating-
Temperature: -4˚ F to 122˚ F
(-20˚ C to 50˚ C)
Optional: -20˚ F to 122˚ F
(-28˚ C to 50˚ C)
Relative Humidity: 0 to 95% non condensing.
•
Enclosure:
Nema 1 standard (others available)
Dimensions: 7
1 / 4 ” H x 7 3 /
4
” W x 2 1 / 2 ” D
(184.15 x 196.85 x 63.5 mm)
1. INSTALLATION
Locate a mounting location away from direct
fresh air intakes, and mount vertically on wall
or support column approximently 5 to 6 feet

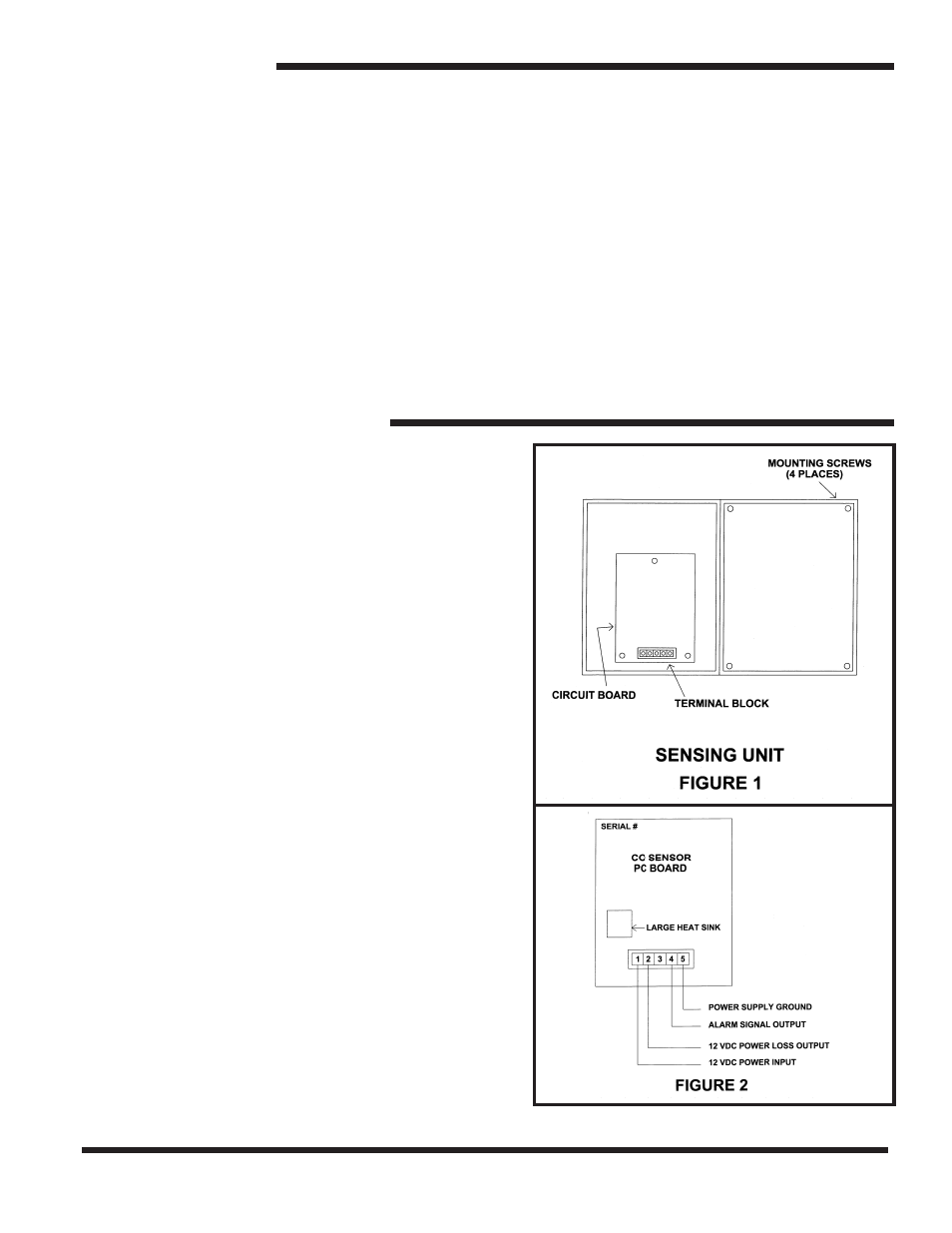

above floor. Refer to figures 1 and 2; Table 1
and 2 and installation instructions in GVU
series control unit data sheet and install the
GVU-CO sensor as follows.
2. MOUNTING SENSOR
1.) Open the door using the key provided.
Next lift off the front door by sliding it
up and off the pins of the hinges.
Put it aside.
2.) Mount base with hinge pins along left side
by using mounting holes (4 are available).
3.) A wiring access hole must be added to the base
anywhere around the bottom or right side. Do
not place an access hole on the hinge side of the
base, since, if conduit is used, this may restrict the
opening of the door. If conduit is to be used, use
a chassis punch to match the required fitting size.
4.) Remove any metal chips and burrs from enclosure.
5.) Place the cover onto the hinges of the base.
3. SENSOR WIRING
WARNING: To prevent fire or shock hazard turn
off power source to control unit before
making connections. Comply with all
local building codes and ordinances.
INSTALLATION INSTRUCTIONS:
• Electrical Connections: At marked
screw terminal strip.
•
Response Time: 30 seconds full scale.
Storage-
Temperature: -20˚ F to 158˚ F
(-28˚ C to 70˚ C)
Relative Humidity: 0 to 95% non
condensing.
Keylocking
Finish: Tan Enamel
Weight: 3 lbs. (1.3 kg)
SPECIFICATIONS:
