26

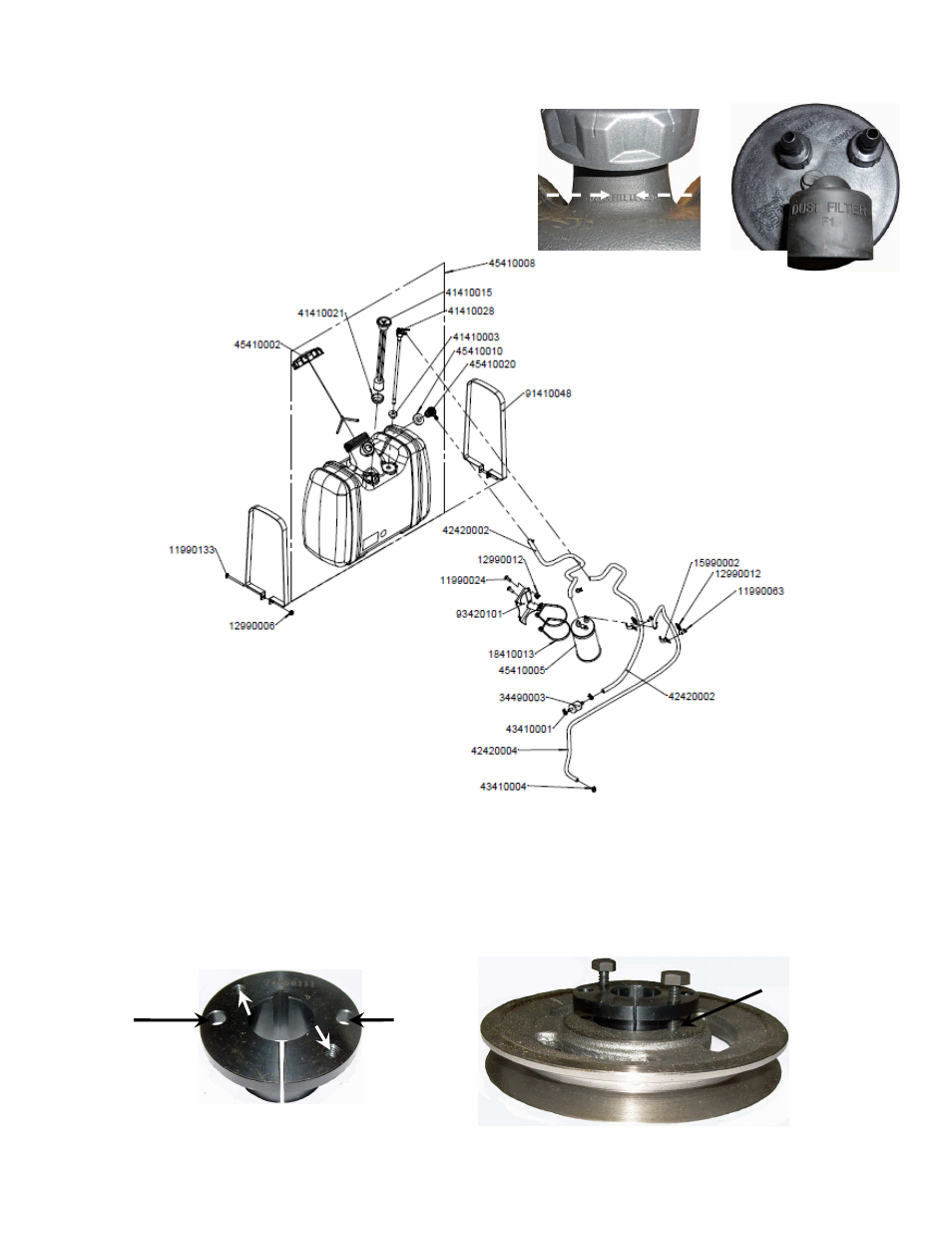

6.10 Fuel Evaporation System

All Wright Standers need to have this mandatory feature.

Do Not alter or remove.

Do Not fill past the “Max Fill Level” line shown in Figure.

Over-filling could result in clogging the roll-over vent

and/or contaminating the purge canister.

The vapor canister is located under the dash.

Inspect and clean dust filter every 500 hrs or annually.



















6.11 Spindle and Drive Pulley Split hub R&R

Remove 2, ¼” bolts from split hub and install in threaded holes in hub.

Slowly tighten each bolt, alternating as you tighten bolts against the pulley.

The hub will separate from the pulley.

Replace grade 8 bolts and install in reverse order using the assembly holes to tighten hub onto pulley and

spindle shaft.

Dust Filter

Vent /
Purge

To
Tank

Assembly

hole

Threaded

Removal

holes

Assembly

hole

Tightening will

separate the hub

from the pulley

Max Fill
