DS0 Map A and DS0 Map B Menu
The DS0 maps designate which DS0s are assigned to which port. See
Figure 5-7. There are three maps: DS0 Map A, DS0 Map B, and the Tem-
porary (Temp) map.

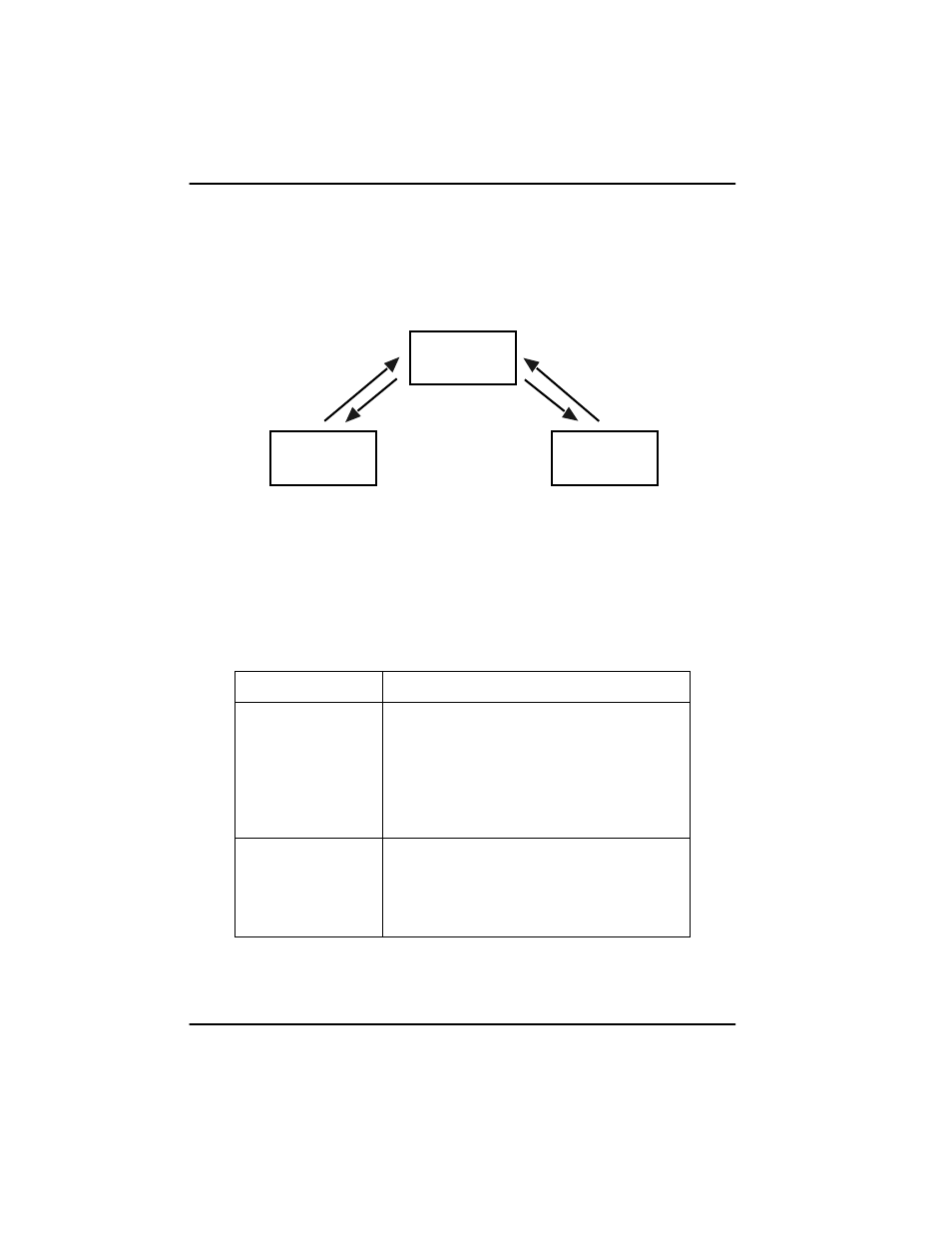

Figure 5-7. DS0 Map Designations
DS0 A and DS0 B are the current maps the TSU 600 uses.
The Temp Map generates a map before putting it into use.
You can copy DS0 A to DS0 B by copying the DS0 A map into the Temp
map. Then apply (write) the Temp map into DS0 B.
The menu items are:
COPY A >TEMP Copies the current map (A or B) into a
Temp map area.
Permits modification without disturbing
the existing map. When the modifications
are completed, the Temp map is written to
current MAP A (B) by selecting Apply.
CREATE TEMP Creates a map by defining a port or Idle for
all DS0s.
When
CREATE TEMP is first selected, all
DS0s are set to Idle. See Create Temp Exam-
ple on page 5-13 for more information.
T E M P
D S 0 A D S 0 B
