ENGLISH
ENGLISH
10
7
8
9
11
DRAIN BODY INSTALLATION

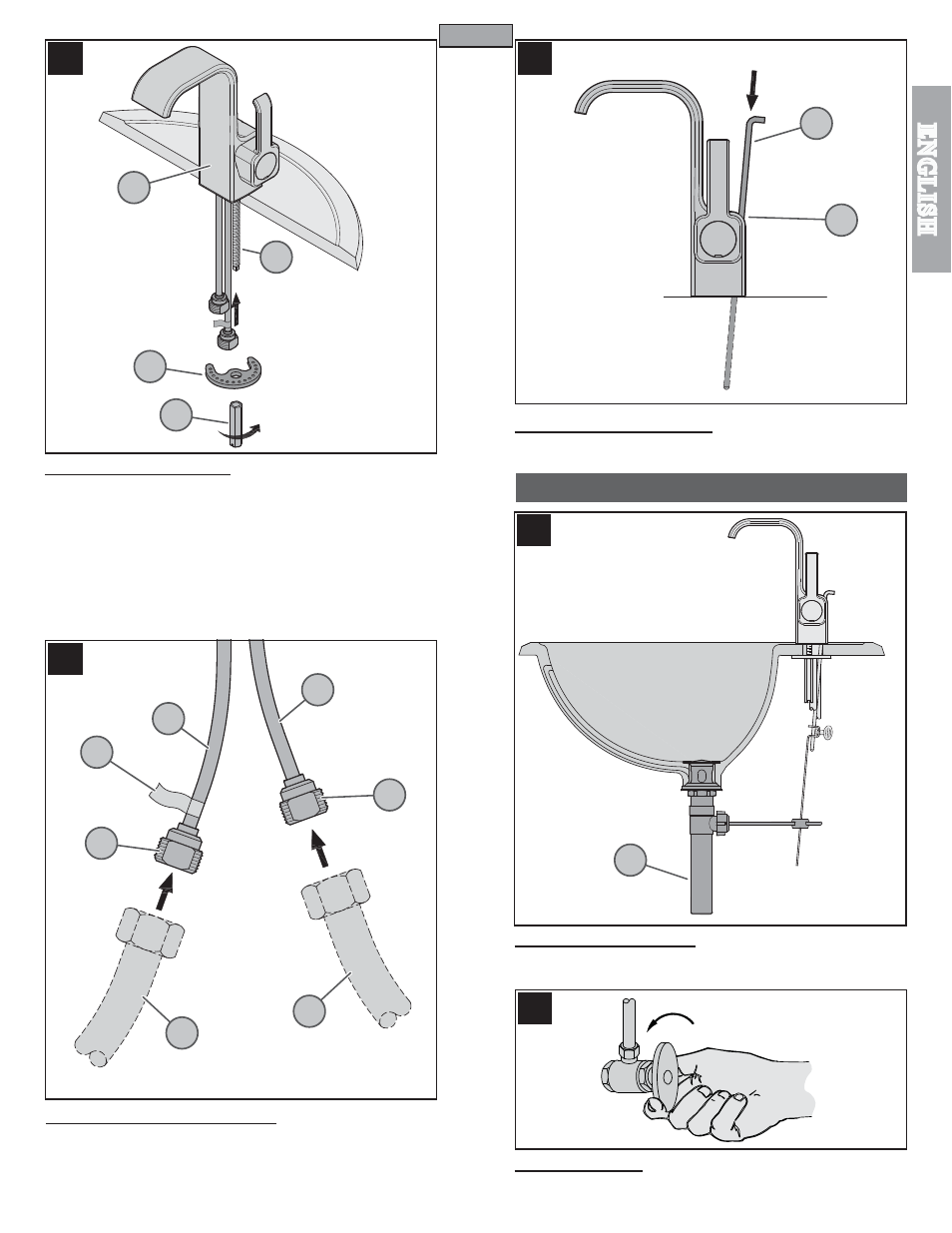

7 SECURING SPOUT BODY
From underneath sink, secure Faucet Body (7A) by placing Metal Washer (7B) and
threading Long Nut (
7 /
16
Hex.) (7C) onto Mounting Post (7D). Make sure that the bumps
on Metal Washer (7B) are facing up. Firmly hand tighten Long Nut (7C). Secure Long
Nut (7C) not to exceed a
1 / 4 turn.
Caution: Do not over tighten!
8 WATER SUPPLY CONNECTIONS
Gently separate hot and cold supply tubes (8A), approximately three inches apart.
Connect water Supply Lines (8C) to Faucet Inlets (8B). Hot water supply line goes to hot
inlet fitting indicated by red tag (8D). (Supply lines not included). Follow manufacturer’s
instructions when installing supply lines.
9 POP-UP ROD CONNECTION
Insert Pop-Up Rod (9A) on the back of Spout head (9B). Gently, slide Pop-Up Rod (9A)
down the Spout Head hole (9B)
11 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
10 POP-UP INSTALLATION
Install and adjust Pop-Up (10A) using separate instructions supplied with the Pop-Up
assembly.
3
7A
8A
8B
8C
10A
9B
9A
8D
7B
7C
7D
8A
8B
8C
HOT
COLD
