2-20 Chapter 2

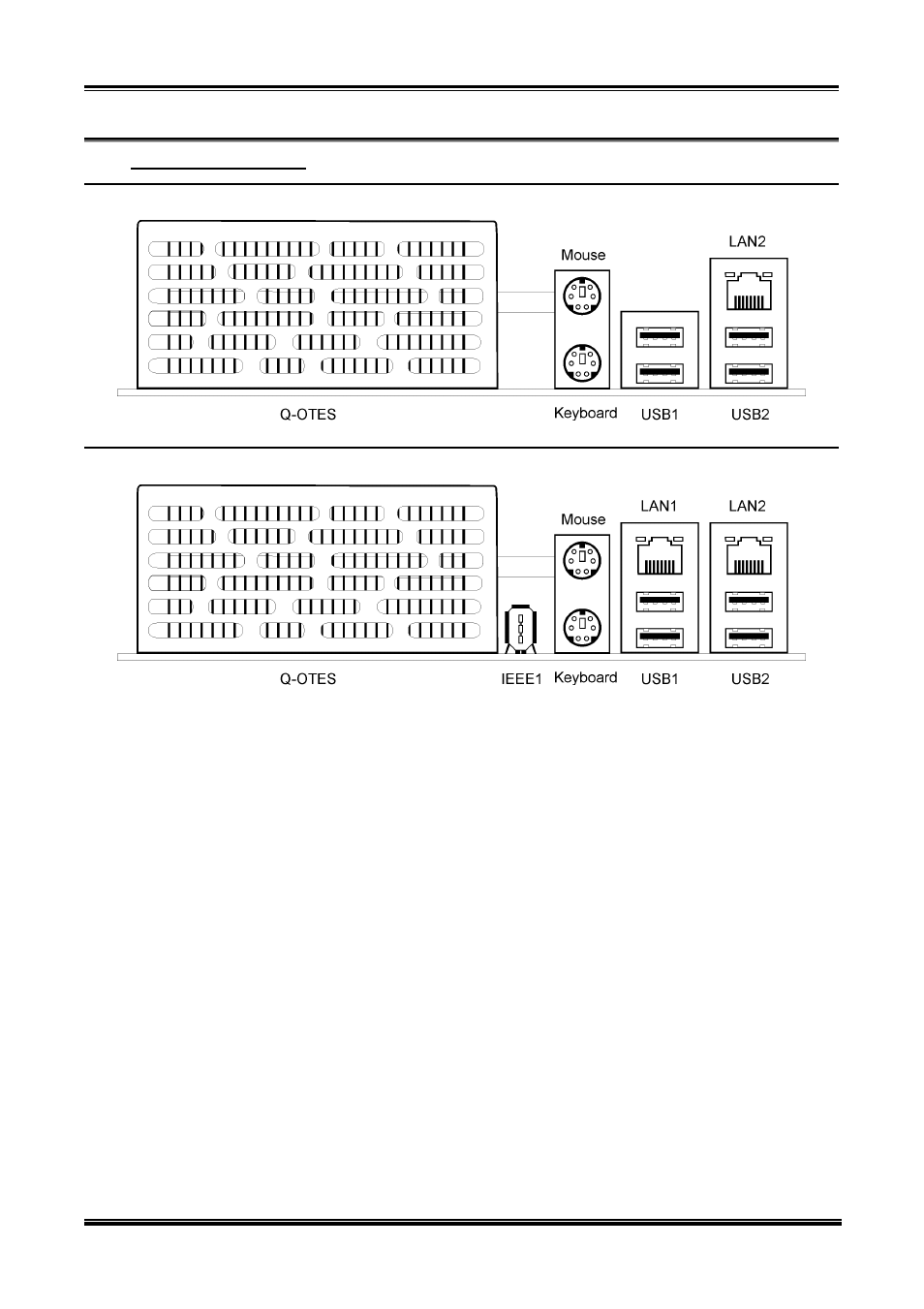

(15). Back Panel Connectors
AW8:
AW8-MAX:
• IEEE1: Connects to devices of IEEE1394 protocol. (For model AW8-MAX only)
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• LAN1: Connects to Local Area Network (For model AW8-MAX only).
• LAN2: Connects to Local Area Network.
• USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
AW8 Series
