Chapter 2

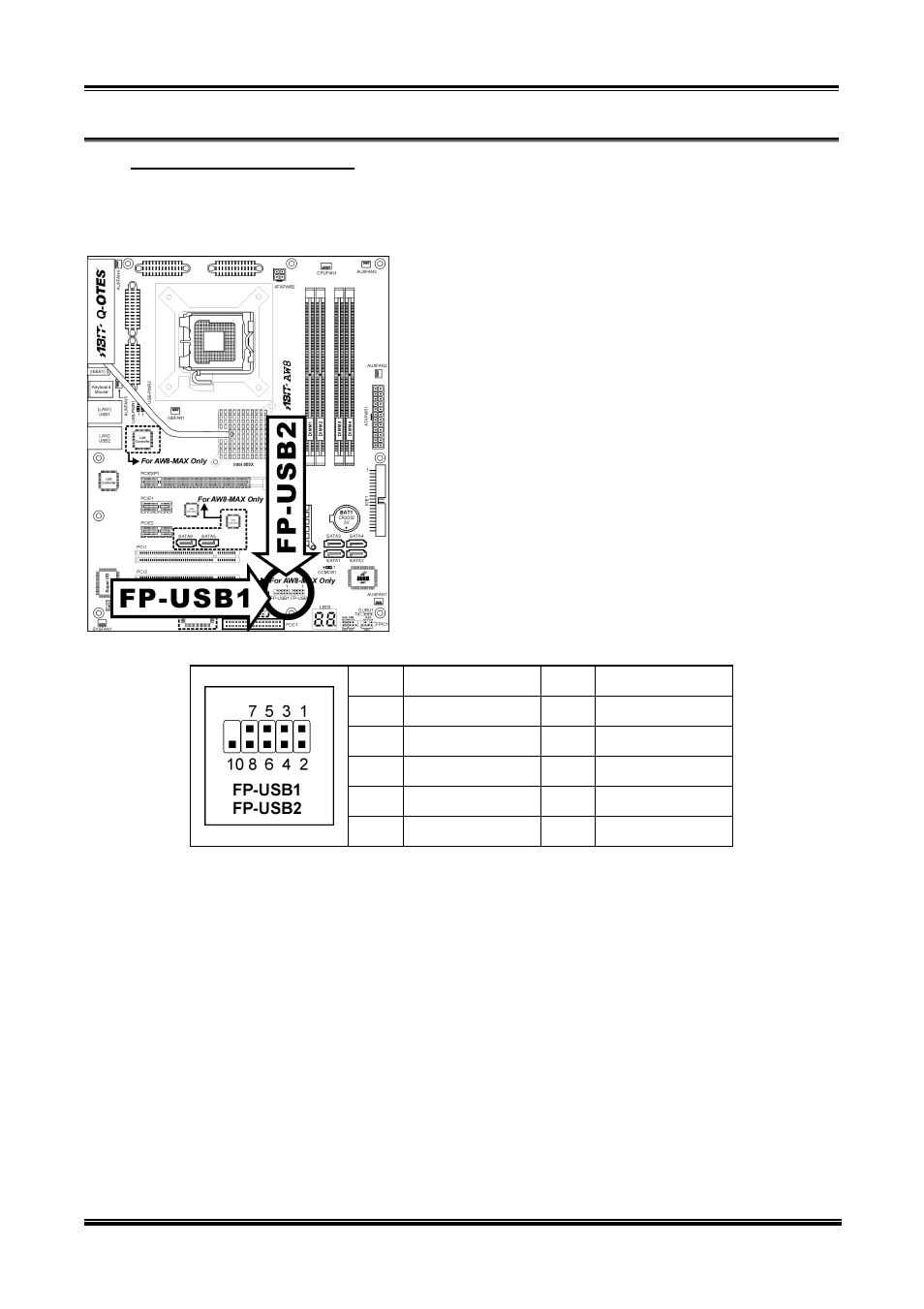

(8). Additional USB Port Headers
These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
Pin
Pin Assignment
Pin
Pin Assignment
1 VCC 2 VCC
3 Data0
- 4 Data1
-
5 Data0
+ 6 Data1
+
7 Ground 8 Ground
9 NC 10 NC
AW8 Series
