(5). Back Panel Audio Connection Slot

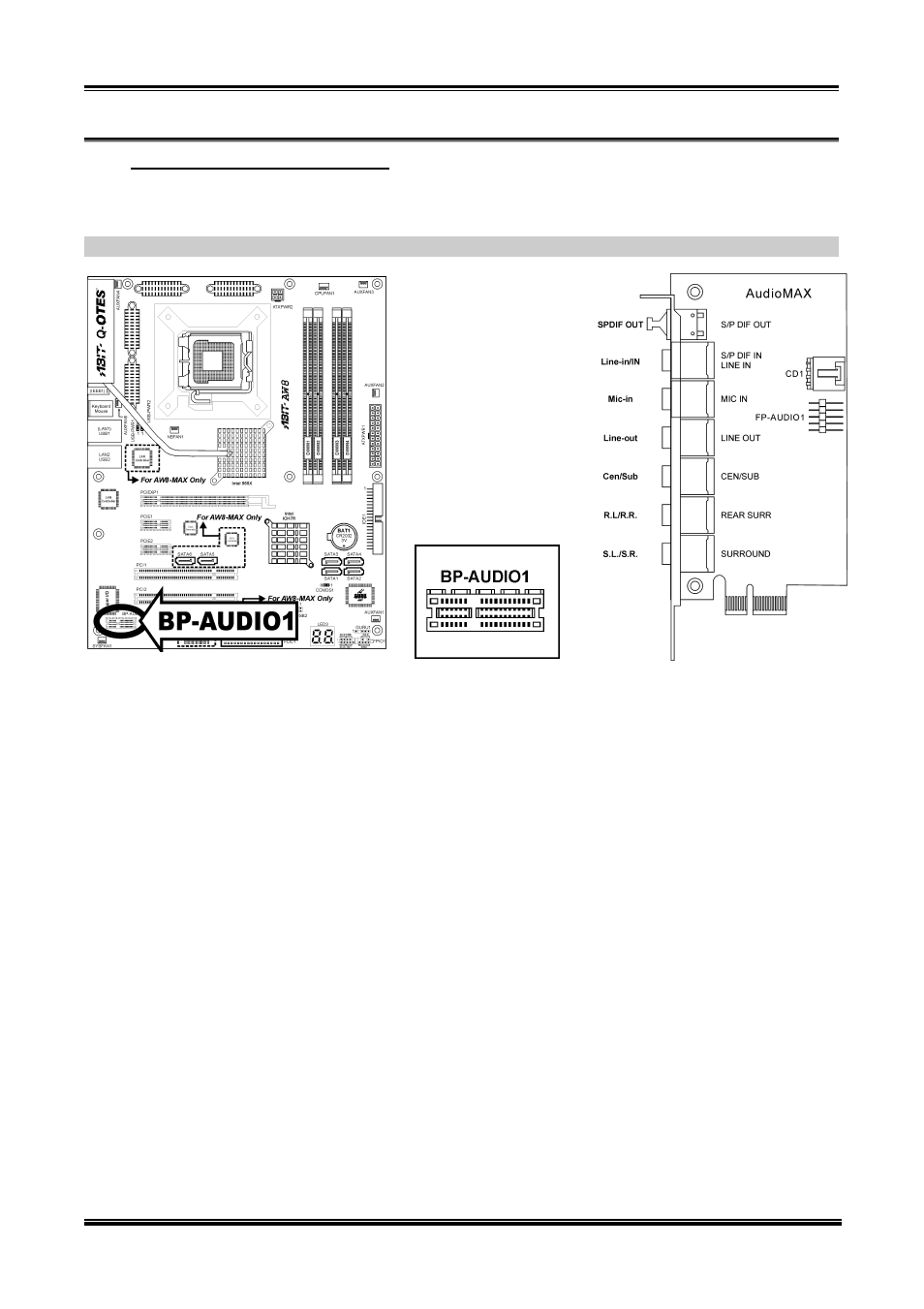

The slot “BP-AUDIO1” provides the audio input/output connection at back panel through an audio
daughter-card.
NOTE: Install this daughter-card at slot “BP-AUDIO1”.
• S/PDIF Out: This connector provides an S/PDIF-Out connection through optical fiber to digital
multimedia devices.
• S/PDIF In: This connector provides an S/PDIF-In connection through optical fiber to digital
multimedia devices.
Line-In: Connects to the line out from external audio sources.
• Mic-In: Connects to the plug from external microphone.
• Line-Out: Connects to the front left and front right channel in the 7.1-channel or regular
2-channel audio system.
• Cen/Sub: Connects to the center and subwoofer channel in the 7.1 channel audio system.
• R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel in the 7.1
channel audio system.
• S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and surround
right channel in the 7.1 channel audio system.
