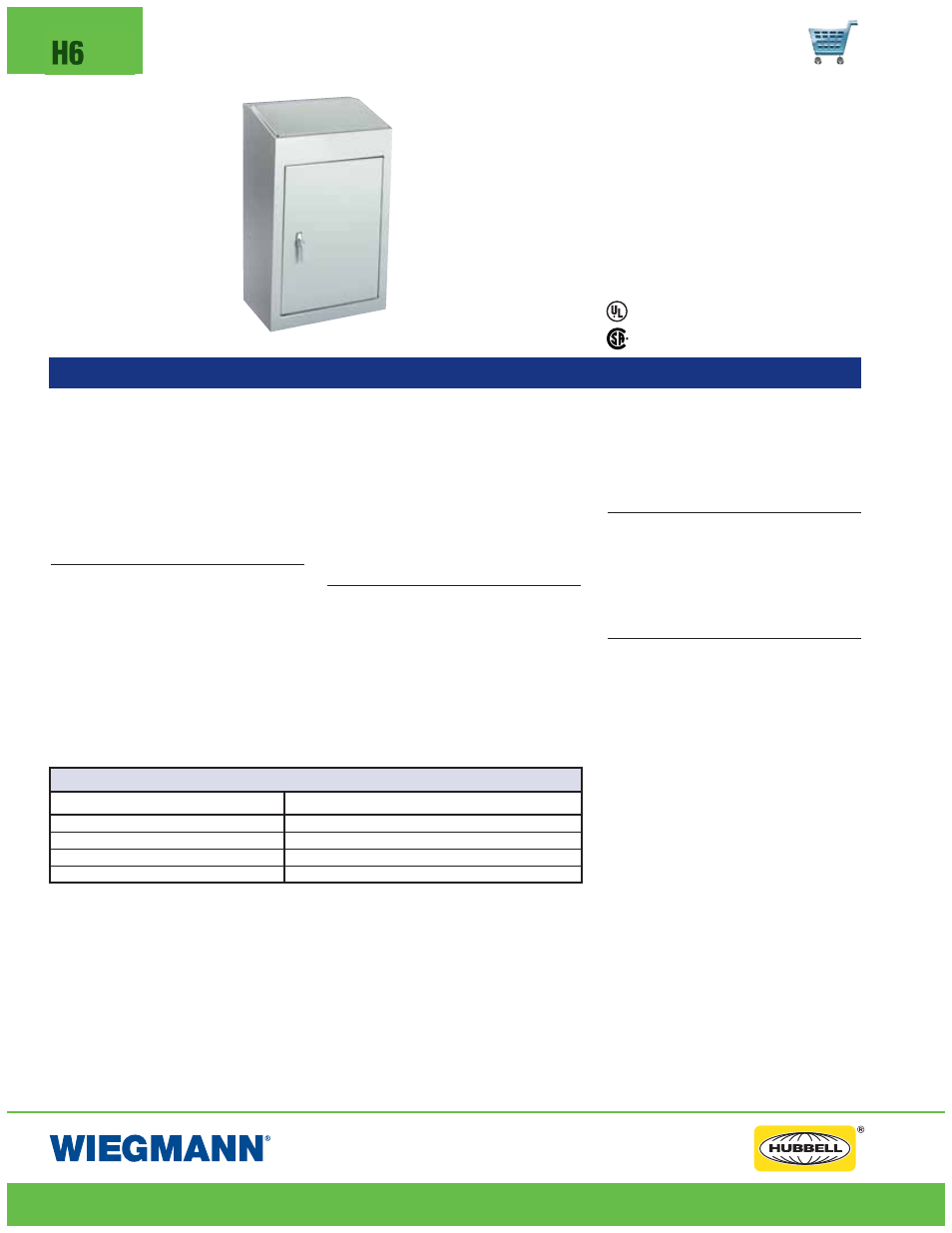

W C 1 0 S E R I E S C O N S O L E S
N E M A 1 2 O P E R AT O R I N T E R FA C E
H6
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed to hold electrical and elec-
tronic controls and instruments. Push-
buttons, pilot lights, meters, switches
etc., can be mounted on sloping
control surfaces. Interior components
can be mounted on back panel and
terminal straps. Heavy-duty construc-
tion provides protection from dirt,
dust, oil and water.
Construction —Body
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• 3-point keylocking handle is pro-
vided on front, main door
• Flush main door
• Control panels are hinged along
bottom edge
Industry Standards
UL 508, Types 12 & 13
CSA Certified, Type 12 & 13
NEMA/EEMAC Types 12 & 13
U L F i l e s E 6 4 7 9 1
C S A F i l e L L 6 6 0 7 8
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
• Controls panels have captivated
screws which thread into sealed wells
• Door stops provided to hold control
panel open
• Print pocket is provided
• Standard closed cell neoprene
gasket is provided
• Removable back panel is included
with enclosure
• Ground provisions provided
Construction —Top
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Instrument and access panels have
captivated screws which thread
into sealed wells
• Closed cell neoprene gasket
CATALOG NUMBER DESCRIPTION / SIZE
W C 1 0 B * C o n s o l e b o d y o n l y / 2 4 . 0 0 " w i d e
W C 1 0 T To p f o r W C 1 0 B
W C 1 0 W W r i t i n g d e s k f o r W C 1 0 B
W C 1 0 C C a s t e r k i t
W C 1 0 S E R I E S O P E R AT O R I N T E R FA C E C O N S O L E S
*U.L. Listed. Back panels are included with console.
NOTE: Tops, writing desks, and caster kits must be ordered separately.
Construction —Writing Desk
• Fabricated from 14 gauge steel
• Seams are continuously welded
and ground smooth
• Desks are removable and attach
easily to console front
Finish
• ANSI 61 gray polyester powder
inside and out over phosphatized
surfaces
• Included back panel is white poly-
ester powder over phosphatized
surfaces
Accessories
• See pages J1-J22
WC10B
