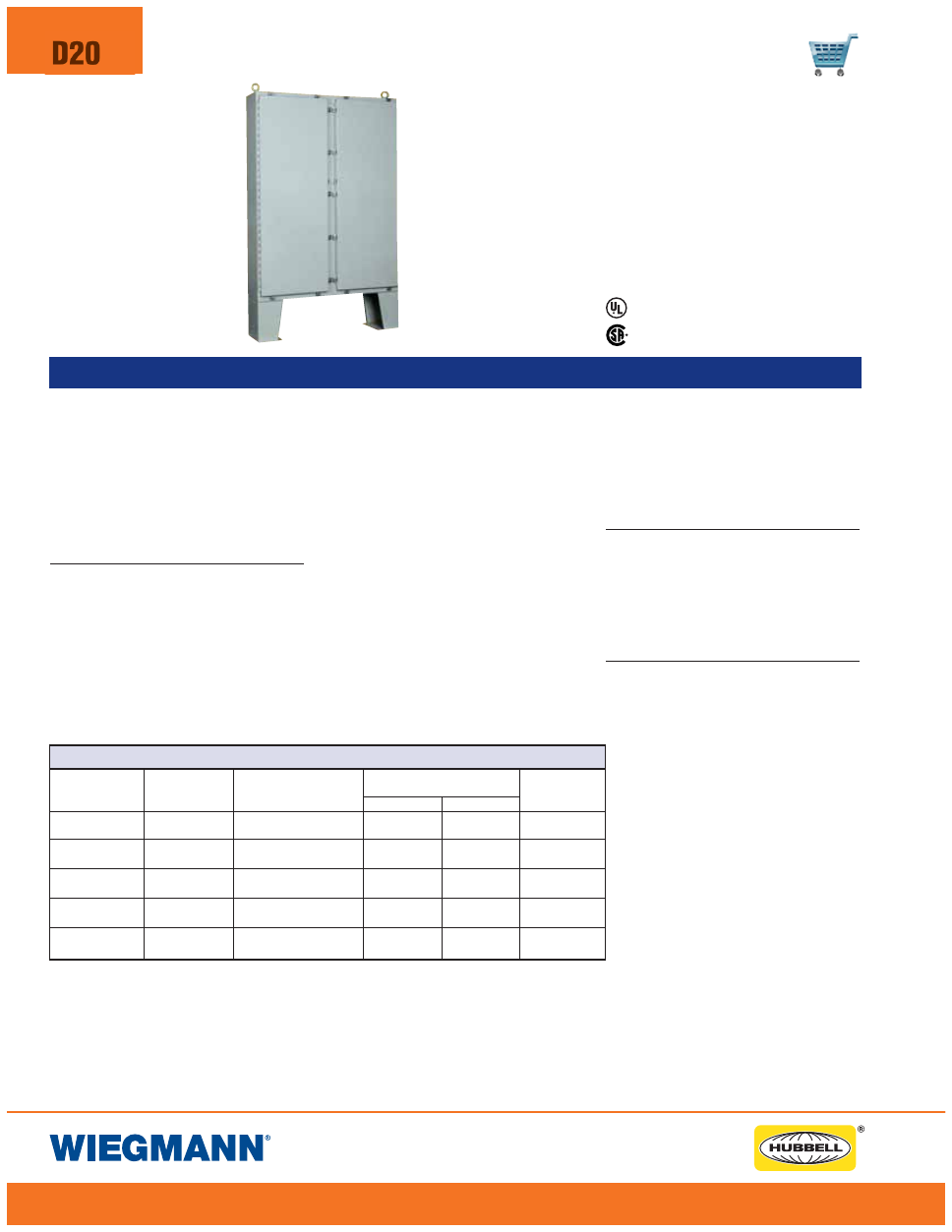

N 4 D S E R I E S E N C L O S U R E S
N E M A 4 F L O O R - M O U N T
D20
F E AT U R E S - S P E C I F I C AT I O N S
Applications
Designed to house electrical and
electronic controls, components,
and instruments in wet non-corrosive
environments. Typical applications
for these enclosures include dairies,
breweries, and other food processing
activities that may require hose down.
Enclosures are also suitable for out-
door applications.
Construction
• Bodies, doors, and floor stand feet
are fabricated from 12 and 10
gauge steel
• Continuously welded seams ground
smooth, less knockouts or holes
• X-type body stiffeners are added
for extra strength
Industry Standards
UL 508, Types 3, 4 & 12
CSA Certified, Type 3, 4 & 12
NEMA/EEMAC Types 3, 4 & 12
UL File E64791
CSA File LL66078
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
• Rolled lip around three sides of
door and along top of enclosures
opening excludes liquids and cont-
aminants from entering
• Quick and easy to operate stainless
steel door clamps around three
sides of doors are provided
• Heavy gauge continuous hinges
are provided to secure doors
• Doors are removable by pulling
stainless steel continuous hinge pin
• Hasp and staple are provided for
padlocking
• Print pocket is provided
• Standard 12" high floor kits are
welded to bottom of enclosure
• Heavy duty removable lifting eyes
N 4 D 6 2 4 8 1 0
12/12
62.12x48.12x10.12
N P D D 6 0 4 8
N P D D 6 0 4 8 G
56.00x44.00
(1578x1222x257)
(1422x1118)
N 4 D 6 2 6 0 1 2
12/12
62.12x60.12x12.12
N P D D 6 0 6 0
N P D D 6 0 6 0 G
56.00x56.00
(1578x1527x308)
(1422x1422)
N 4 D 7 4 6 0 1 2
12/12
74.12x60.12x12.12
N P D D 7 2 6 0
N P D D 7 2 6 0 G
68.00x56.00
(1883x1527x308)
(1727x1422)
N 4 D 7 4 7 2 1 2
10/10
74.12x72.12x12.12
N P D D 7 2 7 2
N P D D 7 2 7 2 G
68.00x68.00
(1883x1832x308)
(1727x1727)
N 4 D 7 4 7 2 2 4
10/10
74.12x72.12x24.12
N P D D 7 2 7 2
N P D D 7 2 7 2 G
68.00x68.00
(1883x1832x613)
(1727x1727)
N 4 D S E R I E S F L O O R - M O U N T E N C L O S U R E S
*Back panels must be ordered separately.
N4D624810
• Collar studs for mounting optional
panels
• Easily removable center post per-
mits easy panel installations
• Doors are sealed with poured in
place polyurethane gasket
• Grounding provisions provided
Finish
• ANSI-61 gray polyester powder
inside and out
• Optional back panels are white
polyester powder
• Optional “G” panels have a con-
ductive finish (See page I7)
Accessories
• Back panels (reference tables)
• See pages J1-J22
B A C K PA N E L
C ATA L O G
B O D Y / D O O R
E N C L O S U R E S I Z E
C ATA L O G N U M B E R *
B A C K PA N E L
N U M B E R
S T E E L G A U G E
H X W X D
W H I T E
“ G ”
S I Z E A X B
