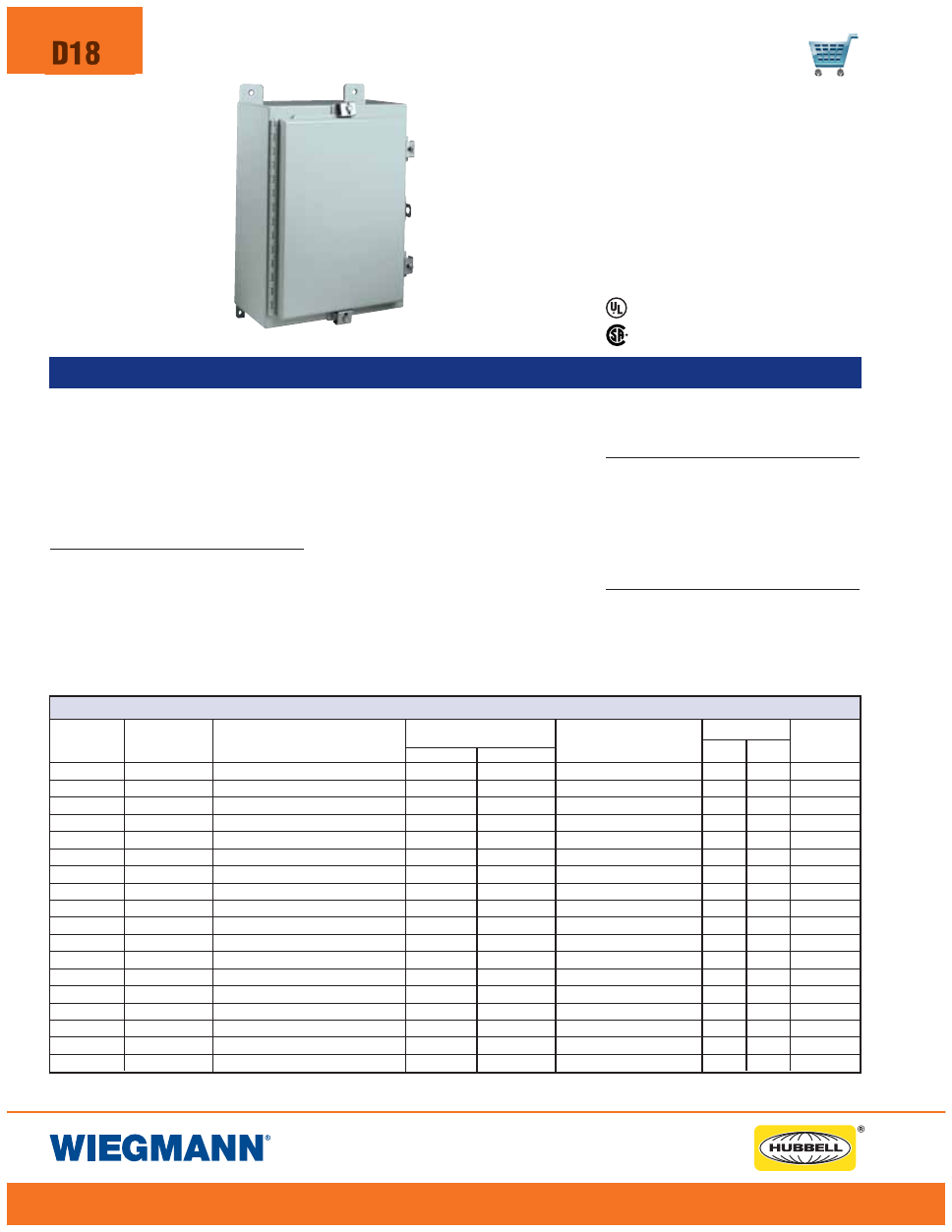

N 4 S E R I E S E N C L O S U R E S
N E M A 4 S I N G L E D O O R W A L L - M O U N T
D18
Applications
Intended for use in housing electrical
and electronic controls, instruments,
components, and associated wiring,
these enclosures incorporate hinged
doors which provide convenient access.
Designed for indoor or outdoor use in
protecting components from dust, dirt,
oil, and hose directed water.
Construction
• Bodies and doors fabricated from
14 gauge steel
• Continuously plasma welded seams
• Door and body stiffeners are provided
in larger enclosures for extra rigidity
Industry Standards
UL 508, Types 4, 12 & 13
CSA Certified, Types 4 & 12
NEMA/EEMAC Type 4, 12 & 13
UL Files E64791
CSA File LL66078
• Rolled lip on three sides of door and all
sides of enclosure opening is provided
to exclude liquids and contaminants
• Quick and easy to operate stainless
steel door clamps are provided
• Doors are removable by pulling
stainless steel continuous hinge pin
• Hasp and staple for padlocking
• Print pocket is provided
• Doors are sealed with poured-in-
place polyurethane gasket**
• Collar studs provided for mounting
optional back panels
• External mounting feet for mounting
enclosure
N4161206
B A C K PA N E L
S T I F F E N E R
C ATA L O G
B O D Y / D O O R
E N C L O S U R E S I Z E
C ATA L O G N U M B E R *
B A C K PA N E L
E
N U M B E R
S T E E L G A U G E
H X W X D
W H I T E
“ G ”
S I Z E A X B
D O O R
B O D Y
N 4 1 6 1 2 0 6
14/14
16.00x12.00x6.00 (406x305x152)
N P 1 6 1 2
N P 1 6 1 2 G
13.00x9.00 (330x229)
No
No
—
N 4 1 6 1 6 0 6
14/14
16.00x16.00x6.00 (406x406x152)
N P 1 6 1 6
N P 1 6 1 6 G
13.00x13.00 (330x330)
No
No
—
N 4 1 6 2 0 0 6
14/14
16.00x20.00x6.00 (406x508x152)
N P 2 0 1 6
N P 2 0 1 6 G
13.00x17.00 (330x432)
No
No
—
N 4 2 0 1 6 0 6
14/14
20.00x16.00x6.00 (508x406x152)
N P 2 0 1 6
N P 2 0 1 6 G
17.00x13.00 (432x330)
No
No
—
N 4 2 0 2 0 0 6
14/14
20.00x20.00x6.00 (508x508x152)
N P 2 0 2 0
N P 2 0 2 0 G
17.00x17.00 (432x432)
No
No
—
N 4 2 4 1 2 0 6
14/14
24.00x12.00x6.00 (610x305x152)
N P 2 4 1 2
N P 2 4 1 2 G
21.00x9.00 (533x229)
No
No
4.313 (110)
N 4 2 4 1 6 0 6
14/14
24.00x16.00x6.00 (610x406x152)
N P 2 4 1 6
N P 2 4 1 6 G
21.00x13.00 (533x330)
No
No
4.313 (110)
N 4 2 4 2 0 0 6
14/14
24.00x20.00x6.00 (610x508x152)
N P 2 4 2 0
N P 2 4 2 0 G
21.00x17.00 (533x432)
No
No
4.313 (110)
N 4 2 4 2 4 0 6
14/14
24.00x24.00x6.00 (610x610x152)
N P 2 4 2 4
N P 2 4 2 4 G
21.00x21.00 (533x533)
No
No
4.313 (110)
N 4 3 0 2 0 0 6
14/14
30.00x20.00x6.00 (762x508x152)
N P 3 0 2 0
N P 3 0 2 0 G
27.00x17.00 (686x432)
No
No
5.813 (148)
N 4 3 0 2 4 0 6
14/14
30.00x24.00x6.00 (762x610x152)
N P 3 0 2 4
N P 3 0 2 4 G
27.00x21.00 (686x533)
No
No
5.813 (148)
N 4 3 6 2 4 0 6
14/14
36.00x24.00x6.00 (914x610x152)
N P 3 6 2 4
N P 3 6 2 4 G
33.00x21.00 (838x533)
No
No
7.313 (186)
N 4 1 6 1 2 0 8
14/14
16.00x12.00x8.00 (406x305x203)
N P 1 6 1 2
N P 1 6 1 2 G
13.00x9.00 (330x229)
No
No
—
N 4 2 0 1 6 0 8
14/14
20.00x16.00x8.00 (508x406x203)
N P 2 0 1 6
N P 2 0 1 6 G
17.00x13.00 (432x330)
No
No
—
N 4 2 0 2 0 0 8
14/14
20.00x20.00x8.00 (508x508x203)
N P 2 0 2 0
N P 2 0 2 0 G
17.00x17.00 (432x432)
No
No
—
N 4 2 0 2 4 0 8
14/14
20.00x24.00x8.00 (508x610x203)
N P 2 4 2 0
N P 2 4 2 0 G
21.00x17.00 (533x432)
No
No
—
N 4 2 4 2 0 0 8
14/14
24.00x20.00x8.00 (610x508x203)
N P 2 4 2 0
N P 2 4 2 0 G
21.00x17.00 (533x432)
No
No
4.313 (110)
N 4 2 4 2 4 0 8
14/14
24.00x24.00x8.00 (610x610x203)
N P 2 4 2 4
N P 2 4 2 4 G
21.00x21.00 (533x533)
No
No
4.313 (110)
N 4 S E R I E S S I N G L E D O O R E N C L O S U R E S
Continued on page D19
F E AT U R E S - S P E C I F I C AT I O N S
www.hubbell-wiegmann.com
Data Subject To Change Without Notice
• Grounding provisions provided
• Optional back panels must be
ordered separately
Finish
• ANSI-61 polyester powder inside
and outside
• Optional back panels are white
polyester powder
• Optional “G” panels have a con-
ductive finish (See page I4)
Accessories
• Back panels (reference tables)
• See pages J1-J22
*Back panels must be ordered separately.
**Enclosures are supplied with closed cell neoprene gasket (not foam-in-place).
