9

OPTIONAL BOTTOM DASHPOT Cont’d)






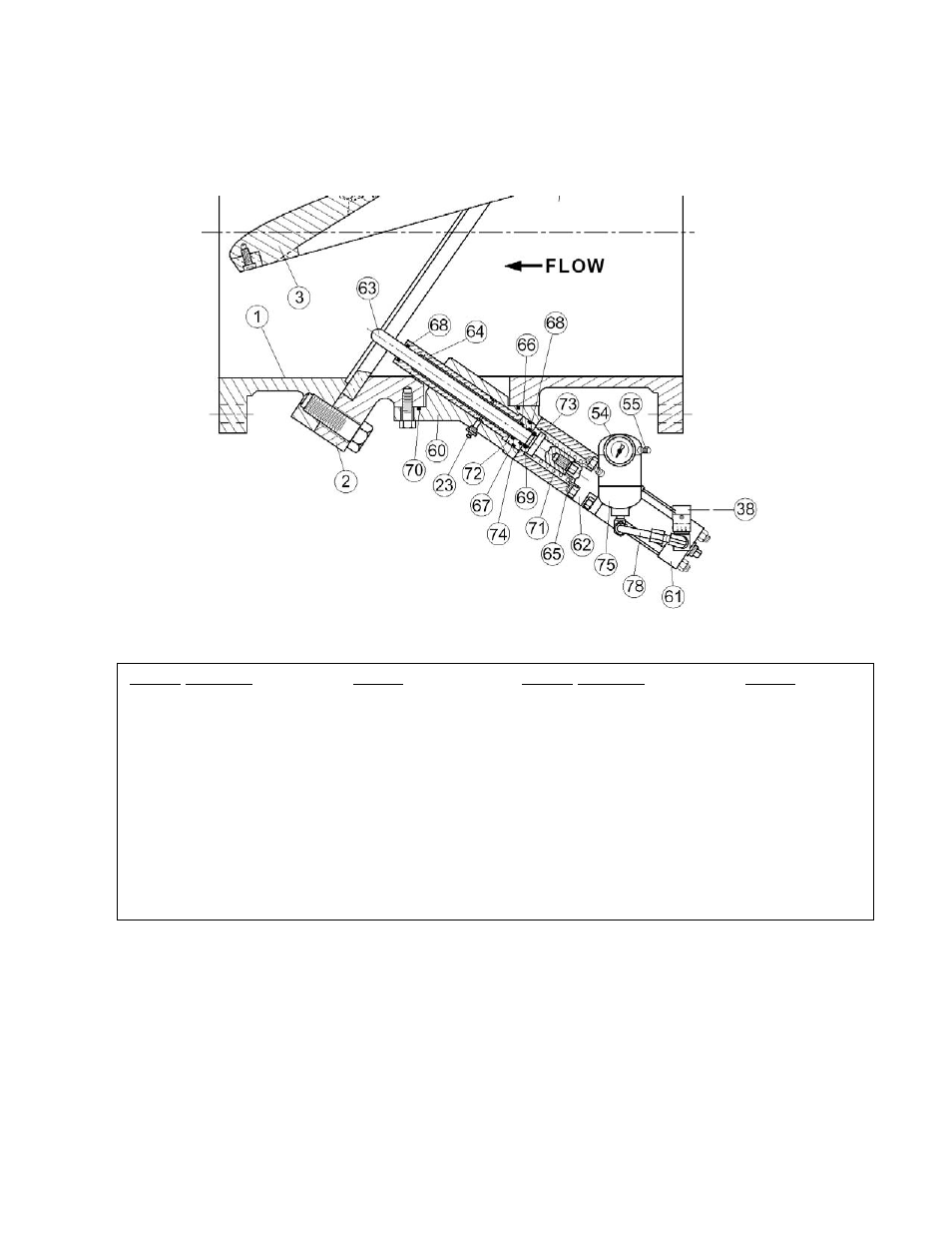

FIGURE 4. Bottom Mounted Oil Dashpot (BMOD) Construction





























Part No. Part Name

Material

Part No. Part Name

Material

1

Pivot Body Half

Cast or Ductile Iron

66*

Snubber Rod O-Ring

Buna-N

2

Seat Body Half

Cast or Ductile Iron

67*

Bushing O-Ring

Buna-N

3

Disc

Cast or Ductile Iron

68*

Rod Wiper

Molythane

38

Flow Control Valve

Brass

69*

Retaining Ring

Buna-N

54* Pressure Gauge

Brass

70*

Cover O-Ring

Buna-N

55* Air Inlet Valve

Stainless Steel

71

Spring

Steel (plated)

60

Dashpot Cover

Ductile Iron

72

Lower Bushing

Bronze

61

Dashpot Cylinder

NFPA, Steel

73

Spring Retainer

Stainless Steel

62

Dashpot Spacer

Ductile Iron

74

Mounting Screw

Alloy Steel

63

Snubber Rod

Stainless Steel

75

Oil Reservoir

Carbon Steel

64

Snubber Rod Bushing

Alum Bronze

78

Dashpot Piping

Steel

65

Spring Guide

Alum. Bronze


*Recommended Spare Part
