SaltDogg WB200B v.2 - Manual (Page 9)

9
TM

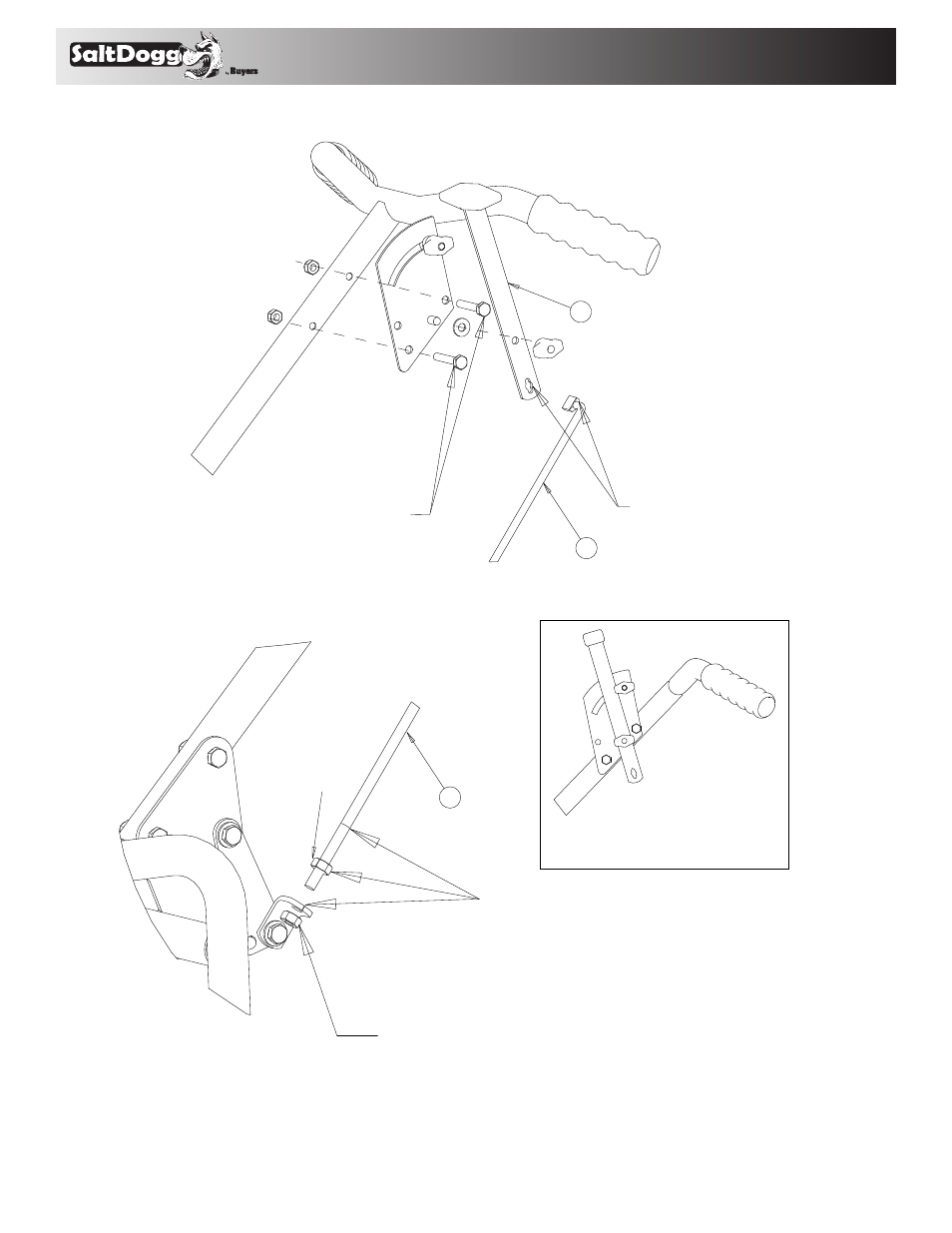

Attach Control Handle
Assembly to Frame Using
M6x40 Bolts
Thread First Jam Nut onto Upper
Linkage and Insert Linkage into
Control Plate Assembly
Secure Linkage with Second Jam Nut and Tighten
Remove Control Handle
from Assembly, Insert
Upper Linkage into
Control Handle, Reattach
Control Handle
Set the Restrictor Plate Fully Open and the
Control Handle to "30" (as shown)
9
9
7
First Jam Nut
13. Attach the Control Handle Assembly(7) to the
Frame using m6x40 bolts.
14. Insert Upper Linkage(9) into the Control Handle.
15. Set the controls by first adjusting the Restrictor
Plate so it is fully open. Next remove the Second Jam
Nut from the Upper Linkage and insert the Upper
Linkage into the small bracket of the Linkage Plate
Assembly. Next set the Control Handle to “30” and
adjust the First Jam Nut so it is flush against the small
bracket. Now reattach the Second Jam Nut and tighten
with two 1/2" wrenches.
