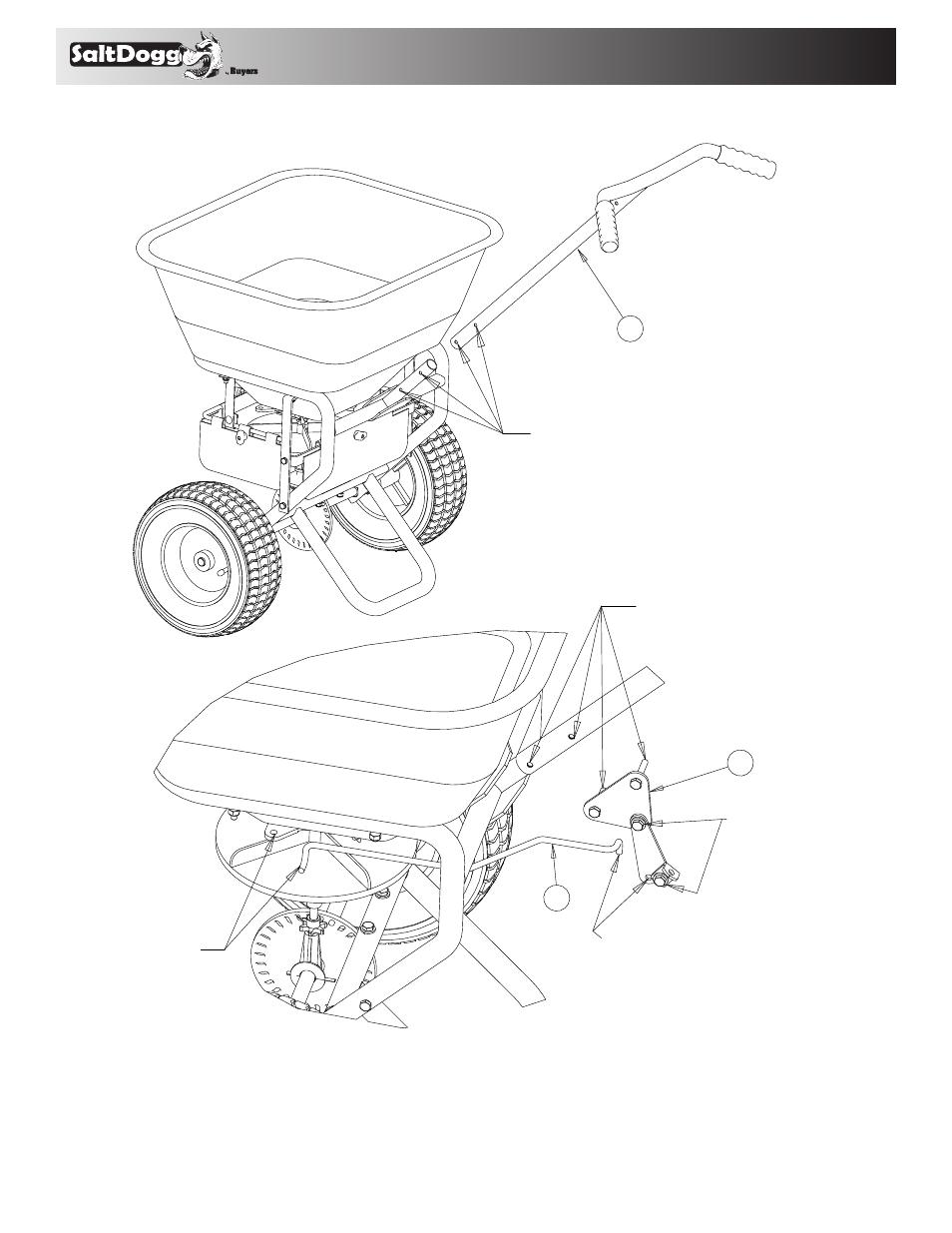

Slide Handle Onto Frame
And Line Up Holes
Deflectors Not Shown for Clarity
Insert Lower Linkage
Into Restrictor Plate
Attach Control
Plate Assembly To Frame
Using M6x40 Bolts
2
8
10
Insert Other End of
Lower Linkage Into
Control Plate Assembly
Secure Bolts & Nuts Snug
Against Washers. Controls
Must Still Be Able to Pivot.
9. Slide the Handle(2) onto the Frame & line up the holes.
10. Insert the Lower Linkage(10) into the Restrictor
Plate pre-attached to the bottom of the Hopper
11. Insert the other end of the Lower Linkage into the
Linkage Plate Assembly(8) as shown.
12. Attach the Linkage Plate Assembly to the Frame
using m6x40 bolts. Secure pivot bolts so nuts are snug
(but not tight) against washers. Controls must be able
to pivot freely.
