Ramsey Winch LEVEL WINDER 2 R.H. 256052 - Manual (Page 2)

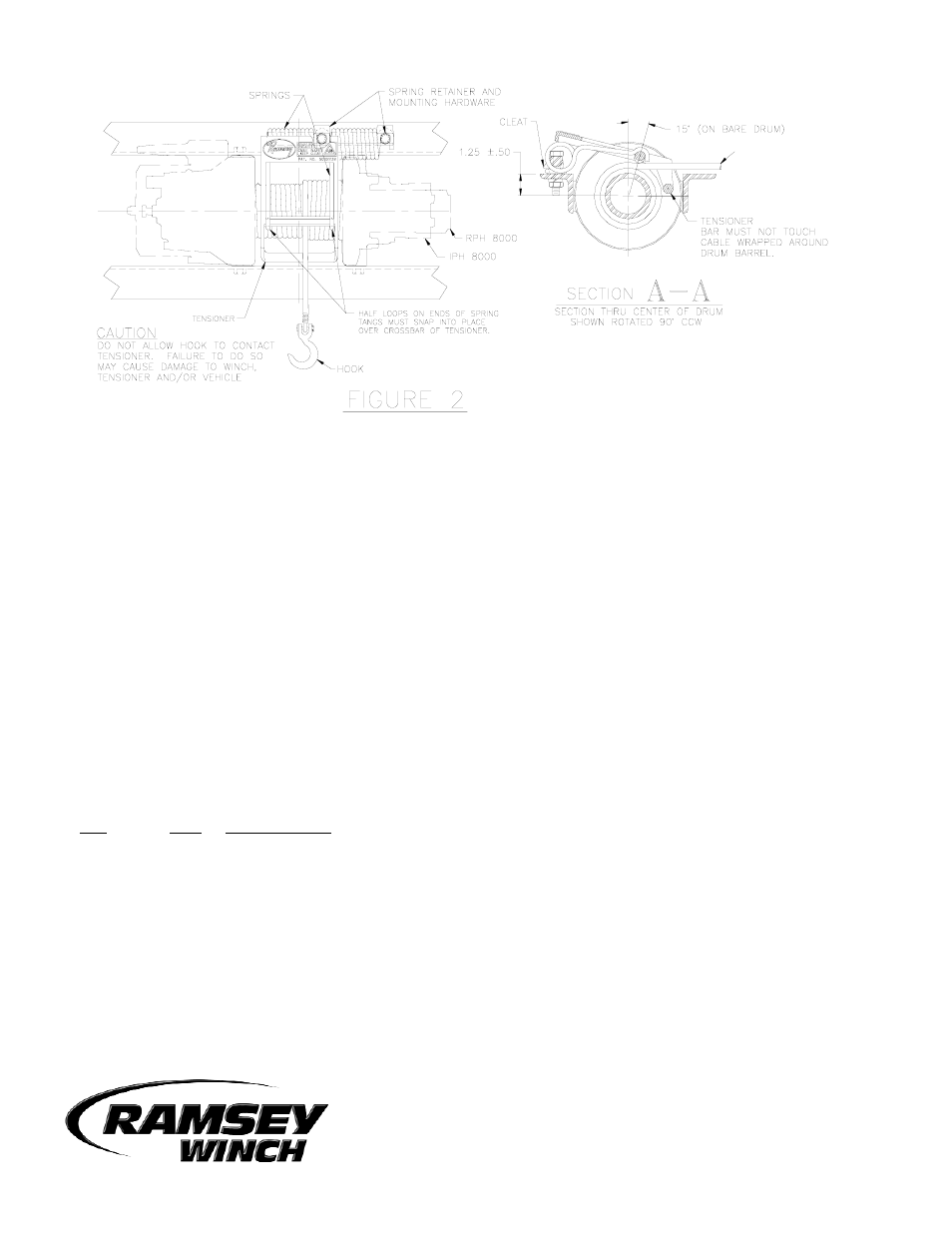

Push the tensioner toward the spring until the half loops at the end of each spring tang snap into place over the cen-
ter cross bar of the tensioner. See FIG. 2.
Engage the clutch and run the winch in the reel in direction winding about five wraps of cable onto the drum and
stop. Using a hammer tap these five wraps tightly over against the cable anchor flange of the cable drum. Finish
winding all the cable onto the cable drum. As cable winds onto the drum, watch the tensioner. Tensioner must be
free to move without obstruction to function properly. If tensioner touches any surrounding structure, correct the
problem.
CAUTION: STOP REEL IN OF CABLE BEFORE THIMBLE/HOOK ENTERS LEVEL WINDER. FAILURE TO DO SO
MAY CAUSE DAMAGE OR BREAKAGE TO THE WINCH, LEVEL WINDER, OR VEHICLE.
OPERATION
Lay cable out in a straight line behind the truck to prevent kinking before beginning to wind in. It is not necessary to
walk in with the cable, let your Level Winder do the work.
PART
NO. QTY. DESCRIPTION
414558 2 CAPSCREW 1/2-13NC X 3 LG. HX.HD. ALL THRD. GR. 5, PLTD.
418069 2 NUT-HEX. 1/2-13NC REG. PLTD.
418218 2 LOCKWASHER 1/2 MED. SECT. PLTD.
434254 1 DECAL
494098 2 SPRING
688489 1 TENSIONER-CABLE
688490 1 RETAINER-SPRING
RAMSEY WINCH COMPANY
P.O. BOX 581510
TULSA, OKLAHOMA 74158
KI-912512-1202-E
NOTE: CABLE MUST FEED
BETWEEN CENTER CROSS
BAR AND FRONT CROSS BAR
OF LEVEL WINDER
