Ramsey Winch Company

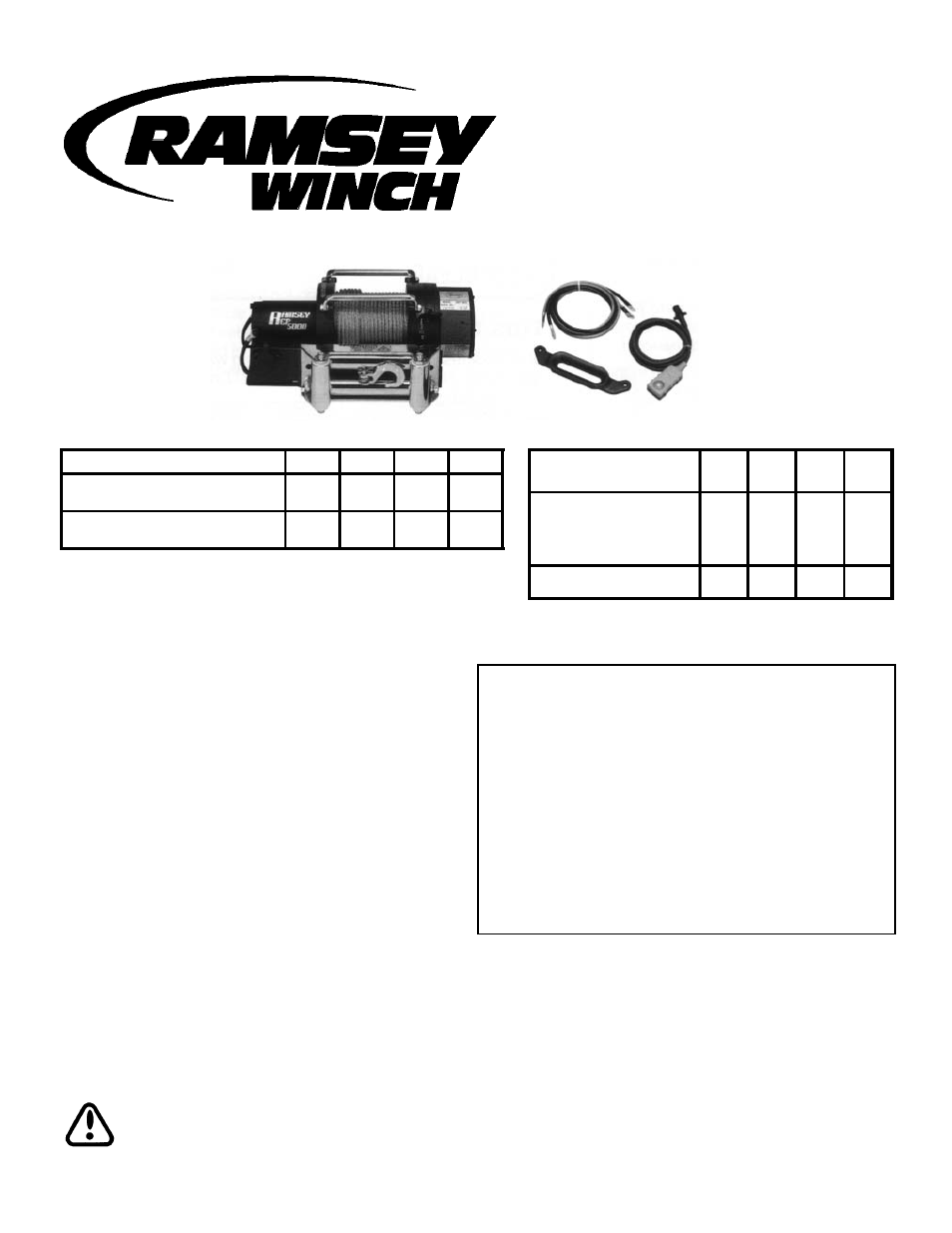

OWNER'S MANUAL
Front Mount Electric Winches
Model REP 5000
12 and 24 volt available
Layer of Cable 1 2 3 4 (lbs) NO 1,000 3,000 5,000
(lbs) 5,000 4,200 3,600 3,200 (kg) LOAD 450 1,350 2,260
(kg) 2,260 1,900 1,630 1,450 (FPM) 12V 15 11 8 5
(ft)* 15 30 55 80 (MPM) 12V 4.6 3.4 2.4 1.5
(m)* 4 9 16 24 (FPM) 24V 20 17 12 8
(MPM) 24V 6.1 5.2 3.7 2.4
12V 45 100 155 210
24V 20 50 105 160
* Depends on cable being uniformly wound onto drum. Ramsey performance data is compiled from actual winch testing.
Amp Draw
First Layer Line Pull
Rated Line Pull Per Layer
Cumulative Cable Capacity Per
Layer 1/4" (6mm) dia. Cable Line Speed
First Layer
Congratulations
You have purchased the finest winch available in its service
class. It features a highly efficient 3 stage planetary gear set
which transmits torque from a permanent magnet D.C. motor.
A safe positive clutch allows free spooling for quick cable
deployment. An automatic load holding brake is designed to
hold the full rated capacity of the winch. It was designed and
manufactured to provide you with the utmost in utility. As with
any device that combines power and movement in its use,
there are dangers if improperly used. At the same time, there
are easier and faster ways for getting the job done if certain
precautions are taken first. Please read this manual carefully.
It contains useful ideas in obtaining the most efficient opera-
tion from your Ramsey Winch and safety procedures you
need to know before beginning use. When you follow our
guidlines for operation, your Ramsey Winch will give you
many years of satisfying service. Thank you for choosing
Ramsey. You will be glad you have one working for you.
Contents
Performance Specifications . . . . . . . . . . . . . . . .Front Cover
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Tips for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Techniques of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Electrical Connections and Operation . . . . . . . . . . . . . . . . .5
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Winch Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Please Note: Ramsey REP 5000™ winches are designed for front
mount vehicle use. The winches are not designed for and should not
be used in industrial applications (car haulers /carriers, wreckers,
hoisting, etc.), and Ramsey does not warrant them to be suitable for
such use. Ramsey makes a separate, complete line of winches for
industrial/commercial use. Please contact the factory for further
information.
CAUTION: Read and understand this manual before installation and operation of winch. See Safety
Precautions
