G
ua
rd
ia
n
Fa
ll
Pr
ot
ec
tio
n
6
30
5
S.
2
31
st
S
t.
, K
en
t,
W
A
9
80
32
p
ho
ne
: (
80
0)
4
66
-6
38
5
f
ax
: (
80
0)
6
70
-7
89
2
w
w
w
.g
ua
rd
ia
nf
al
l.c
om
16
User must inspect prior to EACH use. Competent
Person must complete formal inspection every
6 months. Competent Person to inspect and initial.
Date of First Use: __________________.
Product lifetime is indefinite as long as
equipment passes pre-use and
Competent Person inspections.
20___ 20___ 20___ 20___ 20___
INSPECTION GRID
J
F
M
A
M
J
J
A
S
O
N
D
If equipment fails inspection
IMMEDIATELY REMOVE FROM SERVICE
DO NOT REMOVE LABELS
YR
MO
Stingray Anchor
Part #: 04730
Prior to use, read and understand
all instructions provided by
manufacturer at time of shipment.
Compliant with OSHA 1910, OSHA
1926 Subpart M, ANSI Z359.1-2007,
and ANSI A10.32-2012 regulations.
Materials: Powder-coated steel,
zinc-plated steel, & zinc.
Capacity Range: 130-310 lbs., or up
to 420 lbs. if used with equipment
explicitly certified for such use.
www.guardianfall.com 1-800-466-6385
6305 S. 231st St., Kent, WA 98032
Date of Manufacture:
Stingray Anchor Installation:
1. Thread Mounting Bolts so base
will fit onto structural beam.
2. Place Stingray Anchor over
flange, and tighten Mounting Bolts
with wrench until snug.
3. Install both Clamp Assemblies.
Tighten wing nuts until snug, then
tap with hammer to fully secure.
4. Re-tighten all bolts and
connections prior to EVERY use.
Connections must be selected and
deemed compatible with Stingray
Anchor Post by Competent Person.
! WARNING
Beam compatibility:
Width: 5” to 13”
Thickness: 3--3/8” Maximum
MUST be used with Absorbinator
shock absorber system in HLL
applications. All instructions
provided with Absorbinator system
must be read and understood prior
to use. All HLL installation and
maintenance must be done under
supervision of a Qualified Person.
MAXIMUM 60’ between
consecutive Stingray posts.
MAXIMUM 2 PFAS per Absorbinator
in HLL system as specified
by instructions.
MAXIMUM total HLL
system length: 300’.
MAXIMUM 6 PFAS per
entire HLL system.
Always maintain 100% tie-off.
Avoid contact with all hazards,
including, but not limited to,
electric shock, high temperatures,
and sharp/abrasive edges.
Never lean or climb on Stingray
Anchor or associated HLL system.
MAXIMUM 1 PFAS per Stingray
when used as anchorage connector.
90036
(Rev. I)

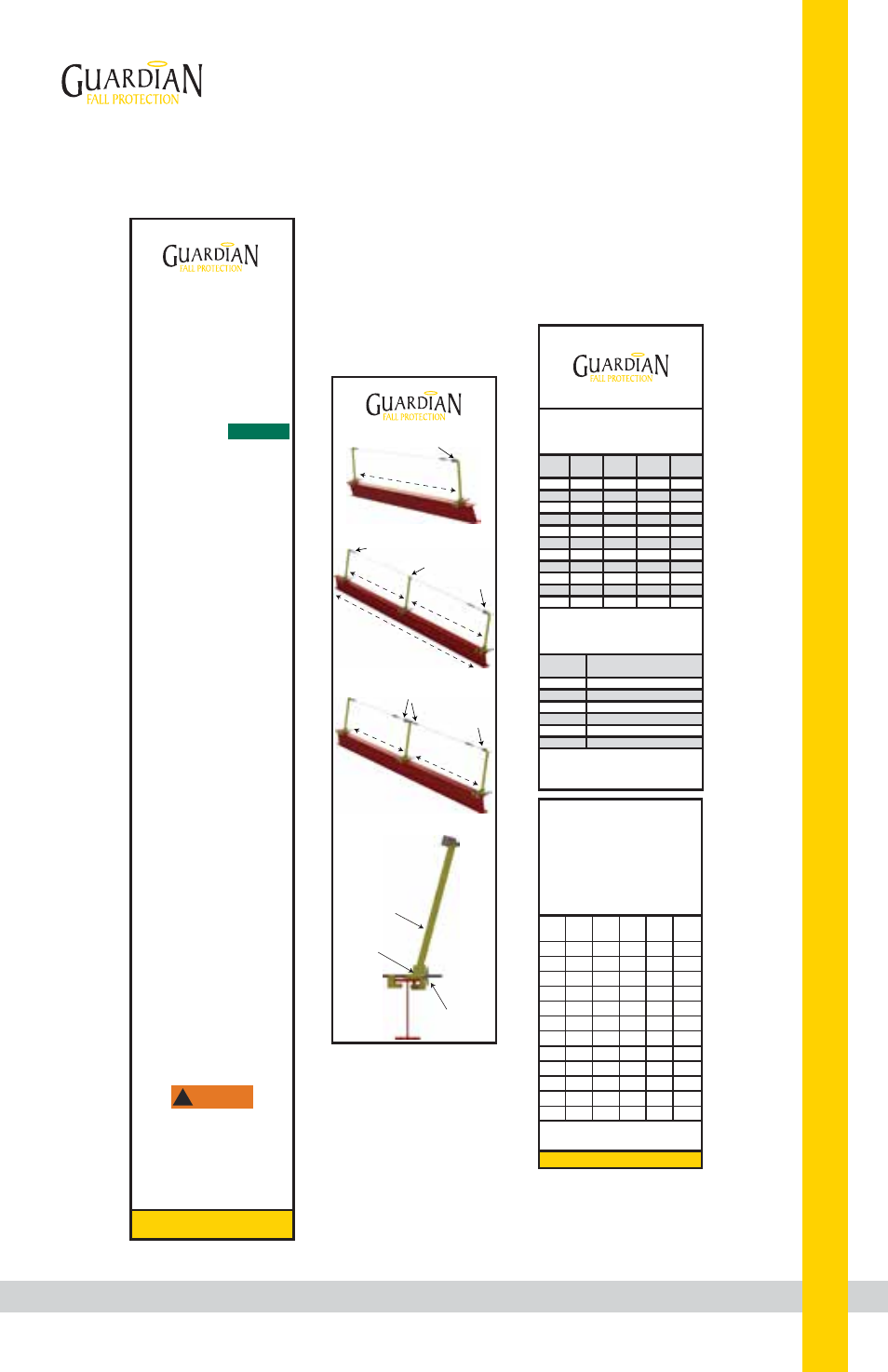

HLL Termination and
2nd Absorbinator Assembly
Absorbinator
Assembly
Multiple Span
System with
2nd Absorbinator
Assembly
Max 60’
2 PFAS
Max 60’
2 PFAS
Single Span
System
Absorbinator
Assembly
Max 60’
2 PFAS
Beam Connection
Side View
Stanchion
Wing Nut
Mounting Bolt
Absorbinator
Assembly
Pass-Through Top
System with
Pass-Through Top
Max 60’
Max 60’
Max 2 PFAS
Absorbinator
Assembly
Fall Clearance:
Stingray Anchor and
Absorbinator HLL System
SRL table only applies when SRL and HLL
are located above harness dorsal D-ring.
Span
Length
3’
Lanyard
4’
Lanyard
5’
Lanyard
6’
Lanyard
0-10’
10-15’
15-20’
20-25’
25-30’
30-35’
35-40’
45-50’
55-60’
40-45’
50-55’
18’ 10”
19’ 7”
20’ 2”
20’ 11”
21’ 6”
22’ 2”
22’ 10”
23’ 6”
24’ 1”
24’ 10”
25’ 5”
19’ 11”
20’ 7”
21’ 2”
21’ 11”
22’ 6”
23’ 2”
23’ 10”
24’ 6”
25’ 1”
25’ 10”
26’ 5”
20’ 11”
21’ 7”
22’ 2”
22’ 11”
23’ 6”
24’ 2”
24’ 10”
25’ 6”
26’ 1”
26’ 10”
27’ 5”
21’ 11”
22’ 7”
23’ 2”
23’ 11”
24’ 6”
25’ 2”
26’ 10”
27’ 6”
28’ 1”
28’ 10”
29’ 5”
Fall Clearance:
Stingray Anchor and
Self-Retracting Lifeline (SRL)
Span Length
0-10’
10-20’
20-30’
30-40’
40-50’
50-60’
Required Distance
16’ 5”
15’ 4”
14’ 2”
13’ 11”
12’
10’ 11”
