Pumptec Operating Instructions and Parts Manual
PRESSURE WASHER

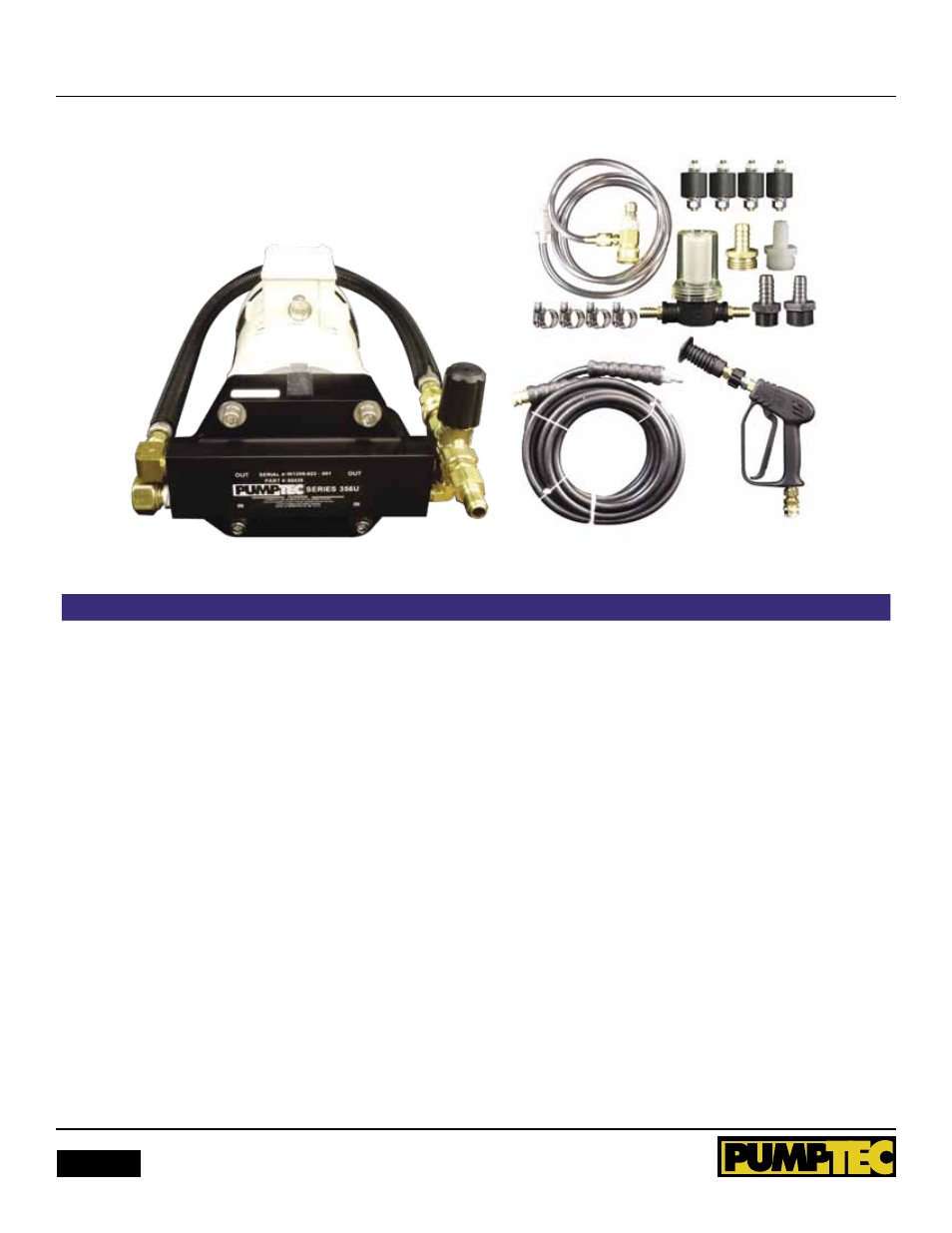

PrESSUrE wASHEr kit CONtENtS PN 80390/80608
Parts shown not to scale
DESCriPtiON
DESCriPtiON
Qty
PUmP & mOtOr ASSEmBLy PN: 80390/80608
gUN & HOSE ASSEmBLy
Pump & Motor Assembly Pn: 80390 (Motor M26)
1
gun-MV920
1
Pump & Motor Assembly Pn: 80608 (Motor M60)
1
Quick Coupler 3/8” M Socket
1
Fitting Assembly F garden Hose x 3/8” MnPT
1
Variable nozzle, Hi-lo & 0-80 Degree
1
Elbow 3/8” Mx3/8” M
1
Rotating Coupler 1/4” MxM22 F
1
Street Elbow 3/8”
1
nipple for Rotating Coupler 1/4” MxM22 M
1
Plug Countersunk 3/8”
1
Pressure Hose
1
Unloader - 800 PSI Spring
1
Chemical Injector Assembly
1
Pulse Hose
1
SUCtiON LiNE ASSEmBLy
Pulse Hose Shield - 3/4”ID, 30”
1
Hose Barb, 3/4” gHT Mx1/2” Barb, Brass
1
Quick Coupler 3/8” F Plug
2
Hose Barb, 3/4” gHT Mx1/2” Barb, nylon
1
Quick Coupler 3/8” F Socket
1
Hose Barb, 3/4” nPT Mx1/2” Barb, nylon
1
Motor Mount
4
Hose Barb, 1/2” nPT Mx1/2” Barb, nylon
1
nut, 3/8” lock nut
8
Hose Clamps #06
4
Washer, 3/8”
8
line Strainer, 1/2 Bx1/2” B, 80 Mesh, Clear Bowl
1
Suction Hose, 1/2”*
10’
(*) not Shown
