Pumptec Operating Instructions and Parts Manual
PRESSURE WASHER
PrESSUrE wASHEr kit CONtENtS PN 8729

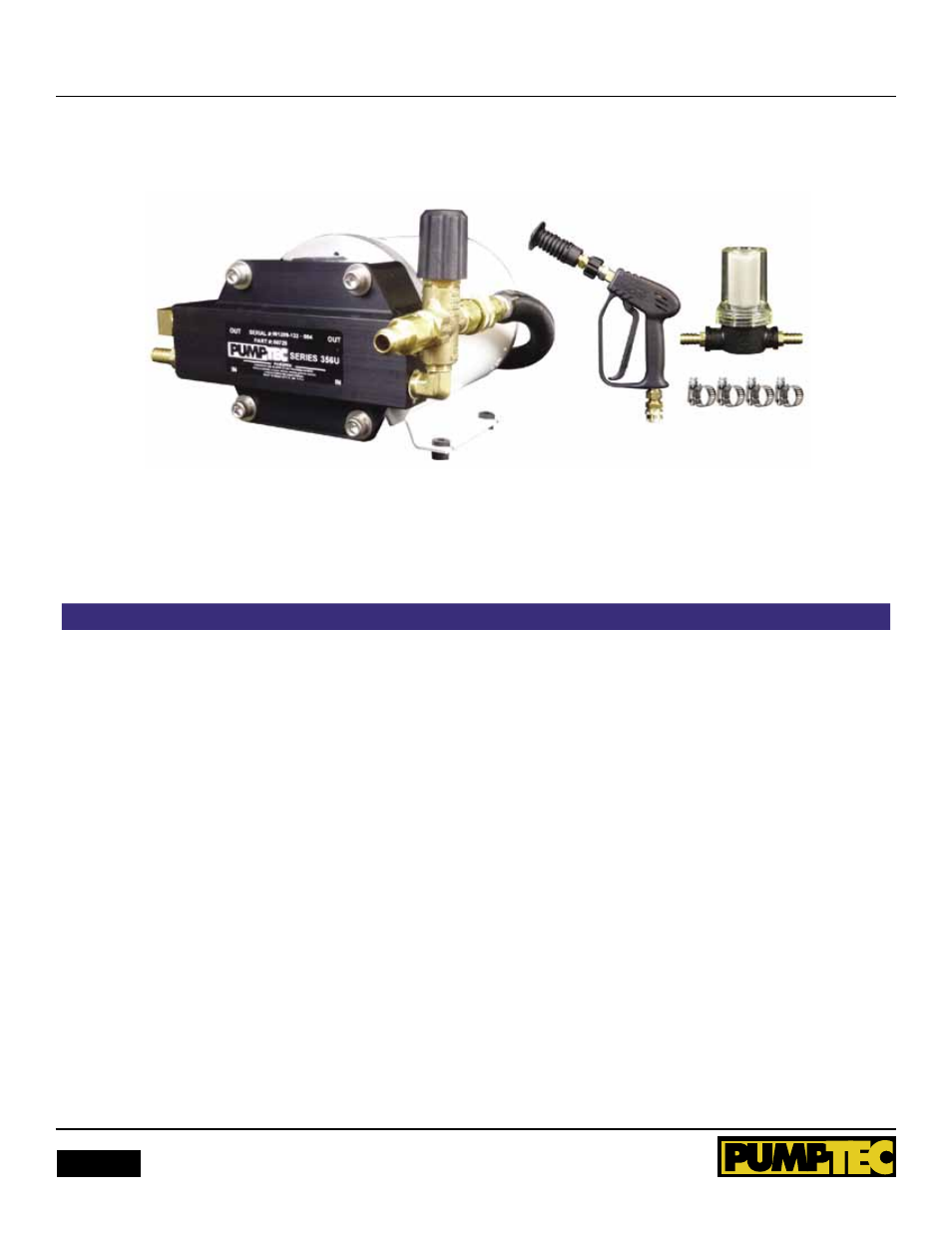

Parts shown not to scale
DESCriPtiON
DESCriPtiON
Qty
PUmP & mOtOr ASSEmBLy PN: 80729
gUN & HOSE ASSEmBLy
Pump & Motor Assembly
1
gun-MV920
1
Hose Barb, 3/8” nPT Mx1/2” Barb, Brass
1
Quick Coupler 3/8” M Socket
1
Elbow 3/8” Mx3/8” M
1
Variable nozzle, Hi-lo & 0-80 Degree
1
Street Elbow 3/8”
1
Rotating Coupler 1/4” MxM22 F
1
Plug Countersunk 3/8”
1
nipple for Rotating Coupler 1/4” MxM22 M
1
Unloader - 800 PSI Spring
1
SUCtiON LiNE ASSEmBLy
Pulse Hose
1
Hose Clamps #06
4
Pulse Hose Shield - 3/4”ID, 30”
1
line Strainer, 1/2 Bx1/2” B, 80 Mesh, Clear Bowl
1
Quick Coupler 3/8” F Plug
2
Suction Hose, 1/2”*
10’
Quick Coupler 3/8” F Socket
1
(*) not Shown
