16
BLOWER
MOUNTING
BRACKET
5/16" x 1-1/2"
HEX BOLT
5/16" LOCK WASHER
5/16" HEX NUT

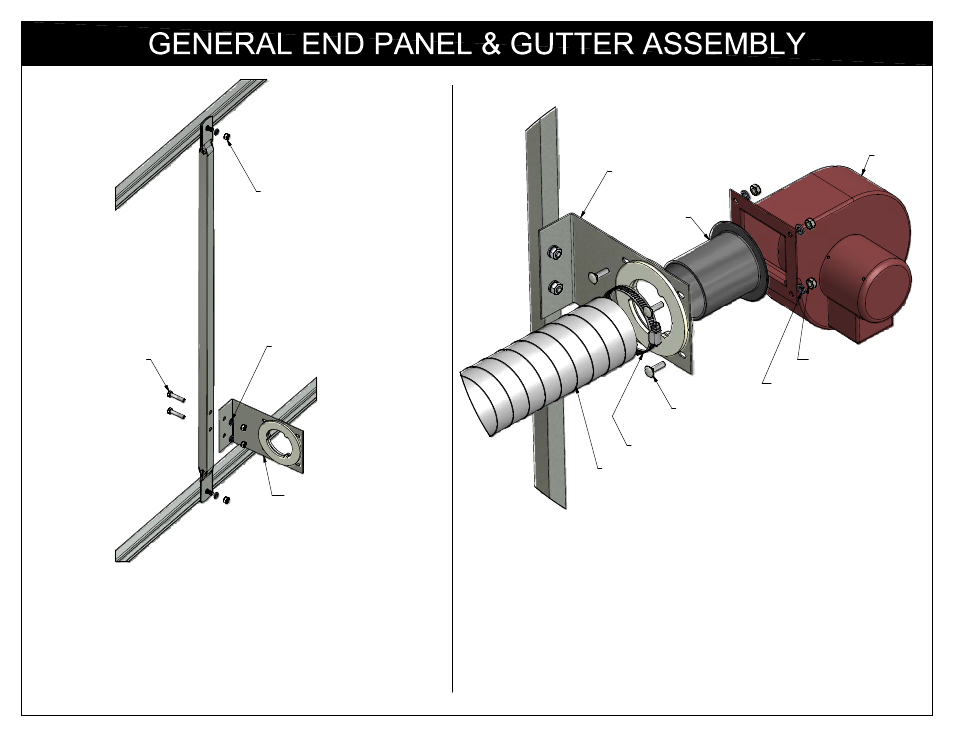

Mount the blower mounting rail to your structure's rails.
Use FT2570 Stop Tab, 5/16" Lock Washer and Wing
Nut.
Mount the blower mounting bracket to the blower
mounting rail using the 5/16" fasteners provided.
Insert the pv plug through the blower mount.
Bolt the poly-vent blower to the blower mount with the pv plug
between the blower and the mount using (4) 1/4" X 3/4" carriage
bolt, lock washer, and hex nut.
Slide the 3.25" hose clamp over the 3" X 5' flex tube leaving the
clamp loose temporarily.
Slide the 3" X 5' flex tube with the 3.25" clamp over the pv plug
and secure it in place by tightening the 3.25" hose clamp.
FLEX TUBING
1/4" HEX NUT
1/4" LOCK WASHER
BLOWER BLOWER
MOUNTING
BRACKET
3.25" HOSE CLAMP
1/4" x 3/4"
CARRIAGE BOLT
PV PLUG
STOP TAB,
5/16" LOCK WASHER,
& HEX NUT
