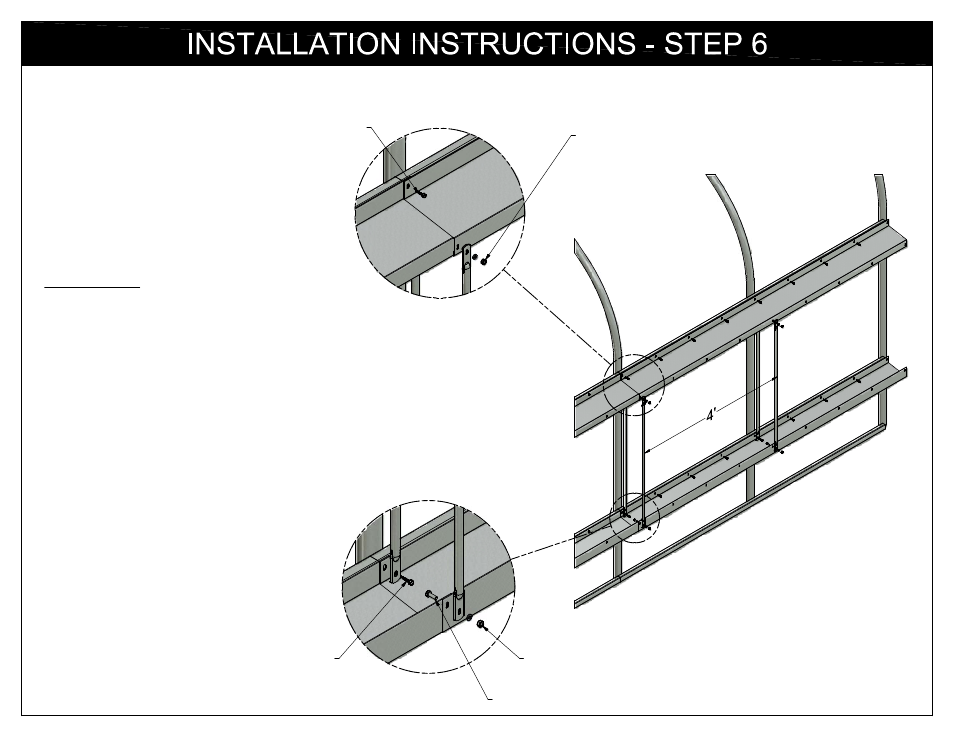

INSTRUCTIONS:

6A. INSTALL THE ADJOINING SECTIONS OF TOP

AND BOTTOM GUTTERS.

6B. OVERLAPPING SECTIONS SHOULD BE ASSEMBLED

APPROPRIATELY FOR PROPER WATER DRAINAGE.
ADJOINING GUTTERS SHOULD BE SLID UP INTO
EXISTING GUTTERS IF INSTALLING FROM HIGH END
TO LOW END. ADJOINING GUTTERS SHOULD BE SLID
DOWN OVER THE TOP OF EXISTING GUTTERS WHEN
INSTALLING FROM LOW END TO HIGH END.

6C. CONTINUE TO ADD GUIDES EVERY 4 FEET.

#12 x1" SELF

DRILLING SCREW

1/4" LOCK WASHER
1/4" HEX NUT

1/4" x 3/4" HEX BOLT

1/4" LOCK WASHER
1/4" HEX NUT
1/4" x 3/4" HEX BOLT (INSIDE)

#12 x1" SELF

DRILLING SCREW
