Poly-Tex Poly-Vent - Manual (Page 11)

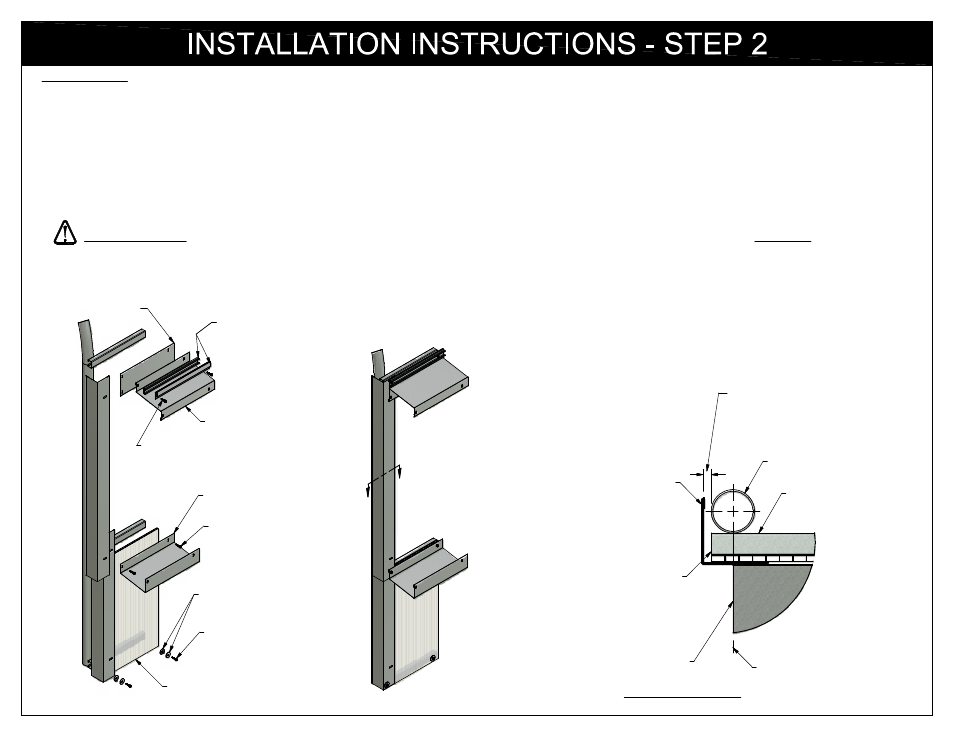

SECTION A-A
11
A
A
3/8"
CORNER HOOP
ROLL-FORMED RAILS
AND SKIRTING SHOULD
BE FLUSH WITH OUTSIDE
OF CORNER HOOP
EDGE OF TOP & BOTTOM
GUTTERS SHOULD BE
MOUNTED IN LINE WITH
THE CENTER LINE OF THE
CORNER HOOP
LEAVE A 3/8" GAP BETWEEN
THE CORNER HOOP AND THE
FLASHING IF YOUR END WALL
IS TO BE COVERED WITH
POLYCARBONATE STRUCTURED
SHEETING.
"L" FLASHING
ROLL-FORMED
RAILS
TOP & BOTTOM GUTTERS
TOP GUTTER
BACKER PLATE WIGGLE-WIRE BASE (FOR POLY ROOF)
- OR -
"U" PROFILE (FOR STRUCTURED SHEET ROOF)
BOTTOM GUTTER
#12 x 1-1/2" SELF-
DRILLING SCREW
STRUCTURED SHEET
SKIRTING
#12 x 1-1/2" SELF-
DRILLING SCREW
FLAT WASHER WITH
NEOPRENE BACKING
#12 x 1" SELF-
DRILLING SCREW
INSTRUCTIONS:
2A. INSTALL THE "L" FLASHING TO ACT AS A CORNER FLASHING COVERING THE STRUCTURED SHEET SKIRT AND FILLER FOR THE ROLLFORM RAILS.
MOUNT THE SKIRTING AND THE LOWER "L" FLASHING FIRST USING THE #12 x 1 1/2" SELF DRILLING SCREWS AND THE NEOPRENE WASHERS
ATTACHING THEM TO THE BOTTOM ROLLFORM RAIL.
2B. MOUNT TOP GUTTER, BACKER PLATE, AND "L" FLASHING TO TOP RAIL USING #12 x 1" SELF DRILLING SCREWS. MAKE SURE THE TOP "L" FLASHING
OVERLAPS THE BOTTOM "L" FLASHING. HEM OF BACKER PLATE SHOULD FACE MOUNTING RAILS. THE TOP EDGE OF THE TOP GUTTER, BACKER
PLATE, AND EDGE OF THE "L" FLASHING SHOULD BE FLUSH WITH THE TOP OF THE MOUNTING RAIL. IF POLY FASTENER IS BEING USED, IT SHOULD
BE MOUNTED AT THE SAME TIME USING THE SAME FASTENERS.
HINT: WELDER VISE GRIPS MAY BE USEFUL TO HOLD COMPONENTS WHILE SCREWS ARE BEING INSTALLED.
IMPORTANT NOTE: IF A POLY FASTENER IS BEING USED, IT IS CRITICAL THAT YOU USE AN APPROPRIATE FASTENER EVERY 12 INCHES.
2C. MOUNT BOTTOM GUTTER TO CENTER RAIL. DO NOT USE THE FIRST THREE MOUNTING HOLES. THESE WILL BE USED IN STEP 3 TO MOUNT THE REAR
PANEL. SKIRTING (IF USED) SHOULD BE MOUNTED BETWEEN THE BOTTOM GUTTER AND THE RAILS. THE TOP EDGE OF THE GUTTER (AND SKIRTING)
SHOULD BE FLUSH WITH THE TOP OF THE CENTER MOUNTING RAIL.
