Page 11
INSTALL RUNNING LIGHTS
a. The white wire from the harness is not needed for ground on this light and can be
capped off (with wiring connector (U)) or tied to other wires in the harness with a
small zip-tie.
b. Connect the brown wire from the running light (P) with the brown wire from the
wiring harness by pushing the wires together.

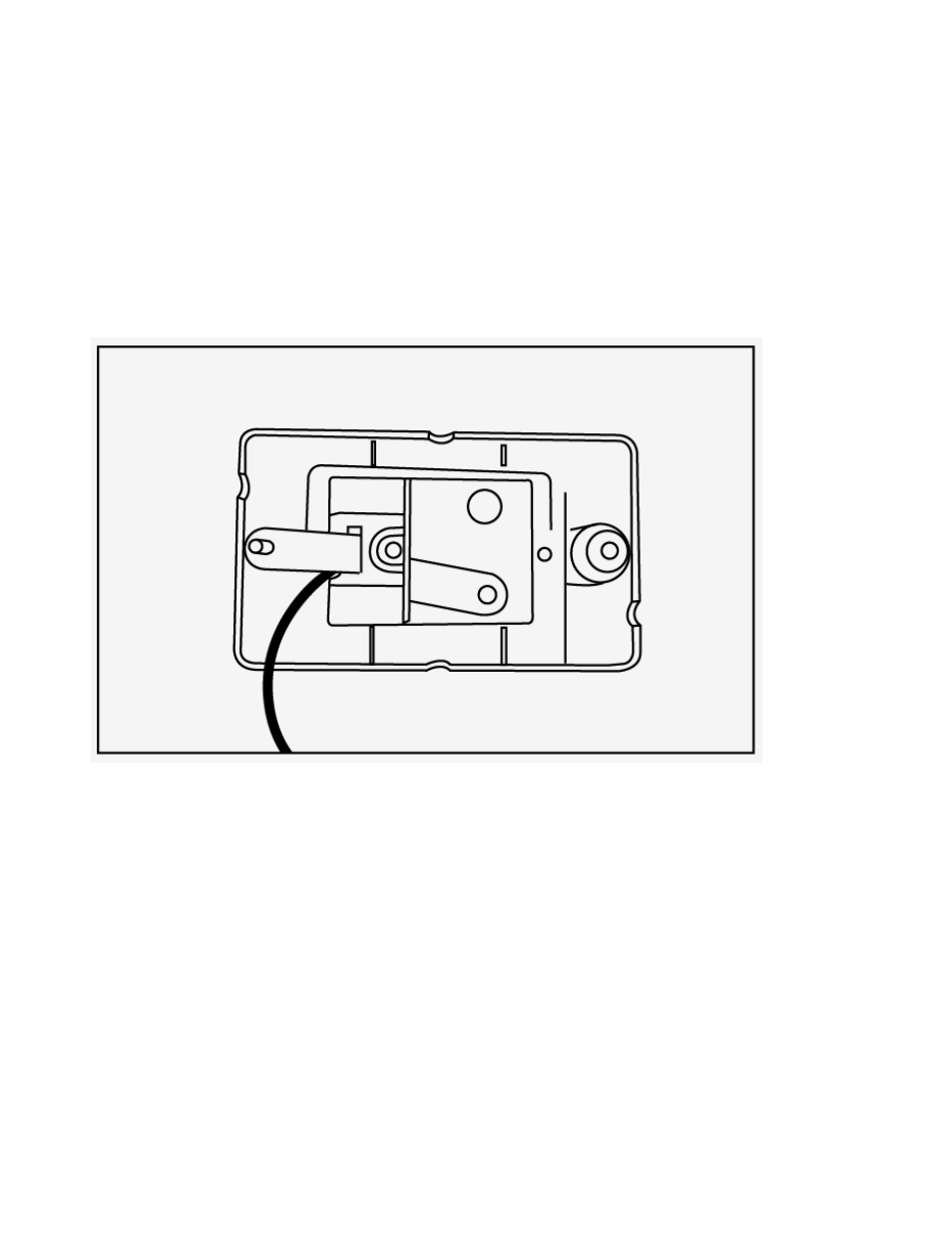

c. Position the brown wire under the silver tab, between the tab and the lens. Run the
screw through the silver tab, and then fasten the light to the trailer using two small
brass screws (T) found in the small bag with the wire connectors.
Tip: Once the lights are installed, pull any excess wire back into the frame.
STEP 7: ATTACH FENDERS
a. Align the fender bolt-holes with the bolt-holes in the frame.
b. Use 1” bolts (L), and small lock-washers (J) to fasten fender (10) to the frame.
