D-3 MAINTENANCE D-3
FuEL FILTERS
When working on the fuel system:
• Keep naked lights away, do not smoke !
• Do not spill fuel !
-------------------------------------------------------------------------
The AIR VANTAGE ® 700 (AU) CUMMINS is equipped
with a Fuel Filter located after the lift pump and before
fuel injectors.The procedure for changing the filter is as
follows.
1. Close the fuel shutoff valve.
2. Clean the area around the fuel filter head. Remove
the filter. Clean the gasket surface of the filter head
and replace the o-ring.
3. Fill the clean filter with clean fuel, and lubricate the
o-ring seal with clean lubricating oil.
4. Install the filter as specified by the filter manufacturer.
Mechanical overtightening will distort the threads,
filter element seal or filter can.
-------------------------------------------------------------------------
COOLING SYSTEM
The AIR VANTAGE ® 700 (AU) CUMMINS is equipped
with a pressure radiator. Keep the radiator cap tight to
prevent loss of coolant. Clean and flush the coolant
system periodically to prevent clogging the passage
and over-heating the engine. When antifreeze is need-
ed, always use the permanent type.
• When draining the entire contents of the system,
remove radiator cap and open vent cock on top of
tank (counter clockwise). Next, pull both drain hoses
through the access hole in the base and open both
valves until system is empty.
• When refilling, close both valves on drain hoses and
open vent cock on top of tank to vent air from system
fully. Close vent cock when done. (See Figure D.1)
AIR VANTAGE ® 700 (Au) CuMMINS
WARNING
WARNING

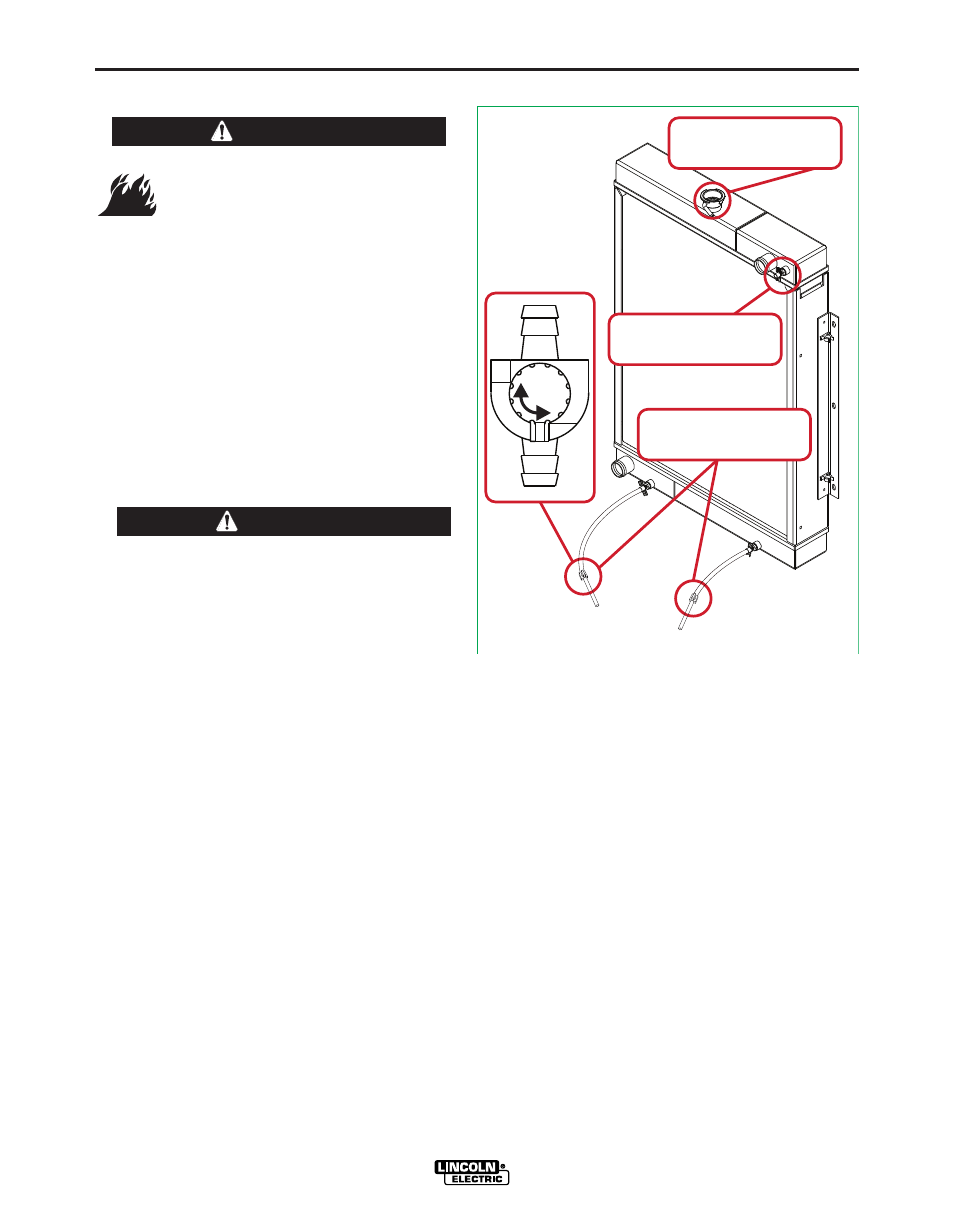

FIGuRE D.1
S29260 VM
CLOSE WHEN FINISHED.
OPEN BOTH DRAIN VALVES TO
DRAIN SYSTEM COMPLETELY.
OPEN (COUNTER-CLOCKWISE)
THIS VENT FITTING
WHEN FILLING SYSTEM.
CLOSE WHEN FINISHED
FILL COOLANT HERE.
REPLACE CAP COMPLETELY
WHEN FINISHED.
OFF
ON
