AFL2-17A/AB-H61
P a g e 65

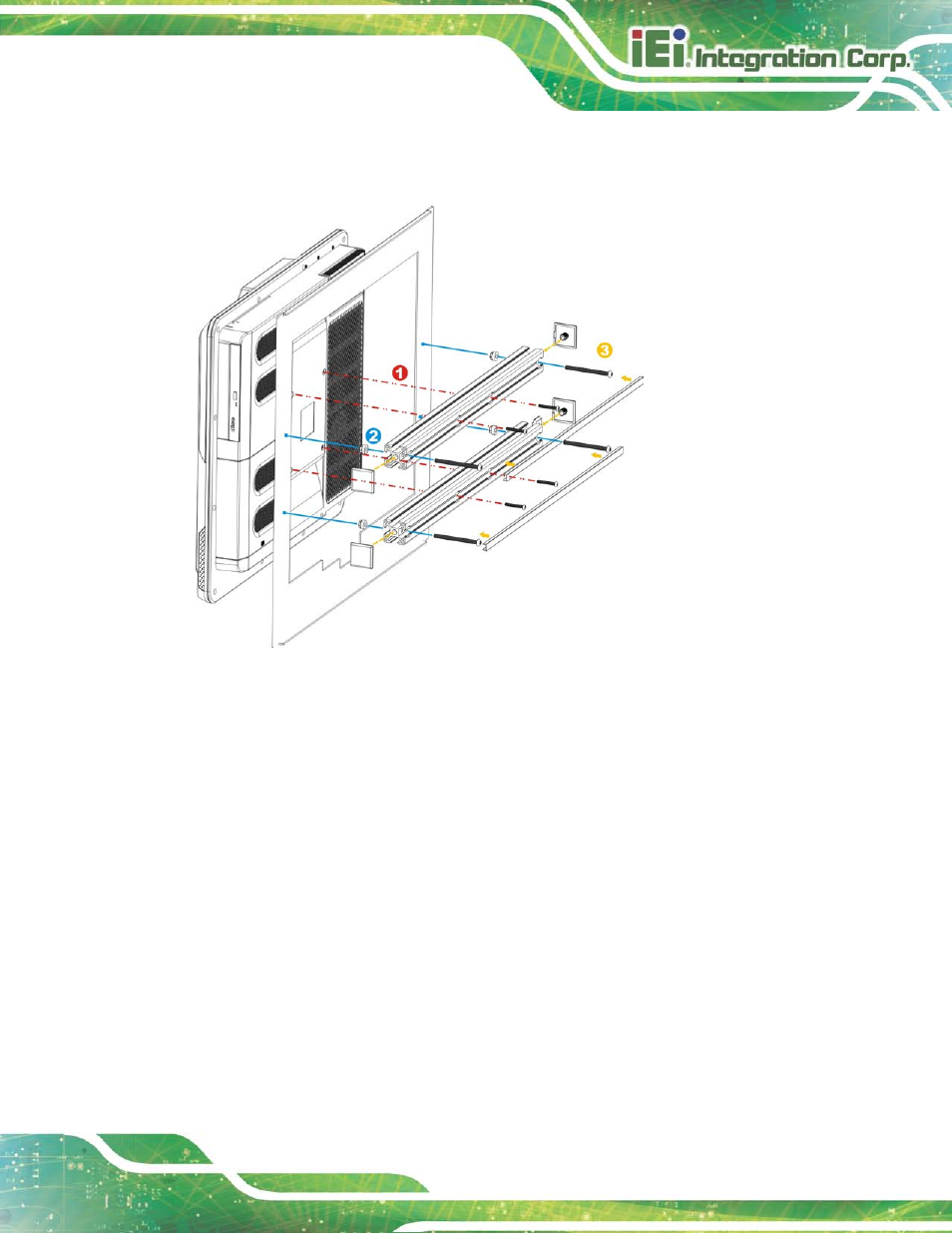

S te p 8: Install the covers into the panel mounting bracket. Each mounting bracket
includes two side covers and one top cover (Figure 5-20

).
Figure 5-20: Tighten the Panel Mounting Clamp Screws
5.13.3 S ta n d Mo u n tin g
To mount the AFL2-17A/AB-H61 using the stand mounting kit, please follow the steps
below.
S te p 1: Locate the screw holes on the rear of the AFL2-17A/AB-H61. This is where the
bracket will be attached. (Figure 5-21)
