The USB combo port and LAN/USB combo port provides connectivity to five additional
USB devices. USB devices connect directly to the USB connectors on the rear panel.
PIN DESCRIPTION PIN DESCRIPTION
1 +5 V 5 +5 V
2 D- 6 D-
3 D+ 7 D+
4 GND 8 GND
Table 3-26: USB Connector Pinouts
3.3.7 VGA Connector
CN Label: VGA
CN Type: D-sub 15-pin female connector
CN Location: See
8
Figure 3-19
CN Pinouts: See
8
Figure 3-25 and
8
Table 3-27
The standard 15-pin female VGA connector connects to a CRT or LCD monitor.
PIN DESCRIPTION PIN DESCRIPTION PIN DESCRIPTION
1 RED 6 GROUND 11 NC
2 GREEN 7 GROUND 12 SDA
3 BLUE 8 GROUND 13 HSYNC
4 +5V 9 NC 14 VSYNC
5 GROUND 10 GROUND 15 SCL
Table 3-27: VGA Connector Pinouts

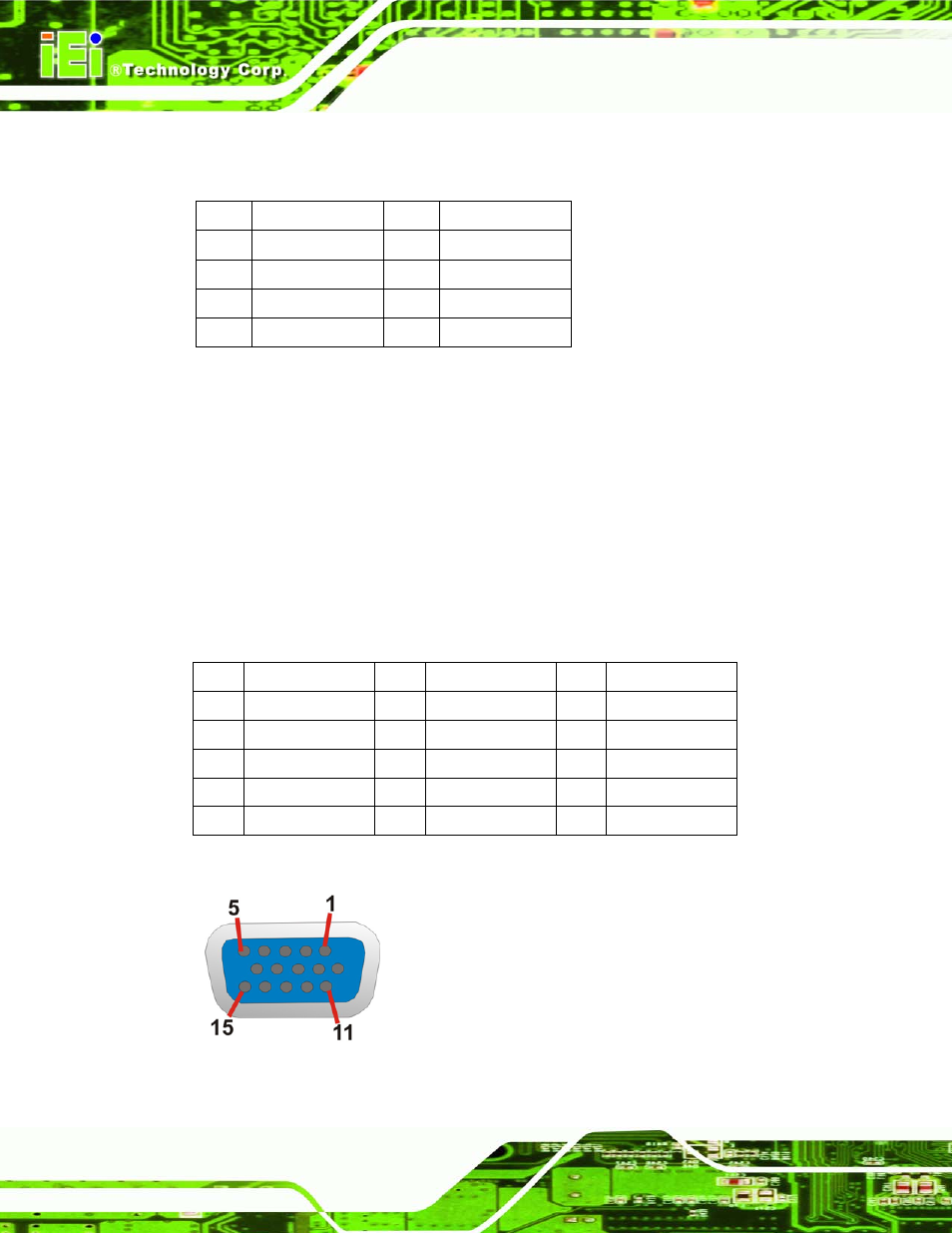

Figure 3-25: VGA Connector
