IMBA-Q454-R10 User Manual

Page 30

3.1 Peripheral Interface Connectors

Section 3.1.2 shows peripheral interface connector locations. Section 3.1.2 lists all the

peripheral interface connectors seen in Section 3.1.2.

3.1.1 IMBA-Q454-R10 Layout

7

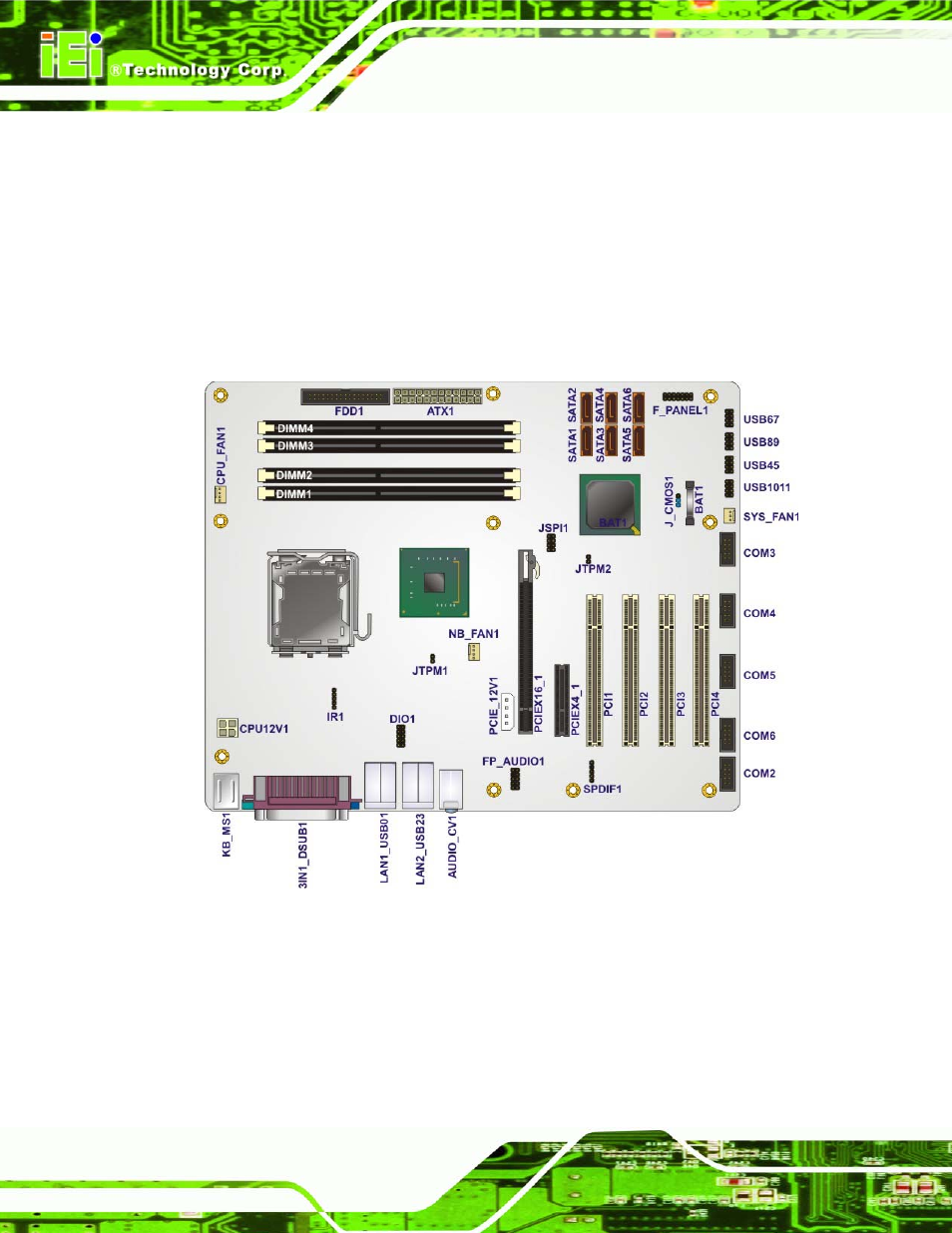

Figure 3-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

Figure 3-1: Connector and Jumper Locations
