IMBA-Q454-R10 User Manual
Page 178
8.1 iSMM Introduction
The IEI Intelligent System Management Module (iSMM) application monitors and shows
the voltage, fan speed, temperature, and watchdog time, DIO and cash drawer information
of the system. The users can control the setting in the following pages:
ƒ Voltage Page
ƒ Fan Page
ƒ Temperature Page
ƒ DIO Page
ƒ WDT Page
ƒ Cashdrawer Page
8.2 iSMM Installation
Follow the steps below to install the iSMM application.
Step 1: Insert the utility CD that came with the IMBA-Q454-R10 into a CD drive
connected to the system.
Step 2: Click the setup.exe in the IEI iSMM folder.
Step 3: The welcome screen in
960H
Figure 8-1 appears.

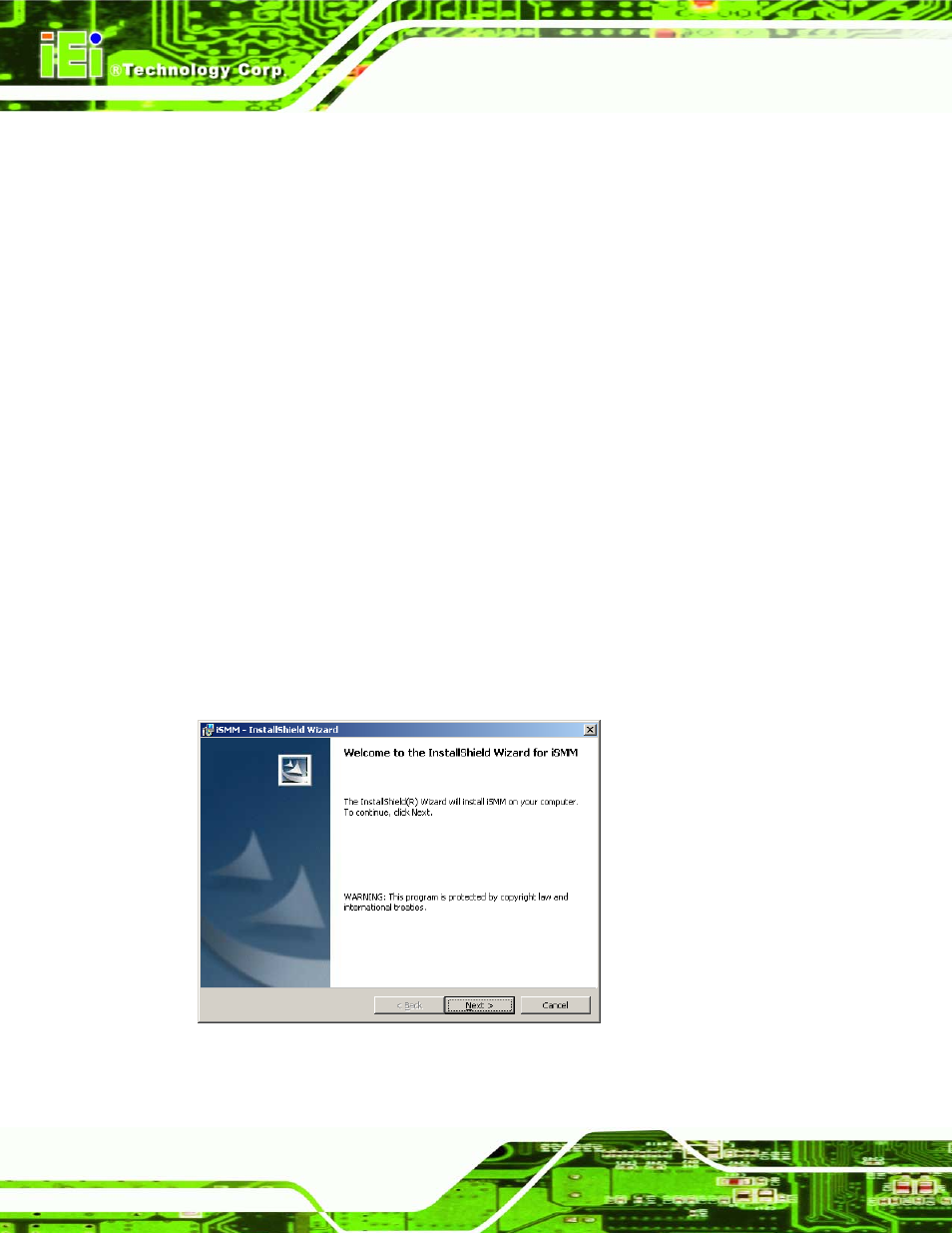

Figure 8-1: iSMM Installation Welcome Screen
