Q-3433 MKII™

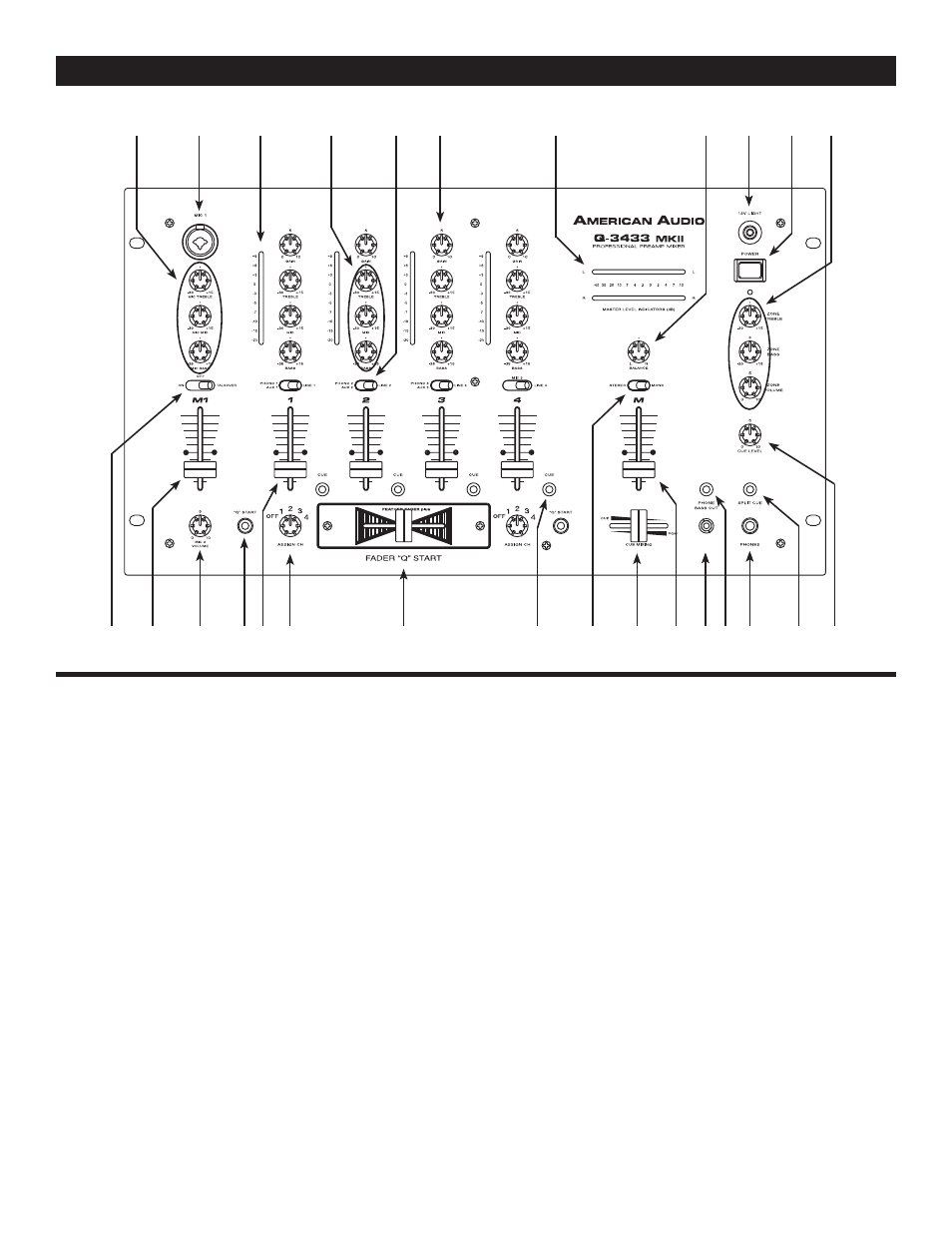

FRONT PANEL - CONTROLS AND FUNCTIONS

American Audio

- www.americanaudio.us - Q-3433 MKII User Instructions page 8

1. MICROPHONE EQ SECTION -

MICROPHONE BASS CONTROL - This knob is used to adjust the low frequency levels of the

microphone with a maximum signal gain of +15dB or maximum signal decrease of -35dB. Turning the
knob in a counter-clockwise direction will decrease the amount of bass applied to the microphone
signal, turning the knob in a clockwise direction will increase the amount of bass applied to micro-
phone signal.

MICROPHONE MIDRANGE CONTROL - This knob is used to adjust the midrange levels of the

microphone with a maximum signal gain of +15dB or maximum signal decrease of -30dB. Turning
the knob in a counter-clockwise direction will decrease the amount of midrange applied to the micro-
phone signal, turning the knob in a clockwise direction will increase the amount of midrange applied
to microphone signal.

MICROPHONE TREBLE CONTROL - This knob is used to adjust the treble levels of the

Microphone with a maximum signal gain of +15dB or maximum signal decrease of -30dB. Turning the
knob in a counter-clockwise direction will decrease the amount of treble applied to the microphone
signal, turning the knob in a clockwise direction will increase the amount of treble applied to micro-
phone signal.
2. MICROPHONE 1 - This combo jack will accept a standard 1/4 plug or XLR 3-pin balanced male
plug. The volume output level for this microphone will be controlled by its own respective CHANNEL
FADER (26).

Note: We recommend that you use a 500-600ohm microphone for the best sound
