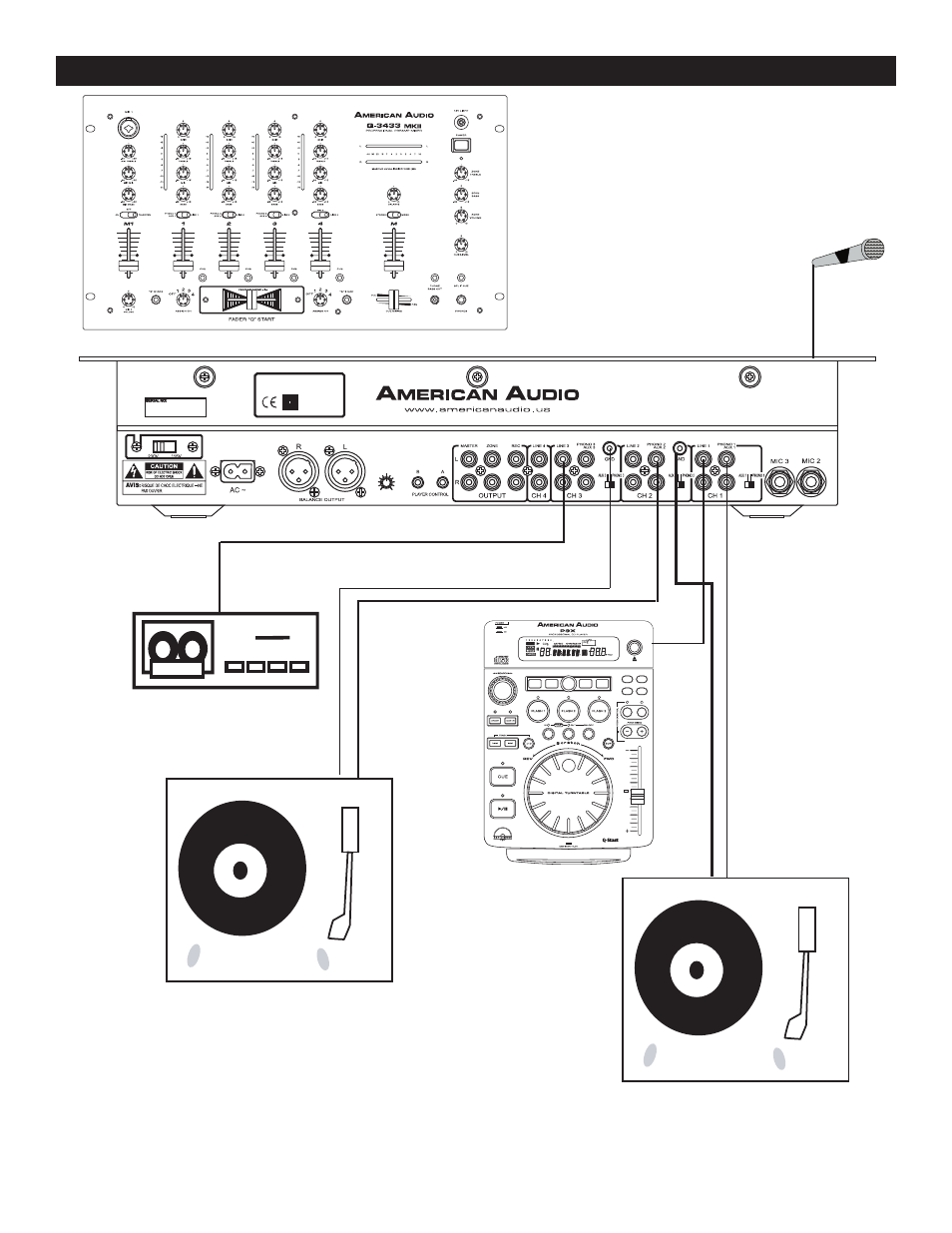

This image details a typical DJ Set Up consisting of a microphone, turn-
tables, CD players, and a tape deck.
Note: Turntables can only be connected to the PHONO LEVEL
RCA JACKS (32, 33, & 34). Be sure the LINE LEVEL SELECTOR
SWITCHES (31) are in the "PHONO" position when using turntables.
Q-3433 MKII™ SET-UP INSTRUCTIONS
