Q-3433 MKII™

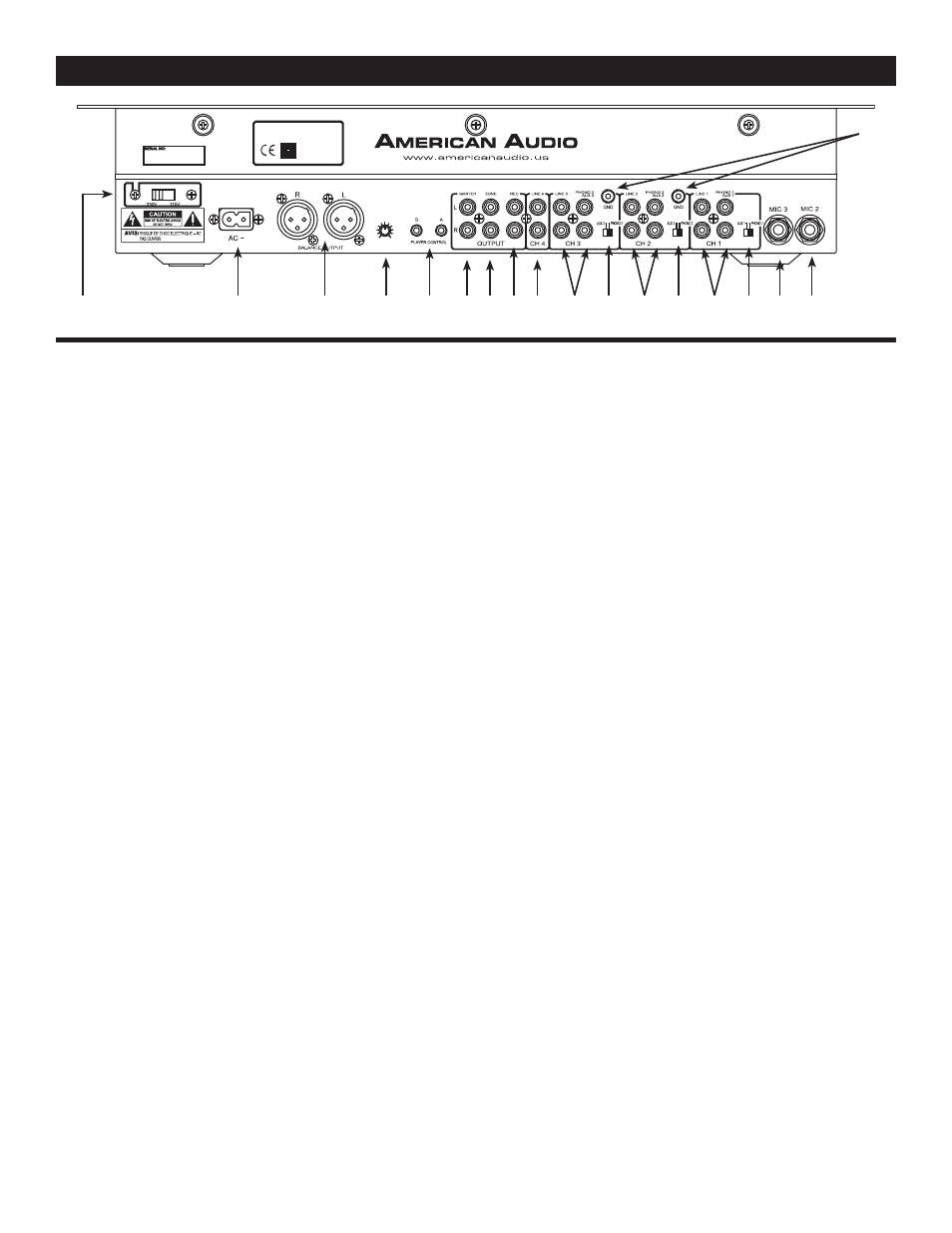

REAR PANEL - CONTROLS AND FUNCTIONS

American Audio

- www.americanaudio.us - Q-3433 MKII User Instructions page 12

28. GND (GROUND TERMINAL) - Be sure to connect turntable ground leads to either or both of
the two available ground terminals. This will reduce the humming and popping noises associated
with magnetic phono cartridges.
29. MICROPHONE 2 CONNECTOR - This jack is used to a connect a microphone to the mixer.
Connect you microphone via this 1/4 inch (6.3mm) jack. The volume output level for this microphone
will be controlled by its own respective CHANNEL KNOB (25).
30. MICROPHONE 3 CONNECTOR - This jack is used to a connect a microphone to the mixer. Con-
nect you microphone via this 1/4 inch (6.3mm) jack. This microphone will be controlled through the
channel 4 fader. The channel 4 EQ will also effect the microphone output. Be sure to ﬂip the

SOURCE

SELECTOR SWITCH (5) to the “MIC 3” position to operate this microphone’s input signal.
31. CHANNEL LINE LEVEL SELECTOR SWITCHES - These switches are used to change the volt-
age line levels of there respected Phono / Aux RCA inputs jacks. When connecting turntables with
magnetic cartridges to these jacks be sure the corresponding switch is in the “PHONO” position,
and when using line level input devices be sure this switch is in the “AUX” position. Always be sure
main power is shut off before change the position of the Line Level Selector Switch.
32. CHANNEL 1: PHONO 1/AUX 1 INPUT - The type of input must directly reﬂect the selected mode
of the

LINE LEVEL SELECTOR SWITCH (31). Turntables equipped with MM pickup cartridge (All DJ

turntable use MM pick-up cartridges) may be connected to these jacks as long as the LINE LEVEL
SELECTOR SWITCH (31) is in the “PHONO 1” position. CD players, Tape Decks and other line level
instruments may only be connected to these jacks as long as the LINE LEVEL SELECTOR SWITCH
(31) is in the “AUX 1” position. Never connect line level instruments (CD players, tape decks, etc.)
to these jacks when the LINE LEVEL SELECTOR SWITCH (38) is in the “PHONO 1” position, THIS
MAY SERIOUSLY DAMAGE YOUR MIXER! The red colored RCA jack represents the right channel
input and the white represents the left channel input. Input volume will be controlled by the channel
one

fader. The channel SOURCE SELECTOR SWITCH (5) must be in the "Phono 1/Aux 1" position,

to monitor any source connected to these jacks.
CHANNEL 1: LINE 1 INPUT JACKS - DO NOT CONNECT TURNTABLES TO THESE JACKS!
CD players, Tape Decks and other line level instruments may be connected to these jacks. The red
colored RCA jack represents the right channel input and the white represents the left channel input.
Input volume will be controlled by channel one fader. The channel SOURCE SELECTOR SWITCH (5)
must be in the "Line 1" position, to monitor any source connected to these jacks.
33. CHANNEL 2: PHONO 2/AUX 2 INPUT - The type of input must directly reﬂect the selected
mode of the LINE LEVEL SELECTOR SWITCH (21). Turntables equipped with MM pickup cartridge
(All DJ turntable use MM pick-up cartridges) may be connected to these jacks as long as the LINE

MADE IN CHINA

MODEL NO.: Q-3433 MKII

POWER SOURCE:

115/230V~ 50/60Hz 20W

MIN

MAX

TRIM OUTPUT

39 38 37 36

35 34
