VFD Control Box - Standard w/Fire Suppression

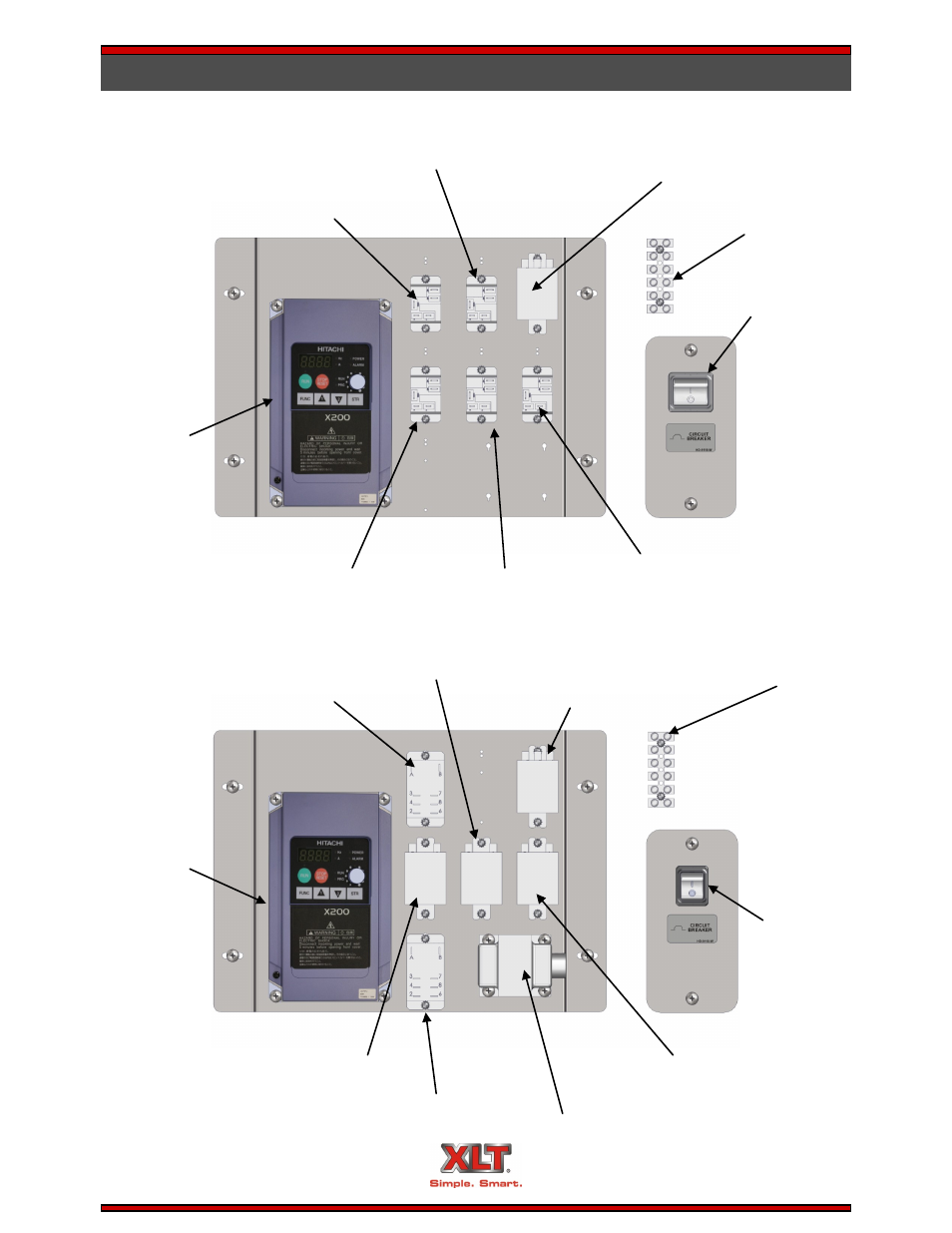

AVI HOOD ELECTRICAL CONNECTIONS
VFD Control Box - World w/Fire Suppression
MUA Damper Relay (R6)
MUA Damper Relay (R5)
MUA Damper Relay (R4)
Terminal Strip
Circuit Breaker
VFD Controller
Cooling Fan Relay (R1)
Fire Suppression Relay, Exhaust Fan (R2)
Terminal Strip
Circuit Breaker
VFD Controller
Cooling Fan Relay (R1)
Air proving Circuit Relay (R2)
Fire Suppression Relay, Oven (R3)
Fire Suppression Relay Middle Oven (R4)
Fire Suppression Relay Bottom Oven (R5)
Transformer
Fire Suppression Relay Ex Fan (R6)
Fire Suppression Relay Top Oven (R3)
