MX5
Owner’s Manual
Assembly
1. Remove all parts from the shipping carton and check assem-

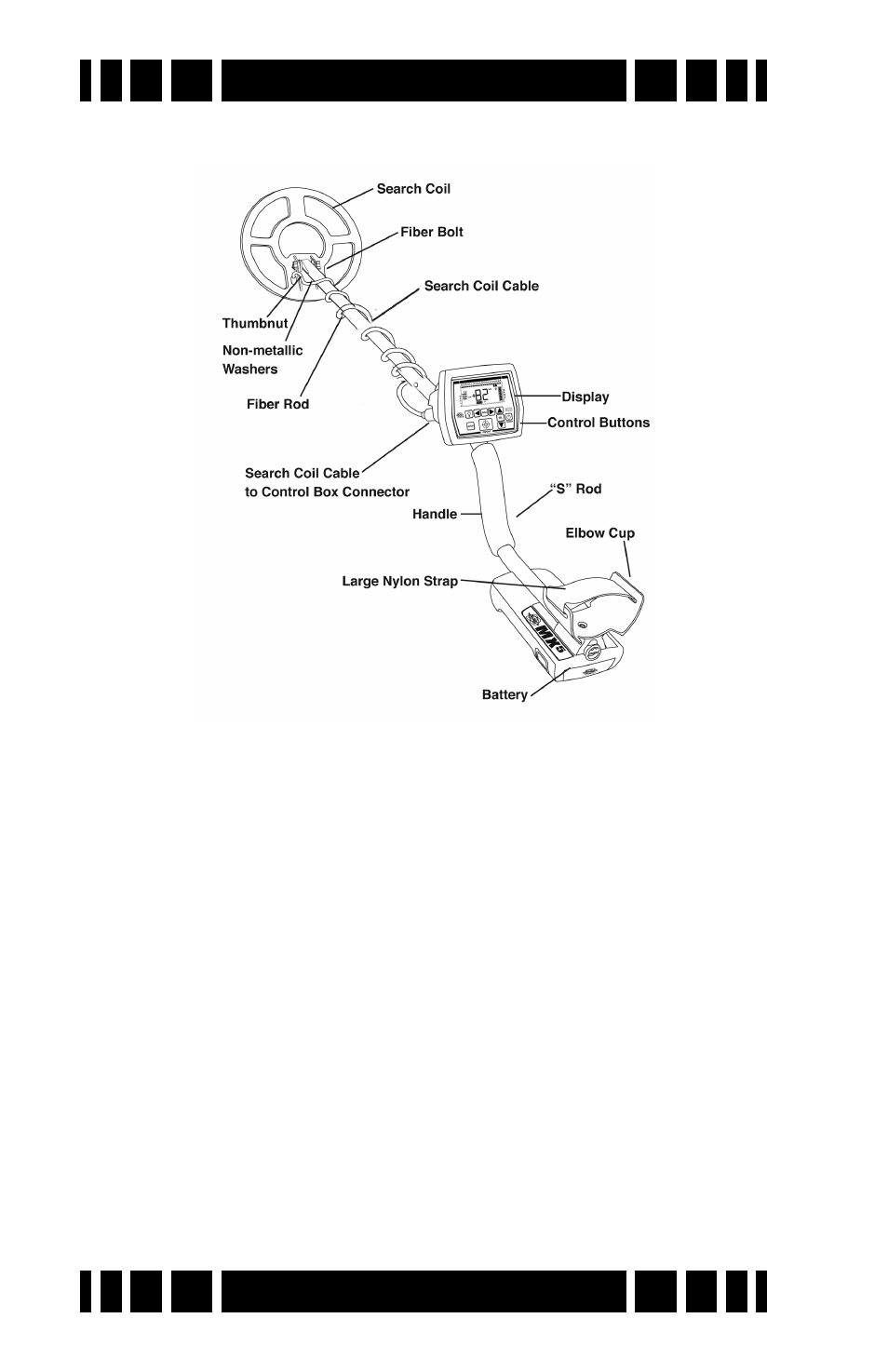

bly diagram to ensure all parts are present.
2. Install black rubber washers on fiber clevis/lower rod, insert
clevis lower rod onto loop ears. Use only nonmetallic wash-
ers, fiber bolt, and fiber thumb nut to secure loop/search coil
to clevis/lower fiber rod.
3. Insert middle rod into curved “S” rod so that the spring clip
engages. Insert lower fiber rod and lock into one of the
adjustment holes in the middle rod. The second or third
adjustment holes are suitable for average sized adults. A
twist of the cam locks prevents wobble.
4. Wind the loop cable around the rod assembly, first revolu-
tion over the top of the rod, all the way to the top of the
curved “S” rod, about five revolutions. Use the black cable
retainers, one near the loop, and one near the top of the
curved “S” rod, to hold the loop cable in place. Plug the
