WIRING DIAGRAM
Key
CH1 Battery charger
C1 Battery connector
C2 Battery charger connector
EB1 Electronic board
ES1 Electromagnetic switch
F1 Main fuse (60 A)
F2 Side broom fuse (15 A)
F3 Filter shaker fuse (15 A)
M1 Main broom motor
M2 Side broom motor
M3 Filter shaker motor
R1 Filter shaker relay
SW1 Ignition switch
SW2 Hood safety switch
SW3 Filter shaker switch
Colour code
BK Black
BU Blue
BN Brown
GN Green
GY Grey
OG Orange
PK Pink
RD Red
VT Violet
WH White
YE Yellow

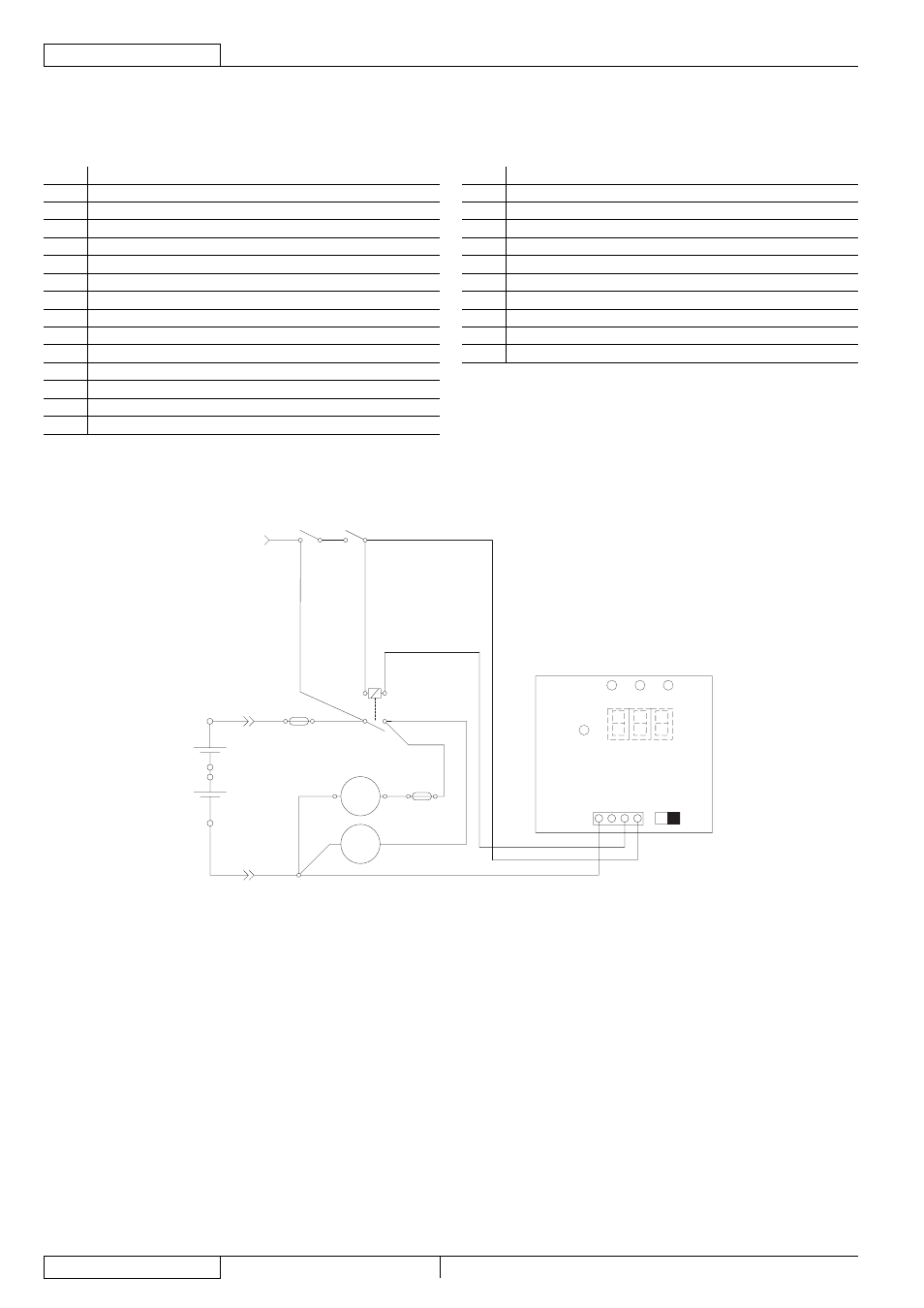

STANDARD WIRING DIAGRAM
ES1
EB1
BATTERIES 12V
SW2 SW1
M1
M2
F1
F2
BK BK
BK
BK
RD
RD RD RD
RD
GY
GY
BU
OG
OG
WH
C1
C1
C2
BN
-
+
+
-
Pb Gel V+ V- Out
