USER MANUAL ENGLISH
SW 850S B 146 0789 000(4)2007-03 A 7

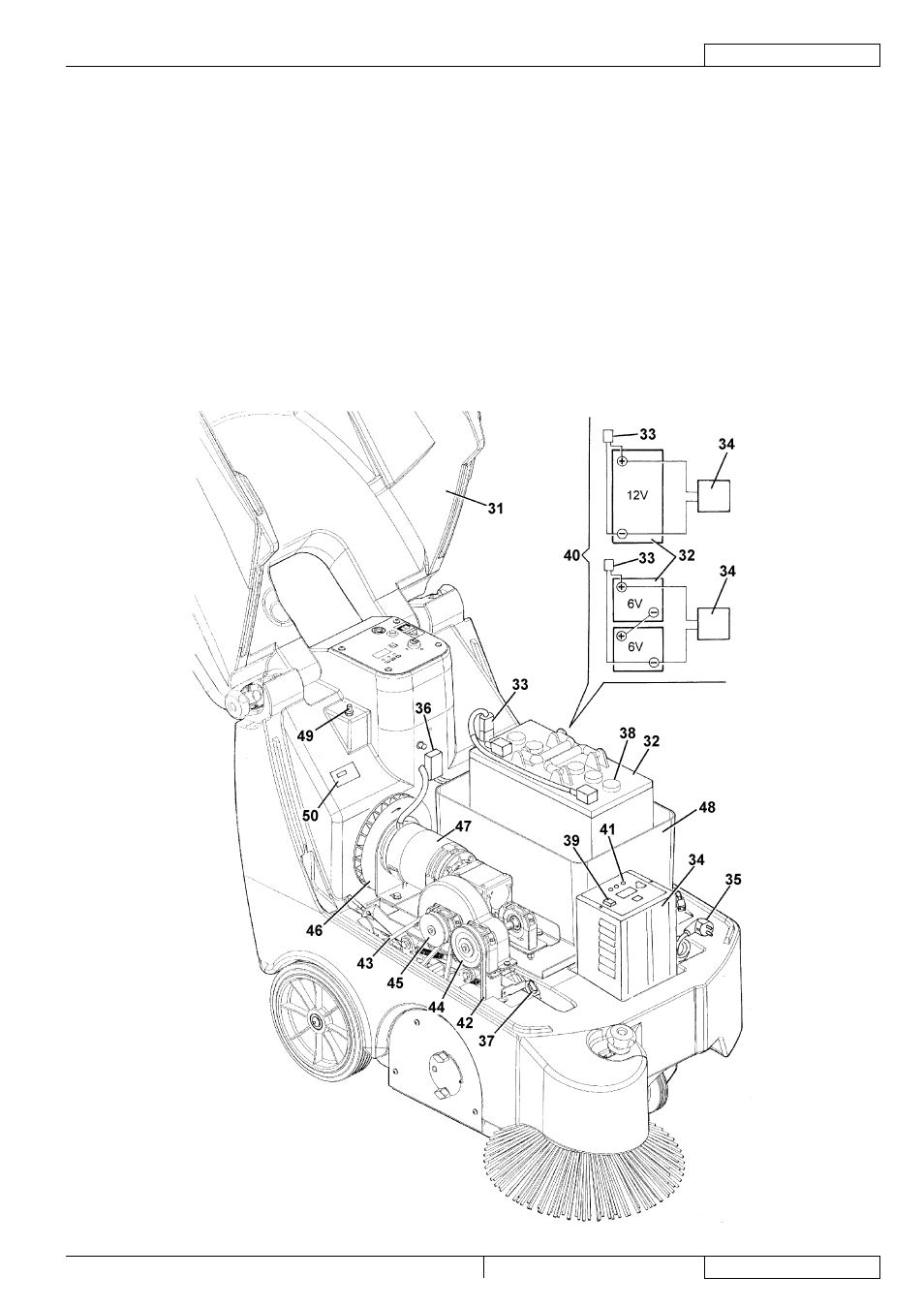

MACHINE STRUCTURE (Continues)
S311452
Hood (open)
Batteries
Battery connector
Electronic battery charger (optional)
Electronic battery charger cable
Main fuse
Side broom fuse
Battery caps (for WET batteries only)
Lead (WET) or gel (GEL) battery selector on the optional
electronic battery charger
Battery connection diagram
Charged battery warning light (green)
Main broom belt
Driving belt 31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
Main broom drive pulley
Rear wheel drive pulley
Vacuum fan
Main motor
Battery case
Hood safety switch
Serial number plate/technical data/conformity certifi cation 44.
