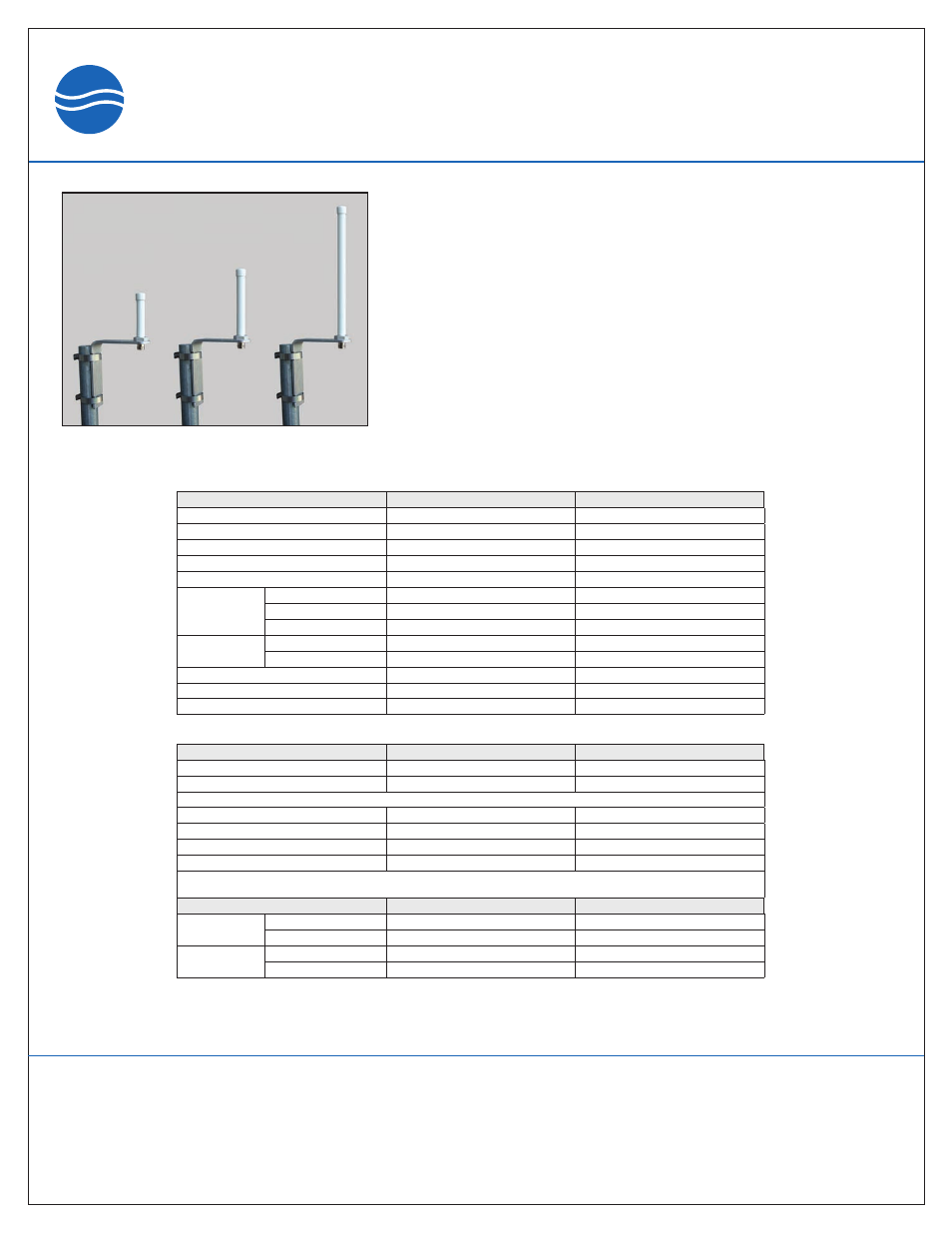

These Omni-directional antennas are designed for the licensed 3.5 GHz WiMax
frequency band. The antennas act as a base station or cell site for a multiple point
network. The mounting bracket is included to wall mount, pole mount or masting.
3.5 GHz Omni-directiOnal antennas
WADE Antenna Inc.
29 Sharp Road
Brantford, Ontario, N3T 5L8 Canada
Tel: 519.756.7157
Fax: 519.756.5056
WADE
Antenna, Inc.
OM-3.5-7
•
OM-3.5-9
•
(800) 463-1607
www.wadeantenna.com
applicatiOn
Wireless Internet cell site/base station
•
WiMax 802.16
•
W A D E A n t e n n a’s o n g o i n g p o l i c y o f c o n t i n u i n g d e v e l o p m e n t m a y r e s u l t i n s p e c i f i c a t i o n c h a n g e s t o i t s p r o d u c t s .
descriptiOn
Electrical
MODEL
OM-3.5-9
OM-3.5-7
FREQUENCY
3.4 - 3.65 GHz
3.3 - 3.8 GHz
GAIN
9 dBi
7.5 dBi
IMPEDANCE
50 Ohm
50 Ohm
POLARIZATION
Vertical
Vertical
CROSS POL REJECTION
20 dB
20 dB
VSWR
Min
1.1
1.1
Max
1.5
1.5
Typical
1.3
1.3
HPBW
Horz.
360 Deg.
360 Deg.
Vert.
20 Deg.
37 Deg.
STD. CONNECTOR
N Female
N Female
MAX. INPUT POWER
50 Watts
50 Watts
OPERATING TEMPERATURE
-40 - -80C
0
-40 - -80C
0
Mechanical
MODEL
OM-3.5-9
OM-3.5-7
NUMBER OF ELEMENTS
4
3
OVERALL LENGTH
13.25”
10.75”
Mounting Options
TYPE
Worm Clamp
Worm Clamp
MAST SIZE (O.D. in inches)
1.625 - 2.0
1.625 - 2.0
AZ. ADJUST
360C
0
360C
0
EI. ADJUST
0C
0
0C
0
Wind Loading
MODEL
OM-3.5-9
OM-3.5-7
WIND AREA
(No Ice)
0.095
0.08
(1/2” Radial Ice)
0.27
0.25
WIND LOAD
*(No Ice)
2.54
2.14
** (1/2” Radial Ice)
7.23
6.7
speciFicatiOns
W
ADE
A
NTENNA
L
TD.
These Omni-directional antennas are designed for the licensed
3.5 GHz WiMax frequency band. The antennas act as a base
station or cell site for a multiple point network. The mounting
bracket is included to wall mount, pole mount or masting.
Wireless Internet cell site/base station
WiMax 802.16
Wireless LAN
Point-to-Multipoint wireless networks
DESCRIPTION
APPLICATION
SPECIFICATIONS
ELECTRICAL
MECHANICAL
MODEL
FREQUENCY
GAIN
IMPEDANCE
VSWR
POLARIZATION
HPBW “H” PLANE
“E” PLANE
CROSS POL REJECTION
CONNECTOR
MAXIMUM INPUT POWER
3.5 GHz Omni-directional
Antennas:
OM-3.5-4
OM-3.5-6
OM-3.5-8
OM-3.5-6
3.4 - 3.7 GHz
6 dBi
50 Ohm
< 2:1
Vertical
360 Deg.
30 Deg.
20 dB
N Female
50 Watts
OM-3.5-8
3.4 - 3.7 GHz
8 dBi
50 Ohm
< 2:1
Vertical
360 Deg.
19 Deg.
20 dB
N Female
50 Watts
RADOME
ANTENNA SIZE
DIAMETER
WEIGHT
MOUNT
Polycarbonate
6.5"
0.625"
0.115 lbs
4.825" x 5.75"
Polycarbonate
9.25"
0.625"
0.140 lbs
4.825" x 5.75"
Polycarbonate
17.25"
0.625"
0.190 lbs
4.825" x 5.75"
Wade Antenna Ltd.
29 Sharp Road
Brantford, Ontario, N3T 5L8
Canada
www.wade-antenna.com
Distributed by:
Wade Antenna’s ongoing policy of continuing development may result in specification changes to its products.
OM-3.5-4
3.4 - 3.7 GHz
4 dBi
50 Ohm
< 2:1
Vertical
360 Deg.
48 Deg.
20 dB
N Female
50 Watts
Wireless LAN
•
Point-to-Multipoint wireless networks
•
* Wind Speed = 100MPH at sea level with 100% humidity at 70
0
F
* Wind Speed = 50MPH at sea level with 100% humidity at 0
0
F
