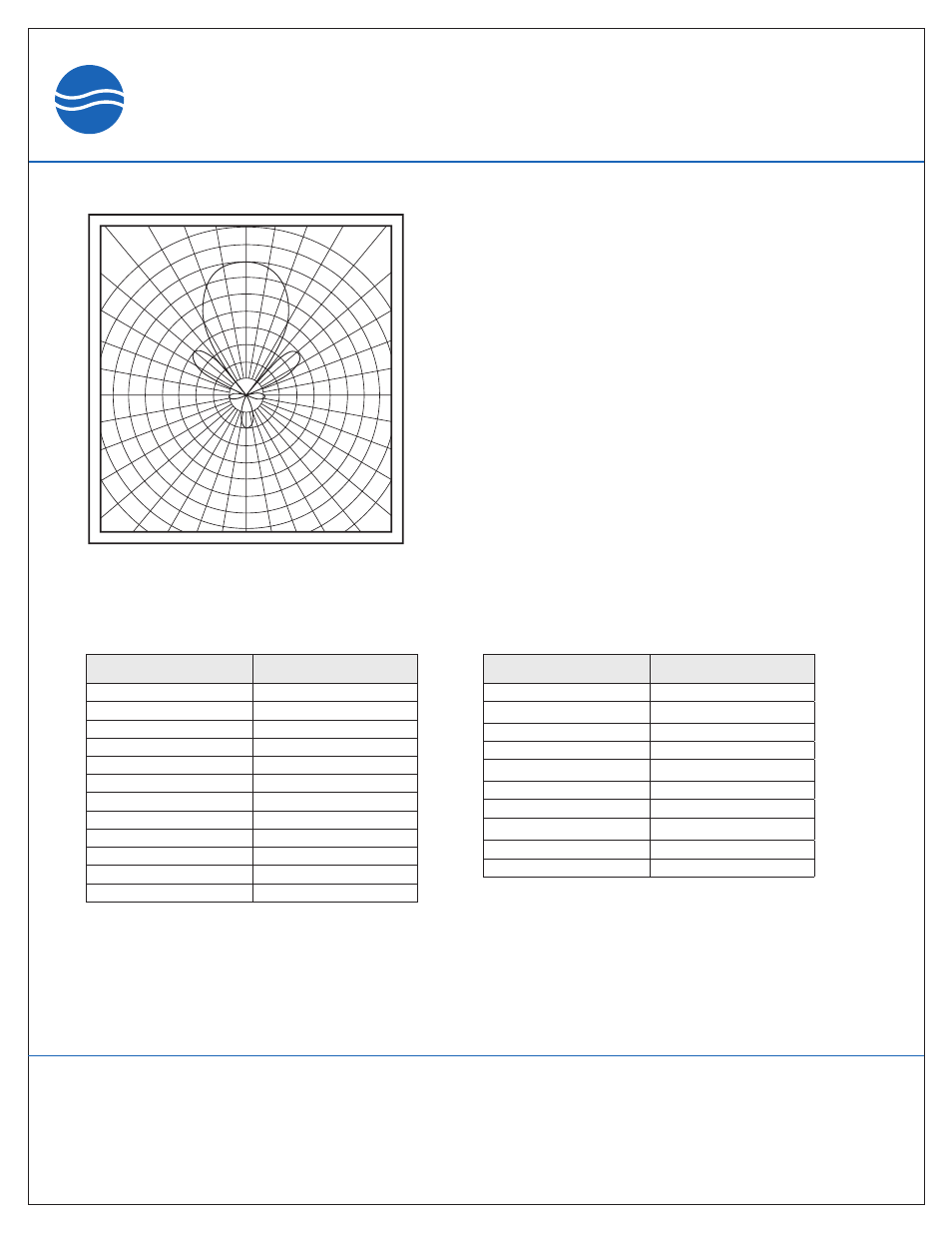

Wade Antenna WL7-13_VP - Manual

WADE Antenna Inc.
29 Sharp Road
Brantford, Ontario, N3T 5L8 Canada
Tel: 519.756.7157
Fax: 519.756.5056
WADE Antenna, Inc.
(800) 463-1607
[email protected]
www.wadeantenna.com
This array has been engineered for maximum gain with
narrow vertical beam width to reduce the effects of man-
made noise in the immediate foreground. Where fixed
sources of noise such as power lines exist, it may be
possible to improve the signal to interference ratio with a
custom designed array.
HIGH BAND VERTICAL
PAIR ARRAY MODEL:
• WL 7-13/VP
SPECIFICATIONS:
ElEctrical
Specification WL 7-13/VP
FREQUENCY RANGE 174-216 MHz
CHANNELS 7 To 13
GAIN 14.5 dBi
IMPEDANCE 75 Ohm
VSWR <1.3:1
FR:BK RATIO >25 dB
POLARIZATION H or V
H. BEAM WIDTH 50 deg.
V. BEAM WIDTH 27 deg.
SIDE LOBE SUPPRESSION* >30 dB
CONNECTORS** “F” Connector
STD. MOUNT 1/2" U-Bolts to Fit 3" O.D. Pipe
*these standard arrays have been designed for maximum forward gain
and best overall sidelobe performance. where interfering signals such
as co-channel, adjacent channel and ghosting are present, custom
arrays can be designed to reduce the level of interference by as much
as 40 db in most cases.
VERTICAL PAIR
A qualified structural engineer should be consulted prior to mounting an antenna on a tower or a support structure.
WiND aND icE lOaDiNG
Specification WL 7-13/VP
BOOM LENGTH 96 "
WEIGHT (LBS):
NO ICE* 104
1" RADIAL ICE** 364
WIND LOAD (LBS):
NO ICE* 150
1" RADIAL ICE** 155
WIND TORQUE (Ft-Lbs):
NO ICE* 818
1" RADIAL ICE** 605
*WIND SPEED 100 MPH
**HALF WIND 50 MPH
DIMENSIONS - SEE SINGLE HIGH BAND ANTENNA SPECIFICATIONS.
Printed in Canada 2005
W
ADE
A
NTENNA
L
TD
.
1-800-463-1607
www.wade-antenna.com
WADE ANTENNA
HIGH BAND HORIZONTAL
PAIR ARRAY
MODEL:
ࡗWL 7-13/HP
HORIZONTAL PAIR
The horizontal pair has been engineered for maxi-
mum forward gain with optimum side lobe perfor-
mance. The narrow horizontal beam width re-
duces the effect of man-made noise, co-channel
and other sources of interference off the main
beam. Where specific sources of interference can
be identified, a custom designed array may reduce
the level of interference even further.
WADE LOG PERIODIC ANTENNA
HORIZONTAL PAIR ELECTRICAL SPECIFICATIONS
SPECIFICATION WL 7-13/HP
FREQUENCY RANGE 174-216 MHz
CHANNELS 7 To 13
GAIN 14.5 dBi
IMPEDANCE 75 Ohm
VSWR <1.3:1
FR:BK RATIO >25 dB
POLARIZATION H or V
H. BEAM WIDTH 22 deg.
V. BEAM WIDTH 70 deg.
SIDE LOBE SUPPRESSION
FIRST SIDE LOBE
15 dB
ALL OTHERS * >30 dB
CONNECTORS ** “F” Connector
STD. MOUNT 1/2" U-Bolts to Fit 3" O.D. Pipe
* THESE STANDARD ARRAYS HAVE BEEN DESIGNED FOR MAXIMUM FORWARD GAIN AND BEST OVERALL SIDELOBE
PERFORMANCE. WHERE INTERFERING SIGNALS SUCH AS CO-CHANNEL, ADJACENT CHANNEL AND GHOSTING ARE
PRESENT, CUSTOM ARRAYS CAN BE DESIGNED TO REDUCE THE LEVEL OF INTERFERENCE BY AS MUCH AS 40 dB IN
MOST CASES.
A-15
40 30 20 10 0 350 340 330 320
310
300
290
280
270
260
250
240
230
140 150 160 170 180 190 200 210 220
50
60
70
80
90
100
110
120
130
10
5
0
-5
15
20
25
30
35
10
5
15
20
25
30
35
