Wade Antenna Y102B-130V User Manual

Antenna, Taco, Specifications

TACO

Antenna

A d i v i s i o n o f W A D E A n t e n n a , I n c .

TACO Antenna’s ongoing policy of continuing development may result in specification changes to its products.

US And InTernATIOnAl SAleS AGenT

CAnAdIAn SAleS OFFICe

TACO Antenna

A divsion of Wade Antenna, Inc.

29 Sharp Road,

Brantford, Ontario, N3T 5L8, Canada

Tel: 519.756.7157

Fax: 519.756.5056

[email protected]

TACO Antenna Sales Rep

Tel: 717.975.0885

Toll Free: 866.975.4433

Fax: 717.763.0469

Email: [email protected]

Web Site: www.tacoantenna.com

Model Y102B-130

TACO

Communications Inc.

MODEL Y102B-130V

Electrical Specifications

FREQUENCY RANGE

118-136 MHz

GAIN (dBi)

VSWR 2:1
POLARIZATION VERTICAL
HPBW (NOMINAL, DEGREES)

E-PLANE 50

H-PLANE 65

TERMINAL TYPE

“N”

IMPEDANCE

50 Ohm

APPLIED POWER

150 W

Mechanical Specifications

LENGTH

102.25 INCH (259.7 CM)

LONGEST ELEMENT

50.0 INCH (127.0 CM)

WEIGHT

22.0 LBS. (10.0 KG)

MOUNT

1.25 INCH (IPS) or 2.5 INCH (IPS)

WINDLOADING

150 LBS. (68.04 KG)

TACO Communications Inc.

5512 Bearcreek Drive

Mechanicsburg, PA 17050

(P) 717.975.0885

(F) 717.763.0469

Web Site: tacocommunications.com

TACO Communications Inc.

214 Victoria Street

Simcoe, ON N3Y 4L2

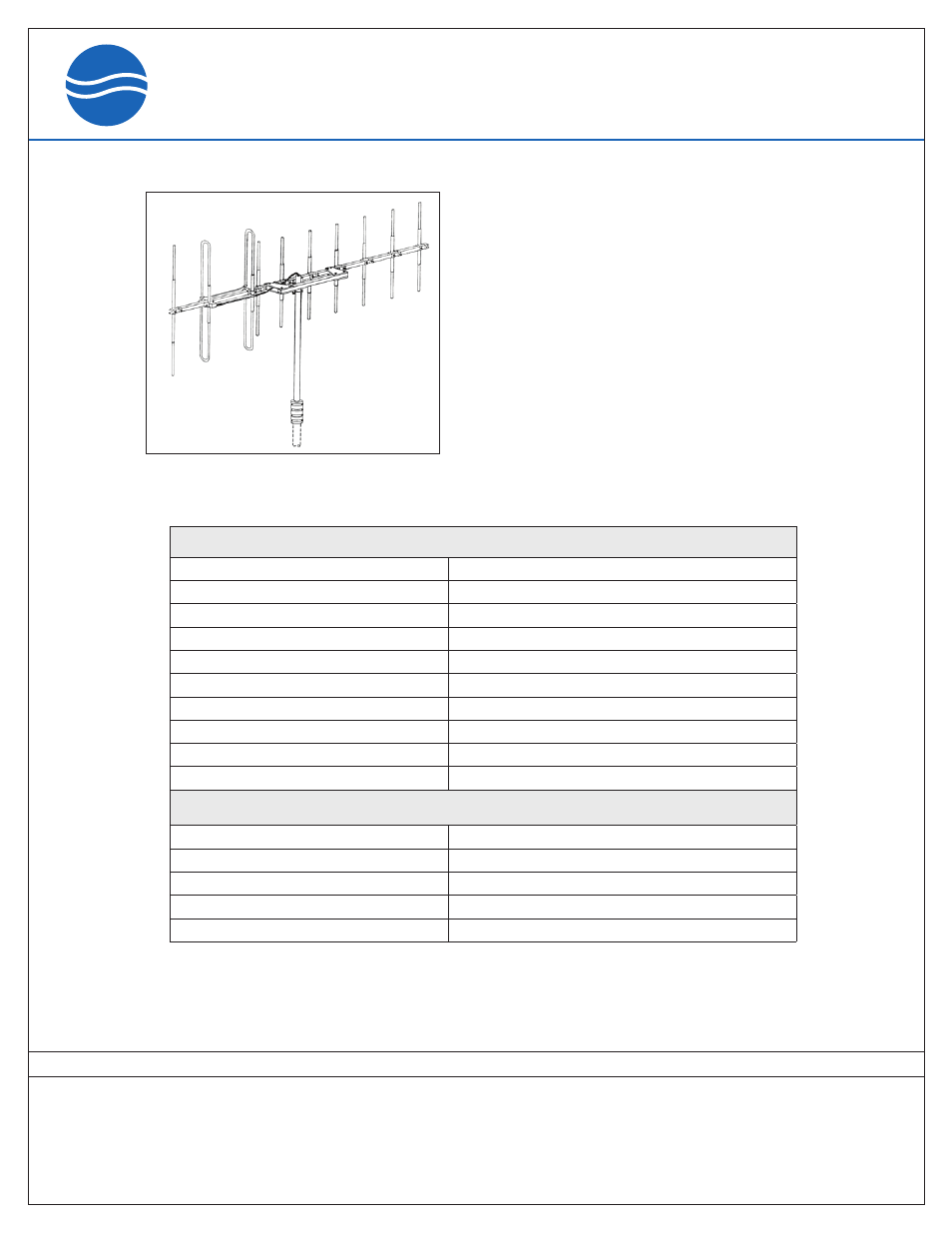

The Y102B-130V Yagi antenna operates

between 118 and 136 MHz. This rugged 50

Ohm antenna is one of several models

manufactured by TACO. Visit our web site

for more details.

The Y102B-130V Yagi antenna operates
between 118 and 136 MHz. This
rugged 50 Ohm antenna is one of
several models manufactured by TACO.
Visit our web site for more details.

ELECTRICAL
FREQUENCY RANGE

118-136 MHz

GAIN (dBi)

VSWR

2:1

POLARIZATION

VERTICAL

HPBW (NOMINAL, DEGREES)

E PLANE

H PLANE
