Owner’s Manual Owner’s Manual
4
18
2
3
6
1. Spray Tips Detergent, 0°, 15°, 25° and 40°: for various
high pressure cleaning applications.
2. High Pressure Hose
3. Pressure Control Knob Varies pressure of high pressure spray.
4. Water Inlet Connection for garden hose with filter.
5. Quick Connect for High Pressure Hose.
6. Pump Develops high pressure.
7. Oil Level Indicator Level (included on some units) should be at halfway
8. Detergent Siphoning Tube/Filter Use to siphon pressure washer safe detergent into the low pressure stream.
9. Choke Lever Prepares a cold engine for starting.
10. Fuel Valve Used to turn fuel supply on and off to engine.
11. Recoil Starter Used for starting the engine manually.
12. Throttle Lever Sets engine in starting mode for recoil starter.
13. Engine Switch Set switch to “On” for recoil starting. Set switch to “Off” to stop a running engine.
14. Air Filter Protects engine by filtering dust and debris out of intake air.
15. Fuel Tank. Fill tank with regular unleaded fuel. Always leave room for fuel expansion.
16. Spray Gun and Extension with trigger lock.
17. Oil Dipstick
18. Wand Quick Connect Fitting
19. Tow and Stow TM Gravity Handle
15
13
17
16
7

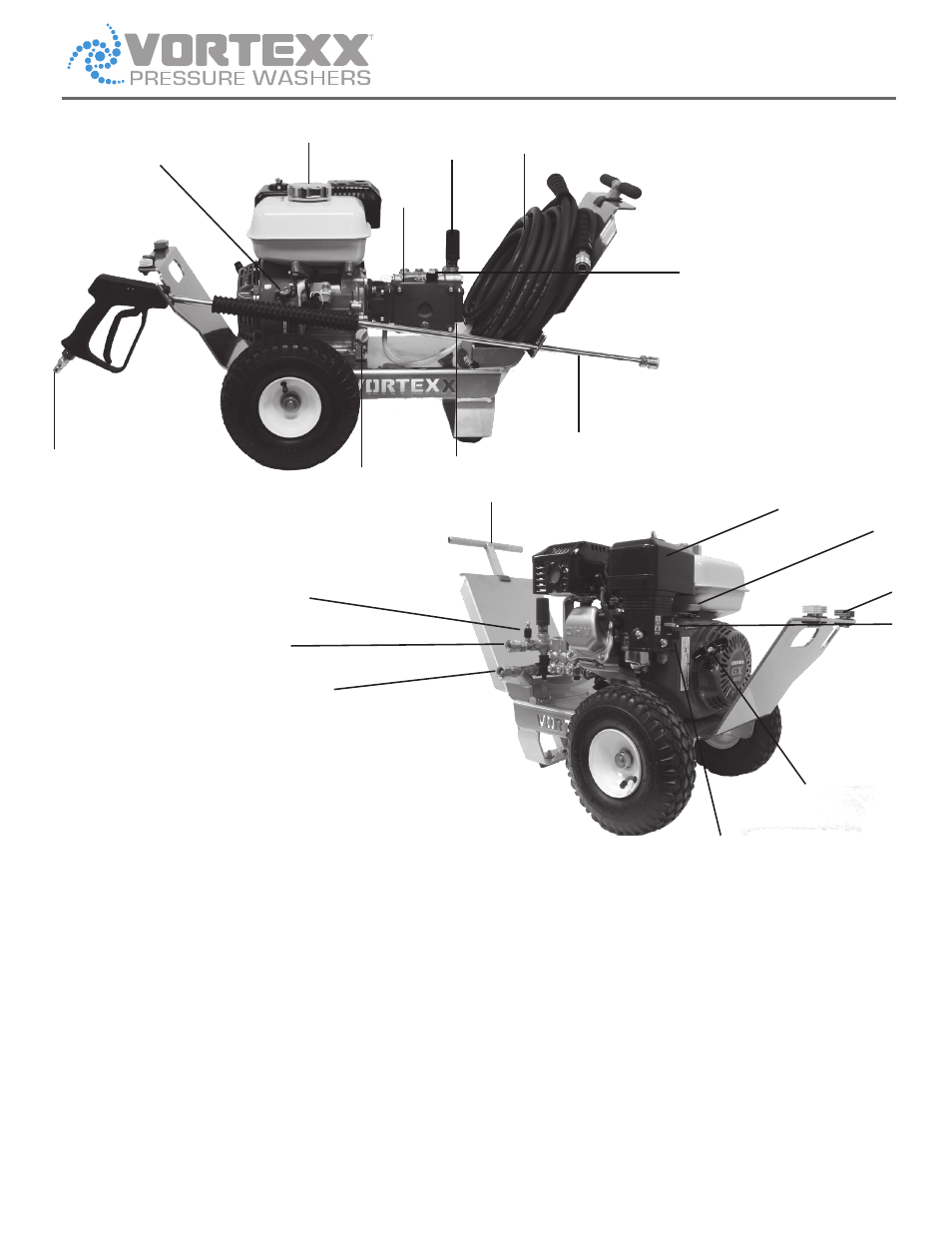

Right Side View
Left Side View
12
1
11
10
5
8
4
14
19
9
Note: Replace red shipping
oil plug with yellow and
black vented cap provided.
