CBPS-300 OPERATING INSTRUCTIONS
10
5.0 OPERATING PROCEDURES
Before using the CBPS-300, operators
should familiarize themselves with the
CBPS-300 controls and indicators. 5.1 CBPS-300 Cable connection
A typical connection diagram of the CBPS-
300 is shown in Figure 3.0.

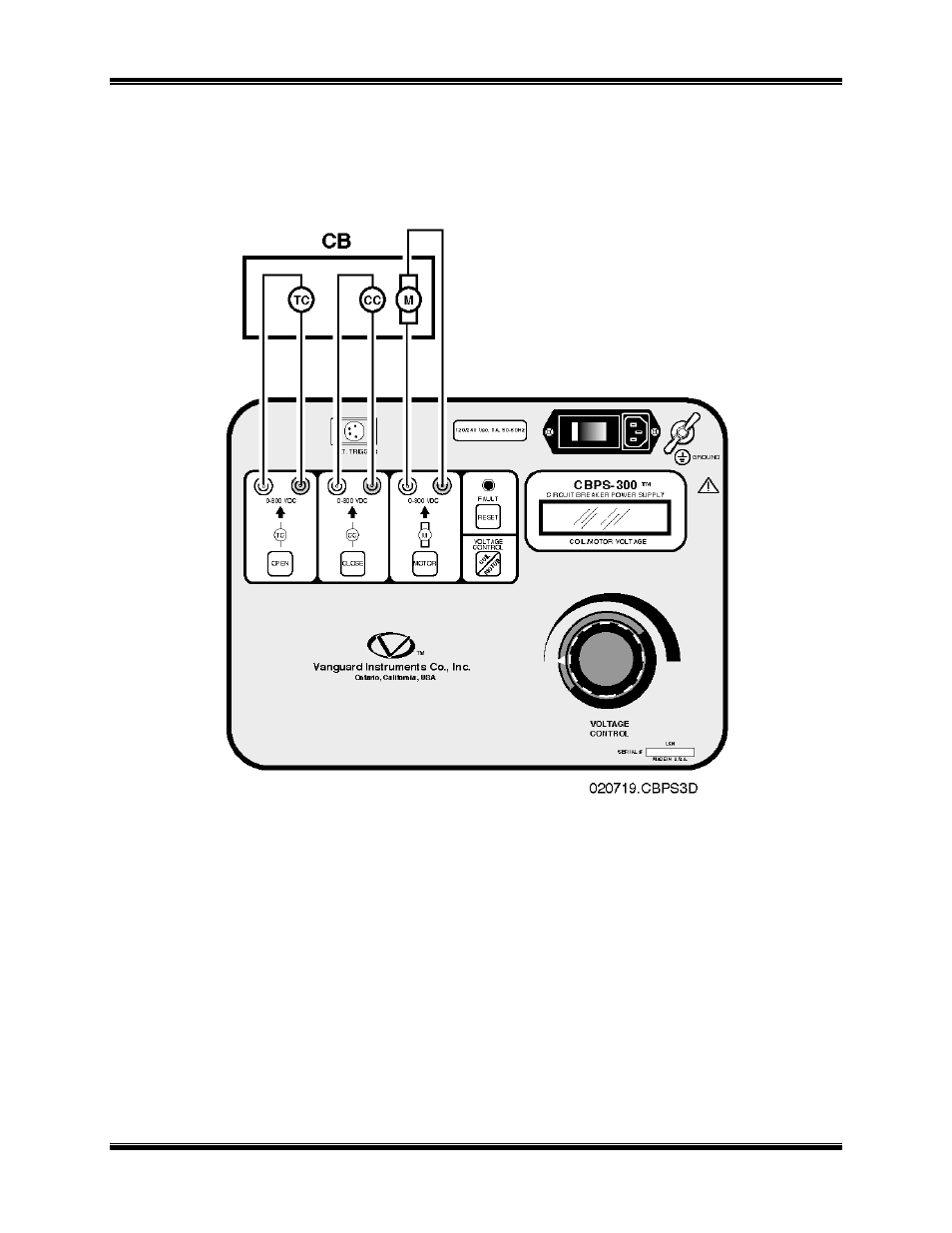

Figure 4.0 Typical CBPS-300 Connection Diagram
.
