Vanguard TTRA (ATRT-01, ATRT-03, ATRT-03A, and ATRT-03B) User Manual
Page 36

TTRA VERSION 12.x SOFTWARE MANUAL
REV 5
33
5.5
Copying Test Plans
To copy a test plan from one location on the PC hard drive to another location:
1. From the File-Util menu, click on Copy and then select Test Plan... (alternatively you can
click on the File menu, click on File Utilities, click on Copy and then select Test Plan...)

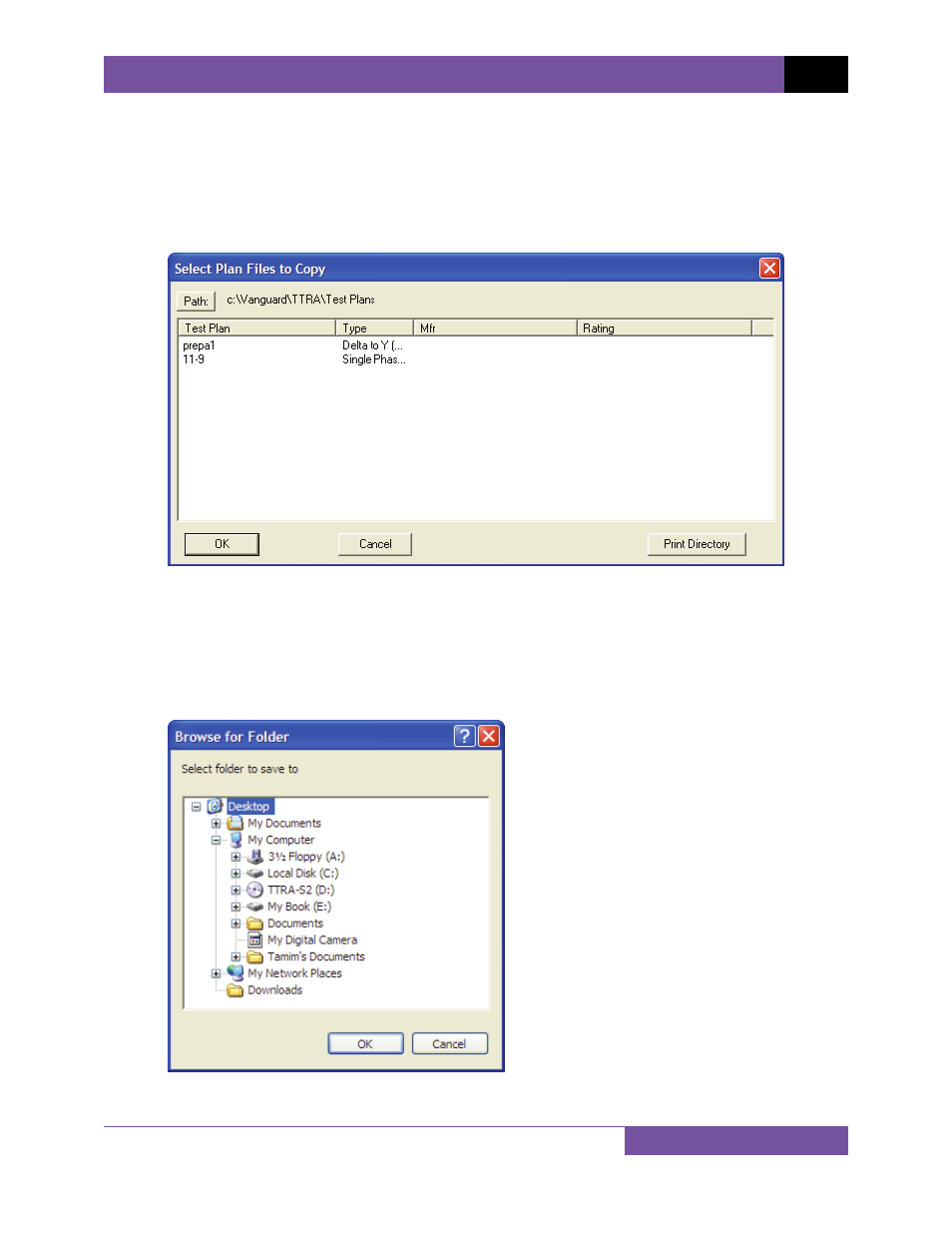

The following window will be displayed:
2. If the test plan you would like to copy is not in the current directory, click on the “Path:”
button at the top of the window and browse to the directory containing the file. Once
you have located the test plan to be copied, click on the filename. You may select
additional test plans by holding down the [CTRL] key and clicking on each subsequent
filename. Once you have selected the test plan(s) to be copied, click on the “OK” button.
The following window will be displayed:
