8 NETB/LINC Installation Instructions TG200632 Issue 1/C 15/11/06
NETB/LINC Installation Instructions
Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Ecublens, Route
du Bois 37,Switzerland by its Authorized Representative, Trend Control Systems Limited.
Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content
hereof without obligation to notify any person of such revisions or changes.
Trend Control Systems Limited
P.O. Box 34, Horsham, West Sussex, RH12 2YF, UK. Tel:+44 (0)1403 211888 Fax:+44 (0)1403 241608 www.trend-controls.com
Trend Control Systems USA
6670 185th Avenue NE, Redmond, Washington 98052, USA. Tel: (425)897-3900, Fax: (425)869-8445 www.trend-controls.com
19
Check LINC Operation
If LonWorks Internetwork (LINC address <100) If Internetwork LonWorks Extension (LINC address =>100)
LINC LINC
Lan
LonWorks
IQL LONC
or or
LINC LINC
Lan
LonWorks
IQL LONC
I/N
or or
terse text comms terse text comms
3.2 Installation - Configuration
(Continued)

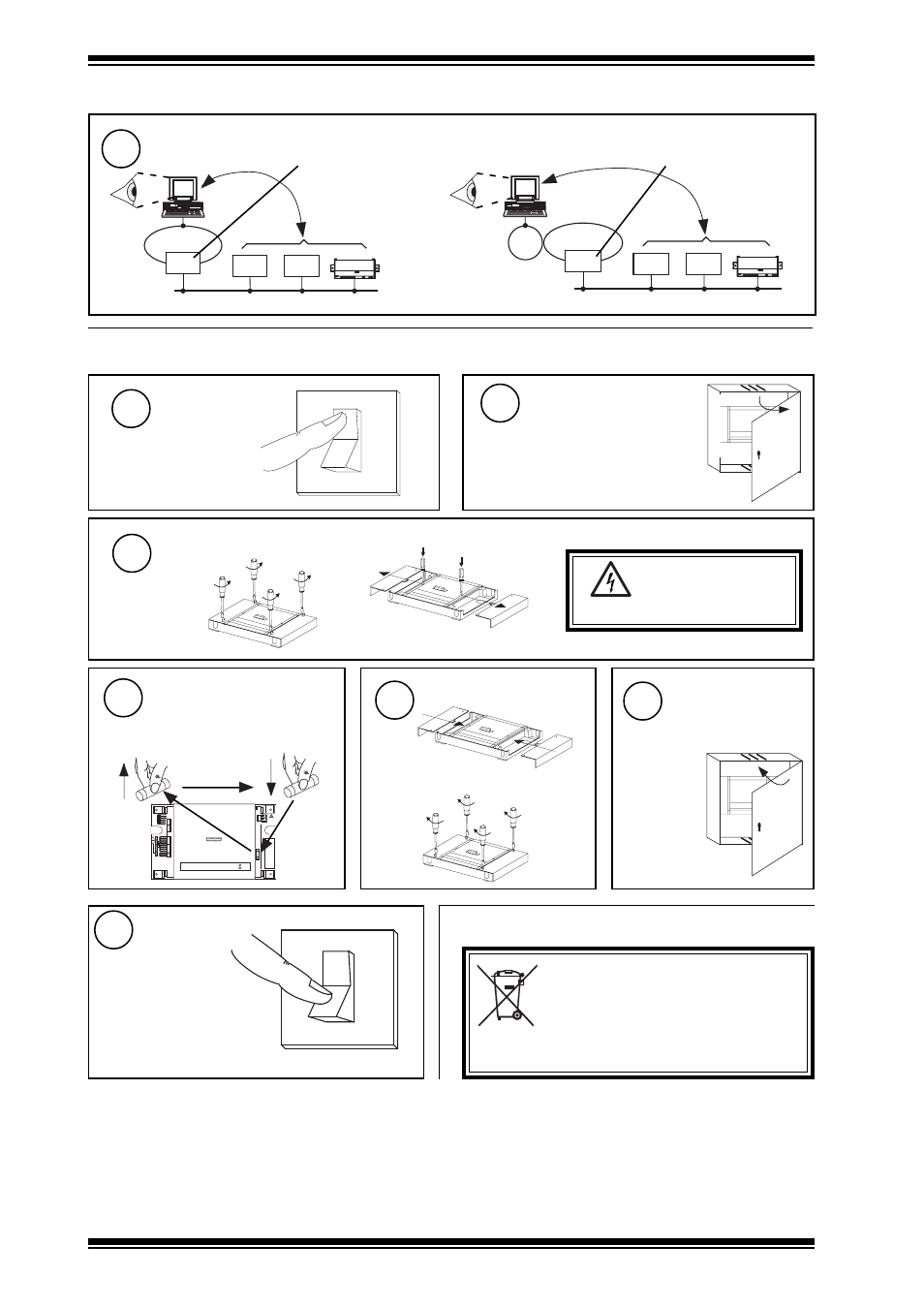

4 Replacing the Fuse
Switch off
1
O
I
Open Panel
2
NETB/LINC/FTT/24 only for
UL rating
Remove Side Covers
3
slide out
press down catches
WARNING:
Removal of the cover
exposes dangerous voltages.
417-IEC-5036
undo screws
5 Disposal
WEEE Directive :
At the end of their useful life the packaging,
and product, should be disposed of by a
suitable recycling centre.
Do not dispose of with normal household waste.
Do not burn.
The unit is UL rated as 'UL916,
accessory to open energy
management equipment.'
4
Replace Fuse
Fuse: 20 mm, (T) anti-surge
230 Vac: 50 mA
24 Vac: 630 mA
S C N S C N
T - T + R - R +
T - T + R - R +
N E
L ~ 2 3 0 V a c
T h i s u n i t m u s t b e e a r t h e d
LO N J 1 8
J 8
J 7
J 6
J 1 6 F S I
L o n A
L o n B S C N
L o n A
L o n B S C N
TR
E N D
N E TW
O R K
5 0 / 6 0 H z 1 8 V A
S U P P LY F U S E 5 0 m A (T )
L I N C
Replace Side Covers
5
slide in
replace screws
Switch On 7
O
I
6
Close Panel
NETB/LINC/FTT/24 only
for UL rating
The unit is UL
rated as
' U L 9 1 6 ,
accessory to
open energy
management
equipment.'
