Apply Markers
This procedure explains how to apply up-to-20 markers to frequencies of interest. Unlike peak
markers, these markers remain in place unless you manually re-assign them to a different
frequency. However, you can associate different measurements with the markers, and values
are automatically calculated and added to the tabular display.
1.
2. Touch the Peaks/Markers tab; the Peaks/Markers dialog opens.
3. Select Markers.
4. Choose which set of markers to View:
Set 5 Default Markers marks five frequencies spread evenly over the spectrum.
Set Markers on Peaks marks the peak amplitudes in the spectrum.
Set Markers on Harmonics marks the fundamental frequency and its harmonic
content.

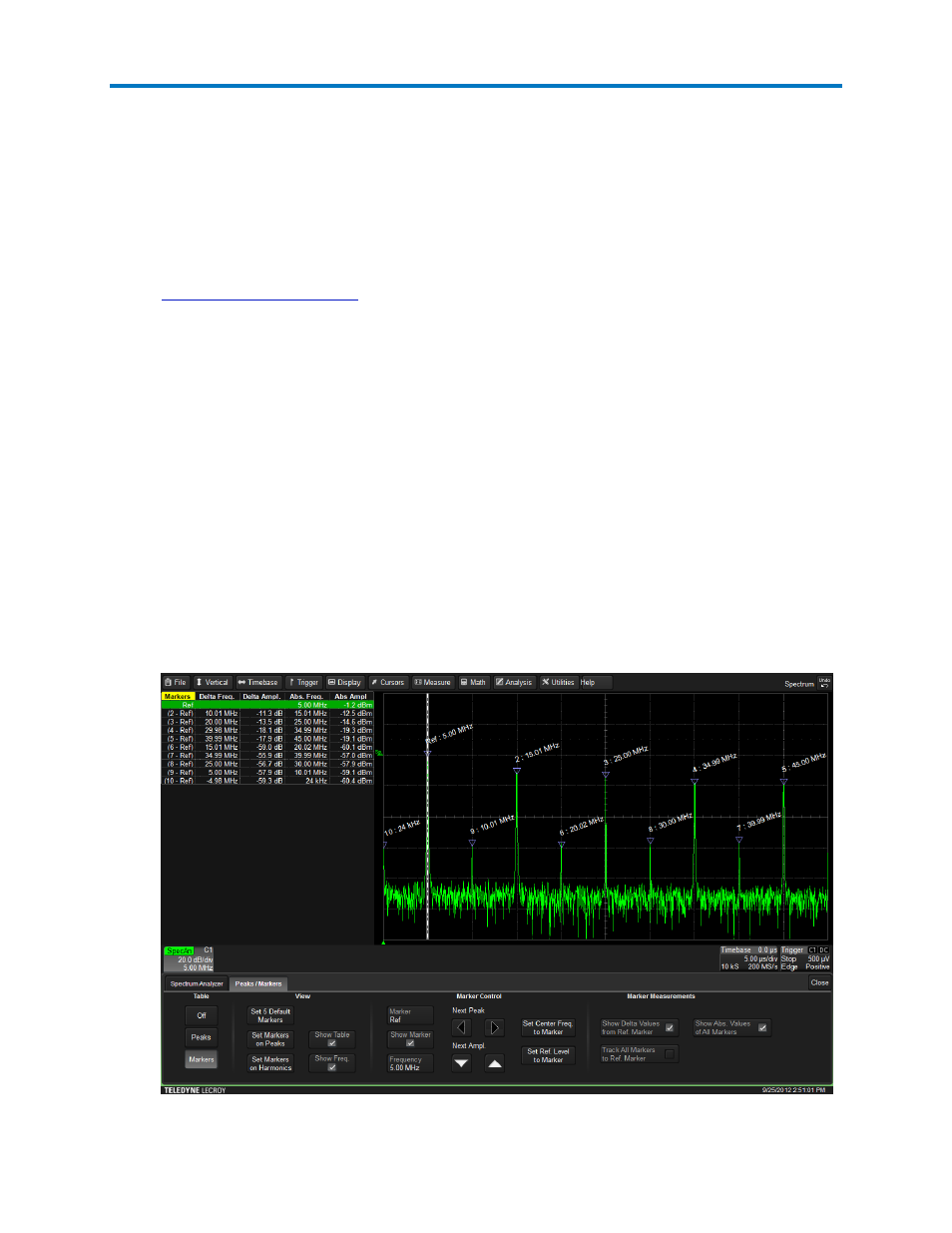

Blue, triangular markers appear over the trace. Marker 1 is always the Reference Marker,
also indicated by a thick, white cursor line. The default measurement is absolute
amplitude and frequency.
