14
QPHY-DisplayPort-OM-E Rev A
QPHY-DisplayPort Operation
After pressing Start in the QualiPHY menu, the software instructs how to set up the test using pop-up connection
diagrams and dialog boxes.

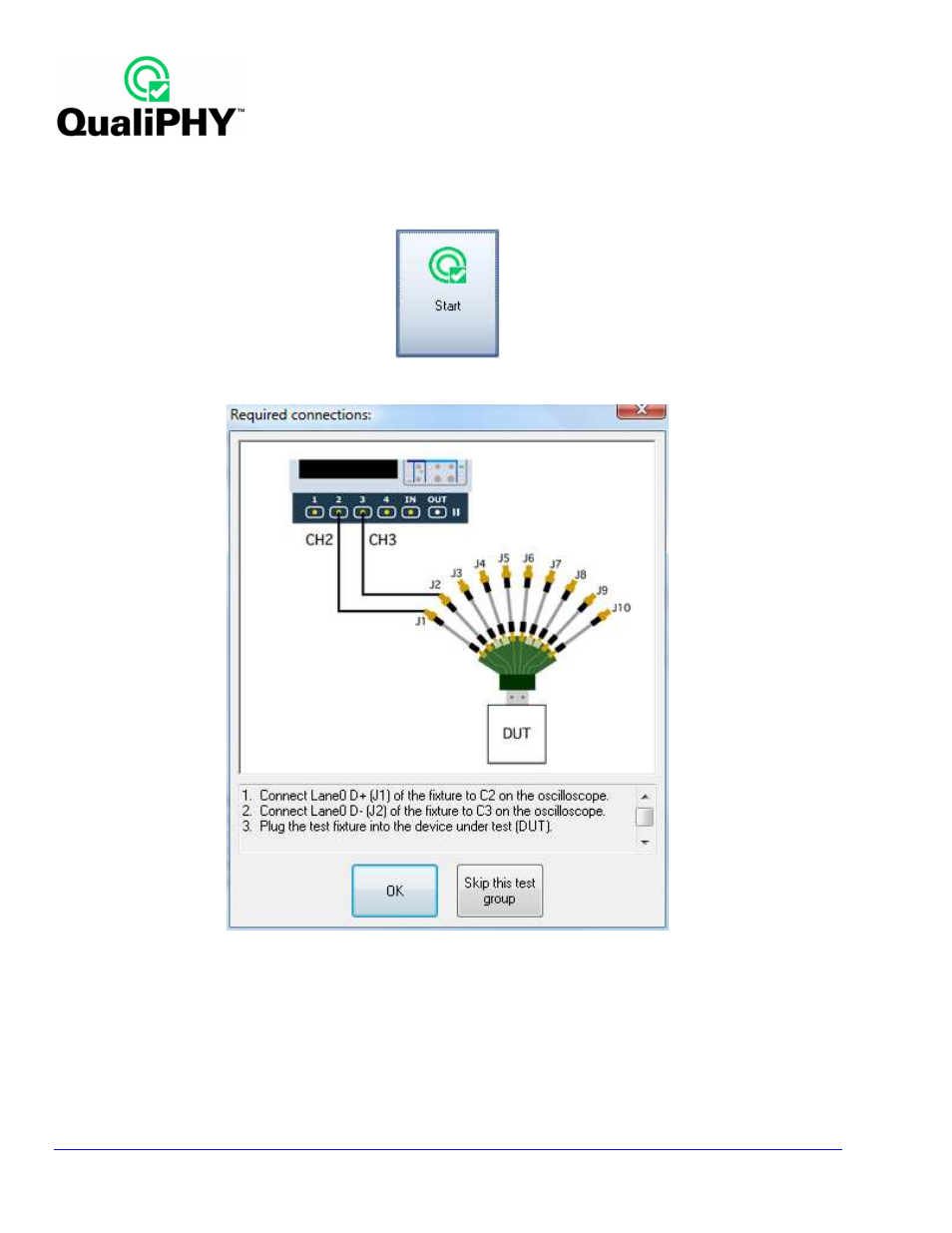

Figure 7. Start button
Figure 8. Example of pop-up connection diagram and dialog box
