QualiPHY tests the oscilloscope connection after clicking the Start button. The system prompts you if there is a
connection problem. QualiPHY’s Scope Selector function can also be used to verify the connection. Please refer
to the QualiPHY Operator’s Manual for explanations on how to use Scope Selector and other QualiPHY
functions.
Accessing the QPHY-DisplayPort Software using QualiPHY
This topic provides a basic overview of QualiPHY’s capabilities. Please refer to the QualiPHY Operator’s Manual
for detailed information.
Access the QPHY-DisplayPort software using the following steps:
1. Wait for the oscilloscope to start and have its main application running.
2. Launch QualiPHY from the Analysis menu if installed on the oscilloscope or from the desktop icon if installed
on a host computer.
3. From the QualiPHY main window (as follows), select Standard, then DPORT from the pop-up menu (if not
already selected). If you check the Pause on Failure box (circled) QualiPHY prompts to retry the measure
whenever a test fails.

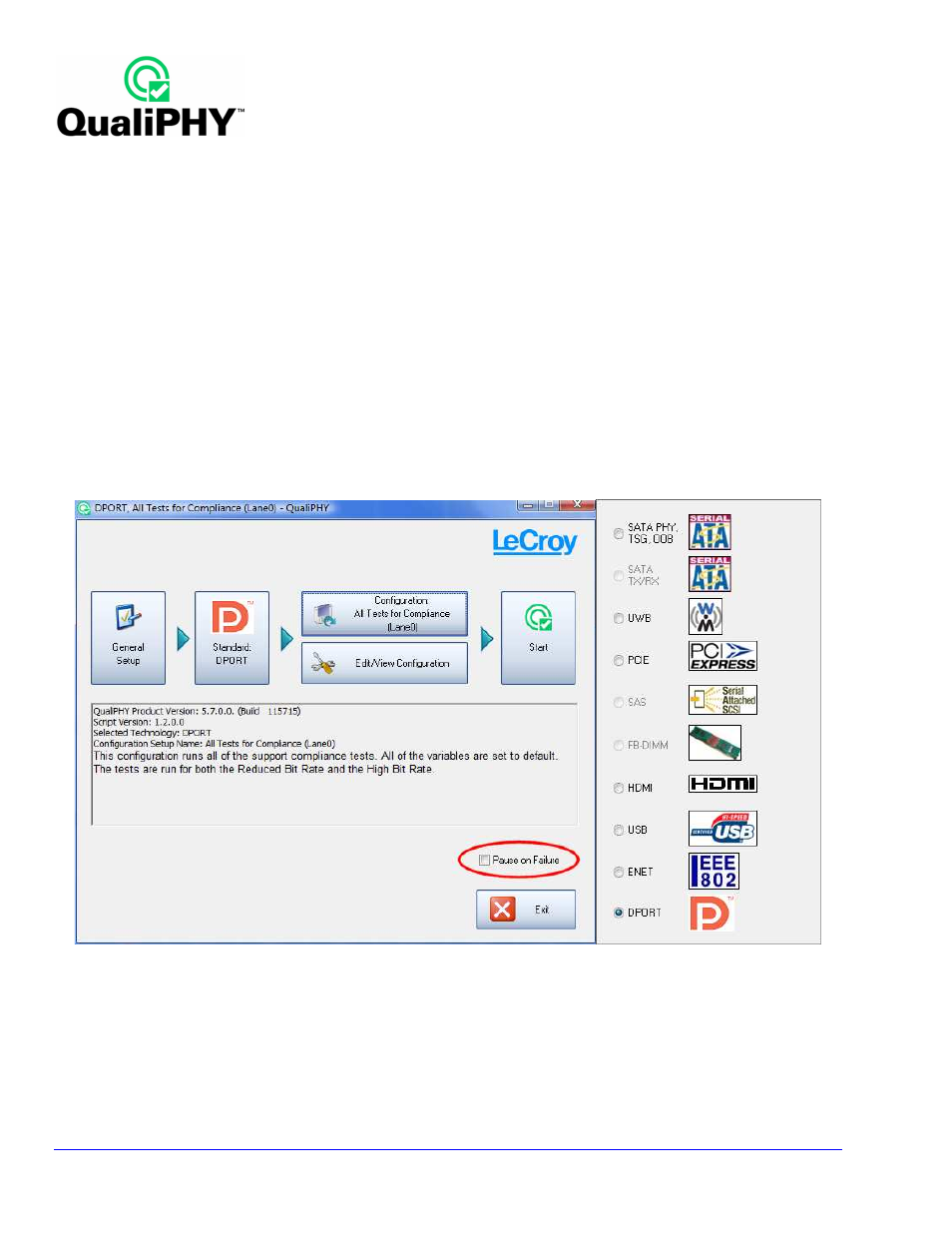

Figure 3. QualiPHY main menu and compliance test Standard selection menu
