Setting Up the Histogram

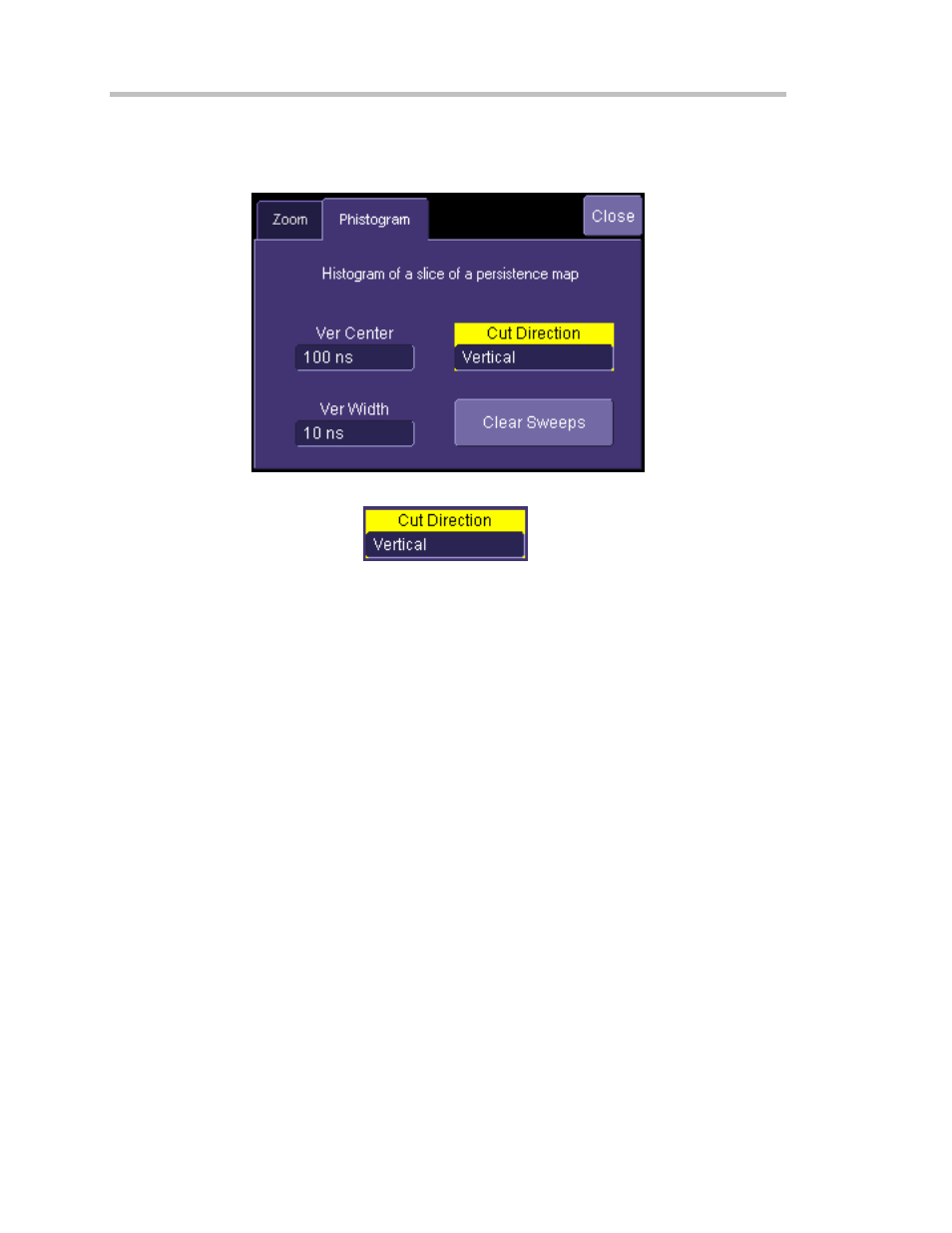

The mini-dialog contains setup fields for your histogram.

Selecting the Cut

Touch inside the Cut Direction field

and select either Vertical or

Horizontal. If you choose to cut a vertical slice, the units of the center and width of the slice are
given in nanoseconds. If you choose a horizontal cut, the units of the center and width of the slice
are given in millivolts.
